OEM / ODM ： Precision Injection Molding & Instrument PN-2044 (1*4) No.21072-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | CWM21072 Instrument PN-2044 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 102kg | Standard | LKM |
| Injection/Runner Type | Cold Runner | Mold Base | Standard Mold Base CI2025.507070 |
| Part Material | TPEE | ||
| High Light | Instrument PN-2044 Two Plates Mold,Precision Injection Molding 100T |
||
Product Description
Instrument PN-2044 (1*4)
No.21072-B

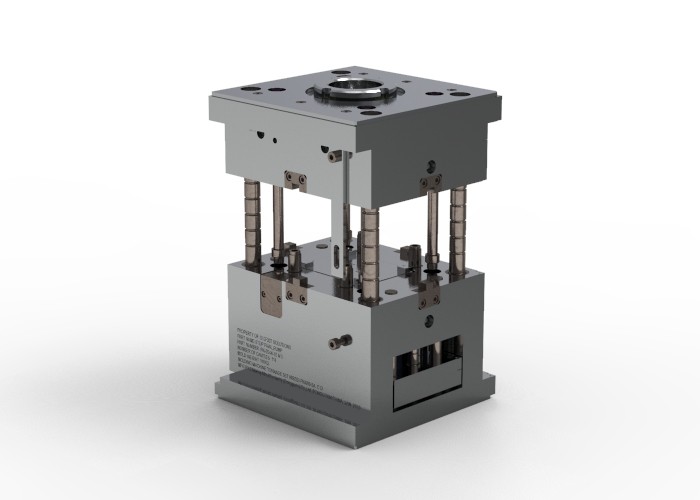

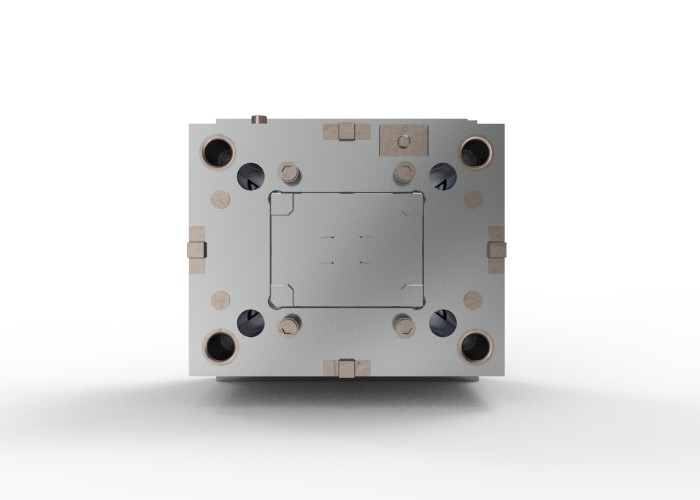

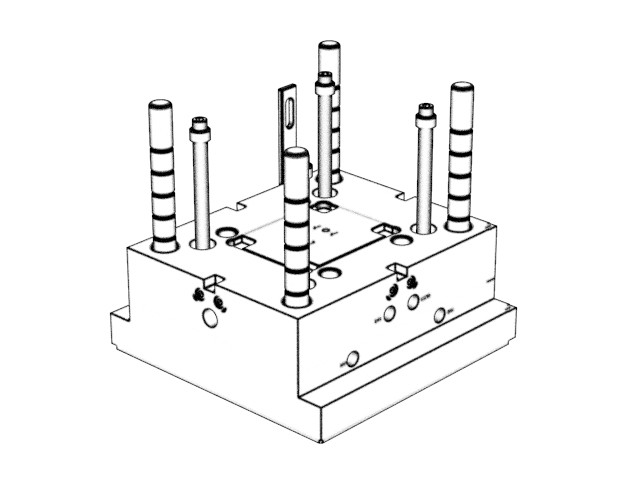

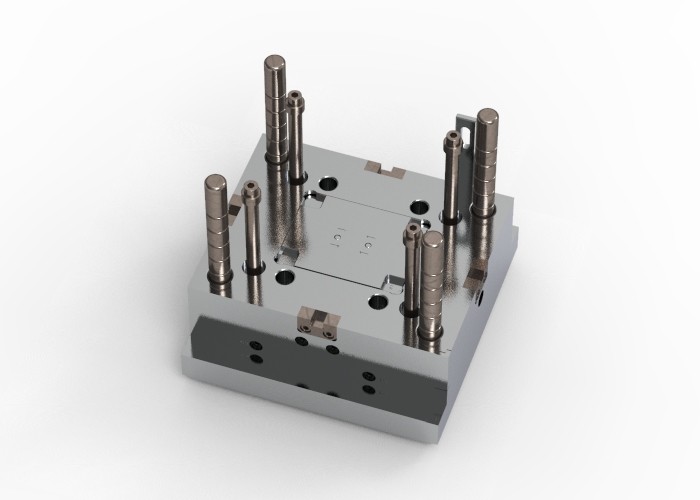

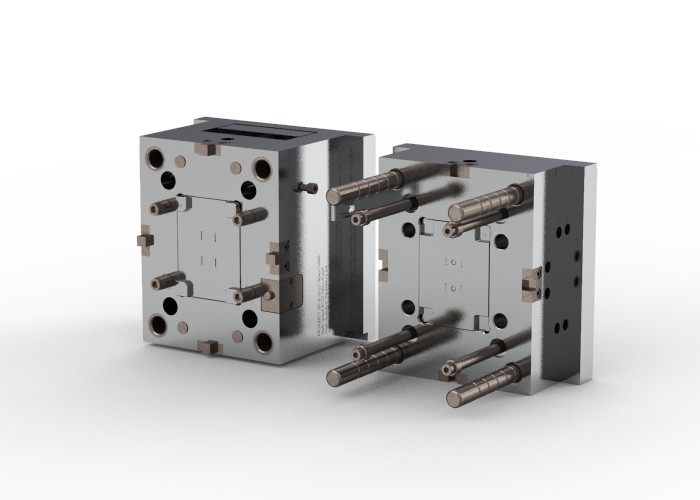

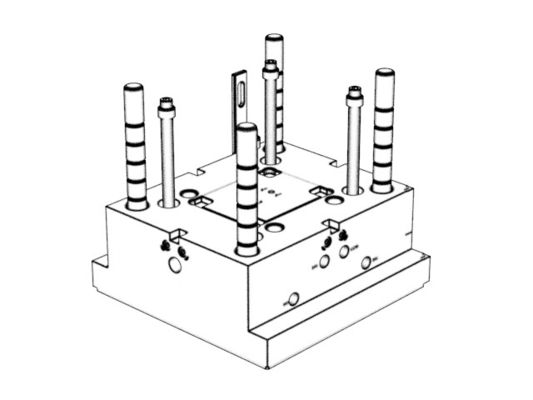

| This product utilizes a standard mold base (CI2025.507070) adhering to the LKM standard. The mold has dimensions of [Length] 250mm, [Width] 250mm, and [Height] 251mm. It features a cashew gate, which is suitable for TPEE material with good toughness and allows for self-degating. The mold is a two-plate design with a simple structure and easy operation, making it suitable for automatic demolding. It minimizes failures, has a long tool life, short cycle time, and low cost. The tool life is rated for 500k shots. The cavity and core of the mold are made of hardened steel (1*4/S136), and the surface finish is polished to SPI-B1 standard. |

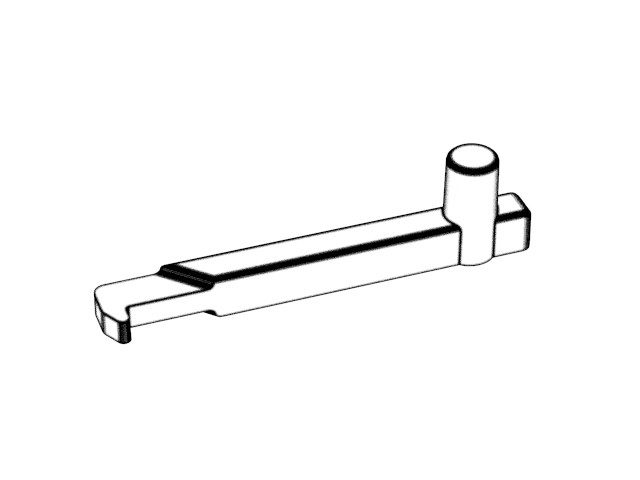

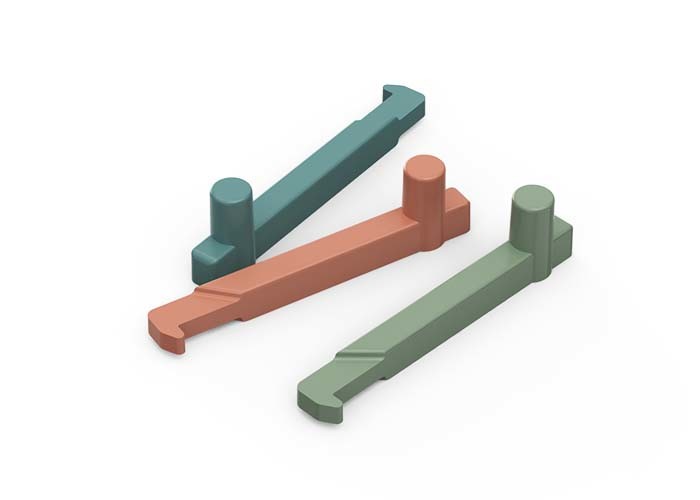

| product utilizes a cold runner system for. typerunner/ injection The mold has a weight of 102 kg and requires a 100T injection molding machine (IMM) tonnage. The injection part has a weight of 0.01g and is made of TPEE material. The injection part size measures 1.64 X 10.37 X 2.65mm. |
Display diagram
