OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-2044 (1*4) No.21072-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | CWM21072 Instrument PN-2044 -B |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 102kg | Standard | LKM |
| Design Software | <3D:UG 4.0>/ <2D:CAD> | Mould Life | 500，000 Shots |
| Runner | Cold Runner | Gate | Cashew Gate |
| High Light | Transparent Instrument Two Plates Mold,Transparent Instrument Precision Injection Molding |
||
Product Description
Transparent Instrument PN-2044 (1*4)
No.21072-B

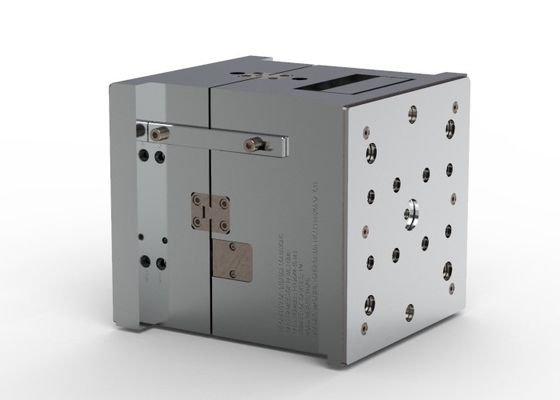

| This product utilizes a standard mold base (CI2025.507070) adhering to the LKM standard. The mold has dimensions of [L] 250mm, [W] 250mm, and [H] 251mm. It has a weight of 102 kg and requires a 100T injection molding machine (IMM) tonnage. The gate used is a cashew gate, which is suitable for TPEE material with good toughness and allows for self-degating. |

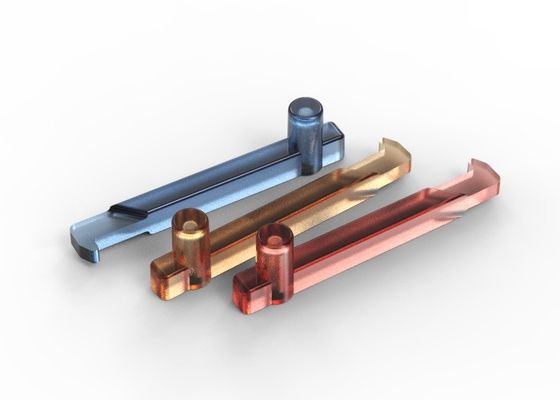

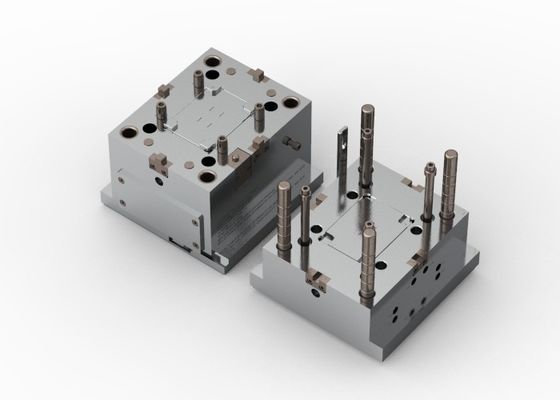

| This product utilizes a cold runner system for injection/runner type. It is a two-plate mold with a simple structure and easy operation, meeting the requirements of automatic demolding. The mold is designed to minimize failures, have a long tool life, short cycle time, and low cost. The injection part is made of TPEE material and has a weight of 0.01g. The part size measures 1.64 X 10.37 X 2.65mm. |
| The cavity of this product is made of hardened steel (1*4/S136), as well as the core. The surface of the mold is polished to SPI-B1 standard. The polishing and hardening processes improve the hardness, anti-wearing, anti and-corrosion performance of the mold. The tool life is rated up to 500k shots. |

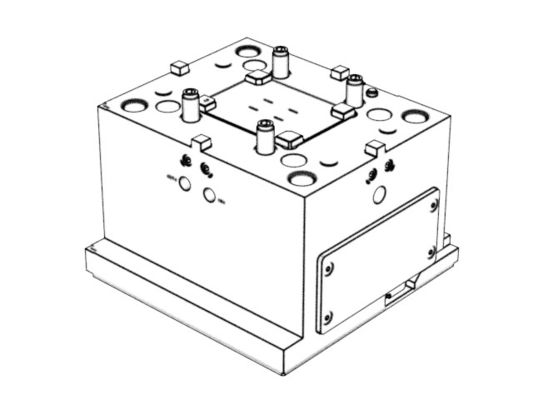

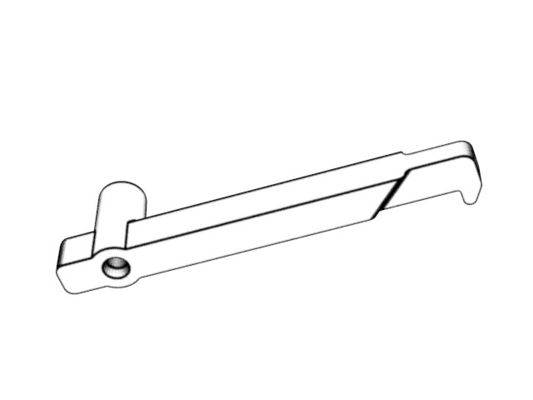

Display diagram
