OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-1822 (1*2) No.21073-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | CWM21073 Instrument PN-1822 -B |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 266.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 99kg | Mold Base | Standard Mold Base CI2025.507070 |
| Standard | LKM | Slide | 1 |
| Type | Two-plates Mold | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | ≥500000 Shots | ||
| High Light | Transparent Instrument Two Plates Mold,Transparent Instrument Precision Injection Molding |
||
Product Description
Transparent Instrument PN-1822 (1*2)
No.21073-B

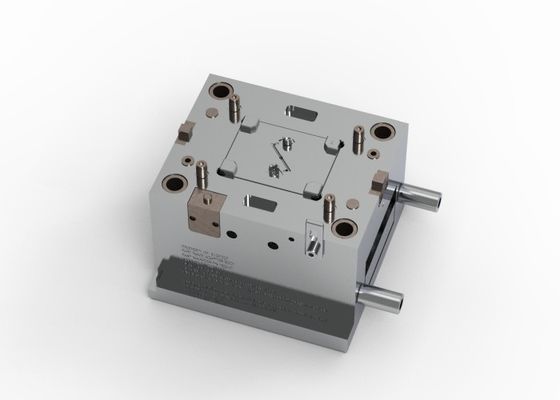

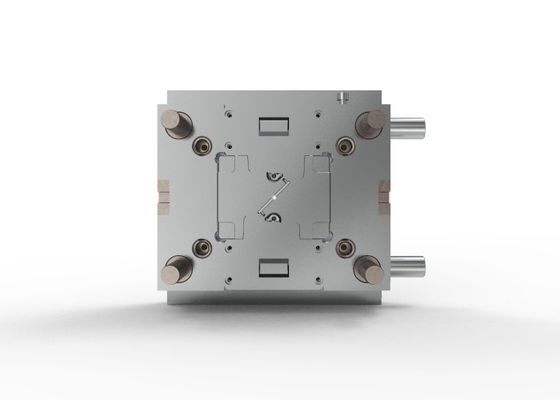

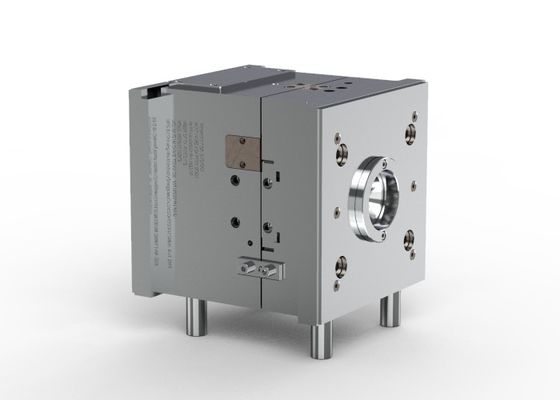

| This product utilizes standard a mold base (CI2025.507070) adhering to the LKM standard. The mold has dimensions of [L] 250mm, [W] 250mm, and [H] 266mm. It features 1 slide and has a net weight of 99 kg. |

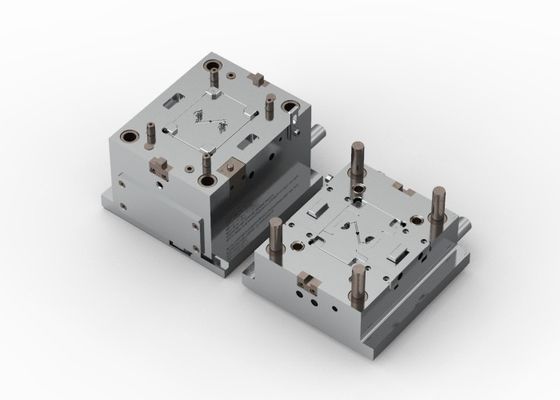

| This product is a two-plate mold with a cashew gate and utilizes a cold runner system. It requires a 100T injection molding machine (IMM) tonnage. The cavity and core of the mold are made of hardened steel (1*2/S136). The surface finish of the mold is as follows: 1.Partial surfaces are polished to SPI B-2 standard. 2.Partial surfaces are polished with MT11003 (RMS 60). 3.Partial surfaces are polished to SPI B-1 standard. 4.Partial surfaces are polished to SPI A-2 standard |

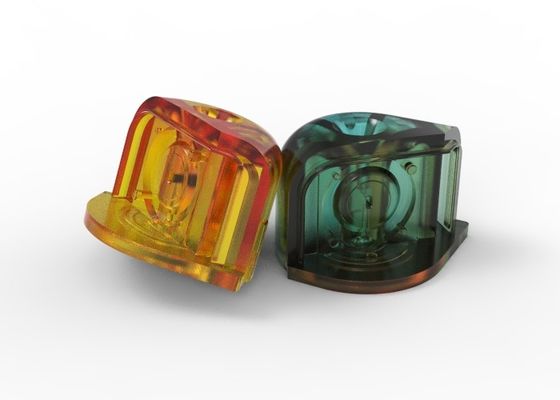

| The injection part is product this of made of PC material, with a net weight of 1.36g. The part size measures 15.87x19.02x11.93mm. The tool life of the mold is rated for 500k shots. |

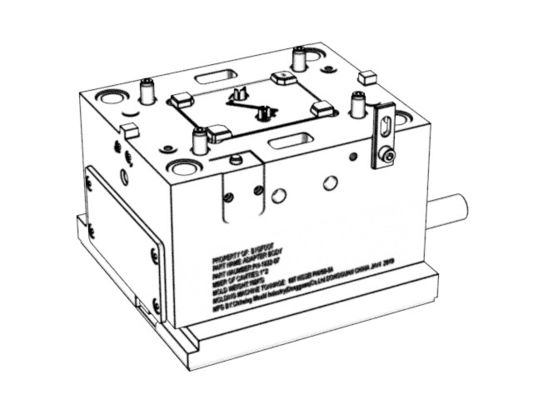

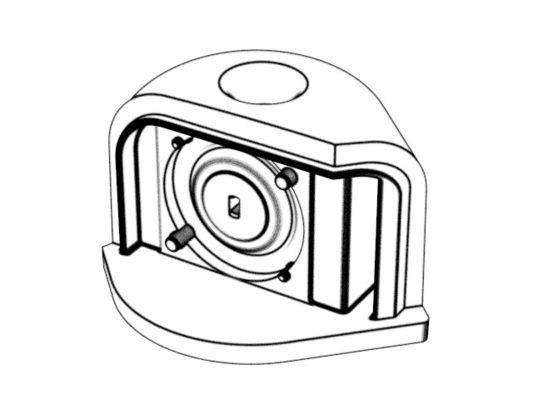

Display diagram
