OEM / ODM ： Precision Injection Molding & Transparent Battery Cover No.21776-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 400 X 386 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 350kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | ≥500000 Shots | Runner | Cold Runner |
| Gate | Sub Gate | ||
| High Light | Transparent Battery Cover Injection Molding,Battery Cover Precision Injection Molding,Sub Gate Precision Injection Molding |
||
Product Description

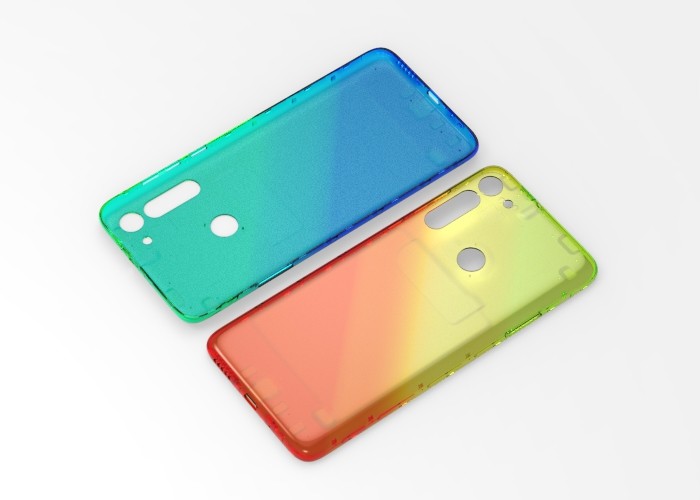

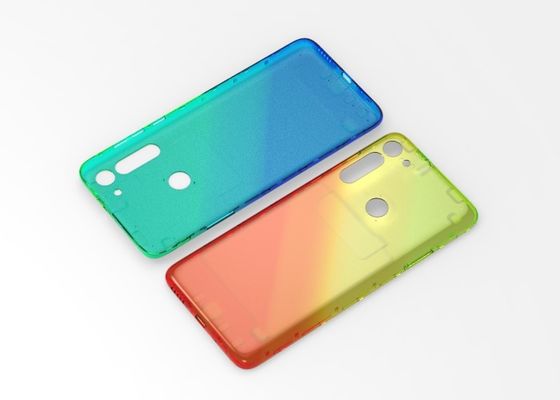

Transparent battery cover (1*1)
No.21776-B

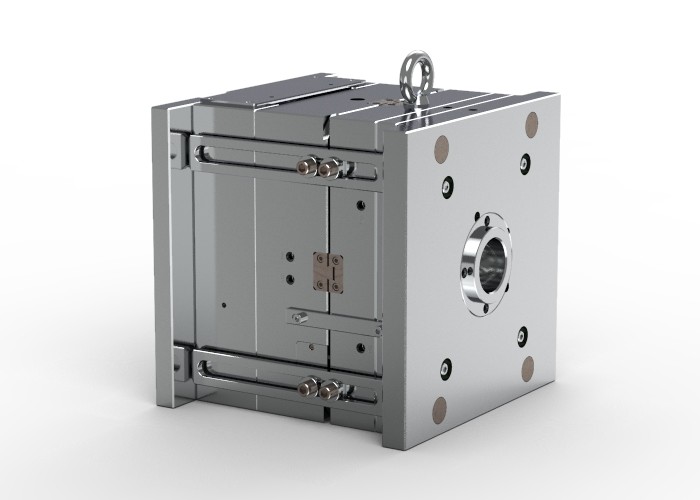

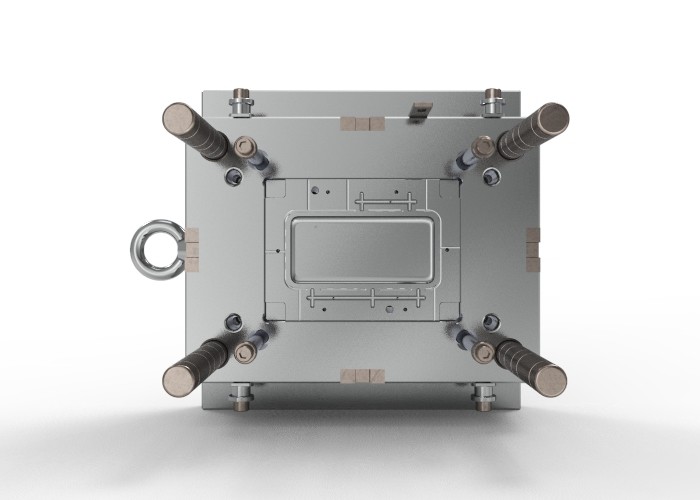

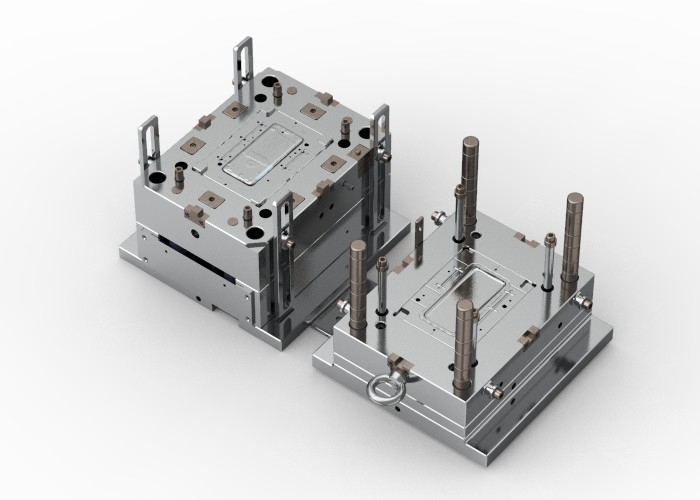

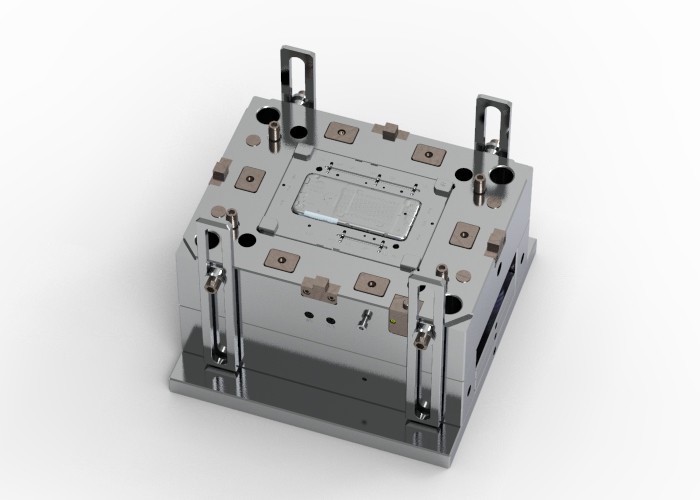

| IntroductionThe mold is designed with a base mold standard (FCI3040.70110100) and a cold runner. It has a size of 400 X400 X 386mm and a net weight of350 kg. The molded part produced this by mold has minimized gate marks and a smooth surface without burrs, meeting the LKM. standard It is a three-ers lift17 with moldplate and is suitable for use with a 110T machine. The part weighs 15g and has a size of 161.27 X 75.80 X 7.30mm. |
| Cavity | Core |
| Harden (1*1/S136) |
Harden (1*1/S136) |
| IntroductionThe green surface of the mold is polished to 800# sandpaper, giving it a smooth and polished finish. The secondary surface (core) is EDM with27DI V#, ensuring precision and accuracy. The surface of the antenna is EDM V withDI18 providing#, a high-quality finish. The mold features a sub gate design, allowing for efficient and precise molding. The part material used is PC, which offers excellent strength and durability. The tool life of the mold is up to 500k shots, ensuring-lasting long performance. Additionally, the mold is aesthetically pleasing, moderate in size, and easy to store. |

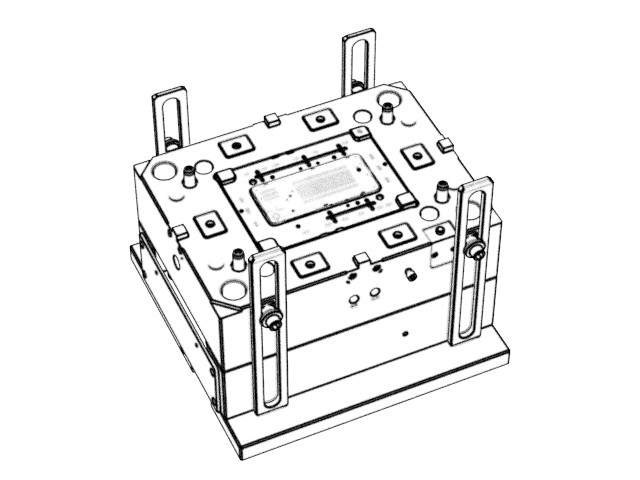

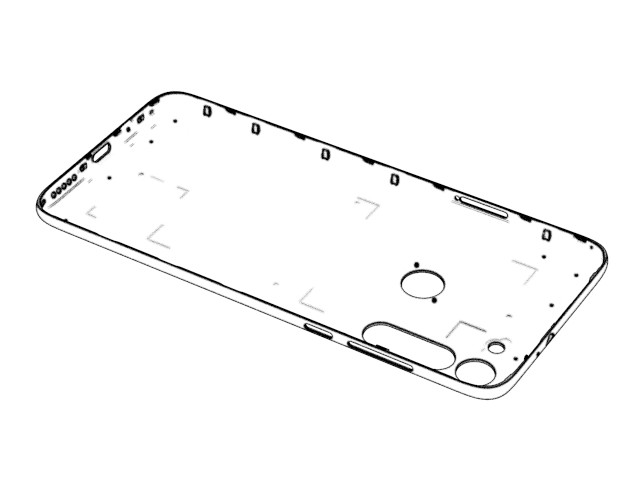

Display diagram
