OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Front Cover (1*1) No.21869-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 13 Lifters | Size | 300.000 X 300.000 X 281.000 |
|---|---|---|---|
| IMM Tonnage | 110T | Mold Weight | 152kg |
| Standard | LKM | Mold Base P/N | CI2530 609080 |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Life | ≥500000 Shots |
| Part Material | PC | Type | Two-plates Mold |
| High Light | Transparent Clamshell Phone Cover Molding,Two Plates Precision Injection Molding |
||
Product Description
Transparent Clamshell
Phone Front Cover (1*1)
No.21869-B
Part details:

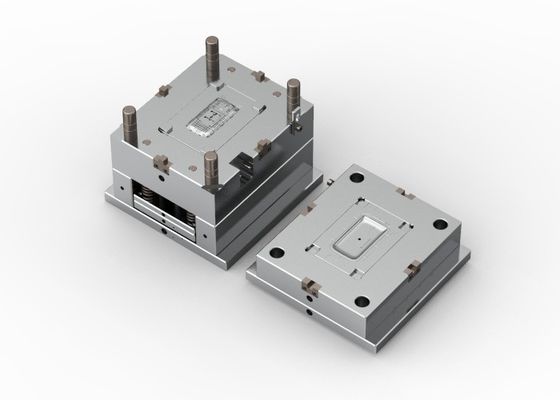

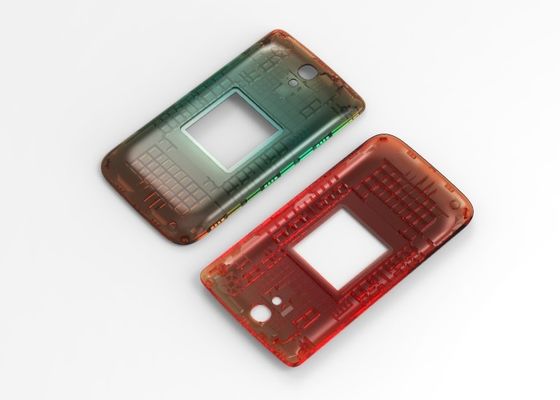

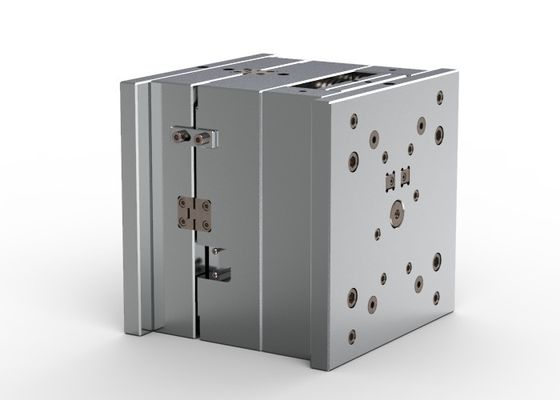

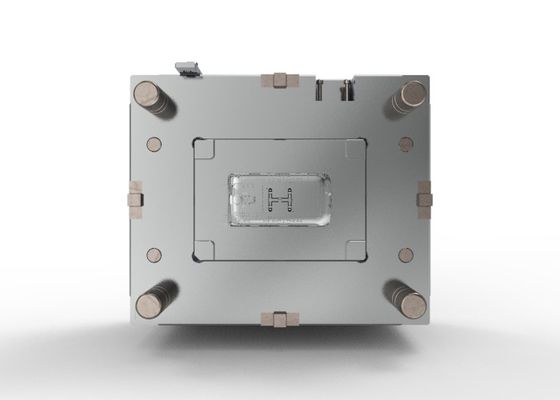

| This product is a two-plate mold with a size of 300X300X281mm. It has a weight of 152kg and uses a mold base with part number CI2530 609080 The. mold is made according to LKM standard. It requires an injection molding machine with a tonnage of 110T. The gate design is a submarine gate. The mold has a tool life of 500K shots. The injection part is made of PC material, with a size of 55.6X6.23X103.98mm and a weight of 8.7g. It also features 13 lifters. |
|

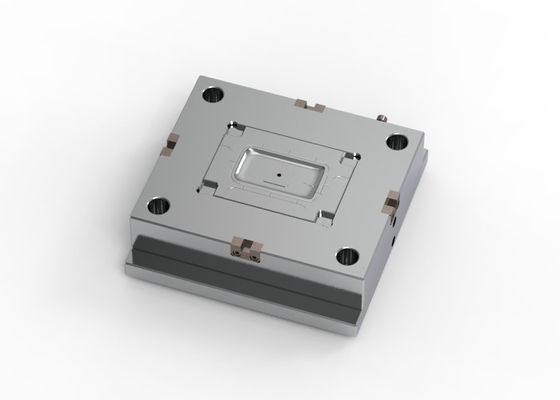

The surface finish of this product is achieved through A surface V with EDMDI27# to improve rough theness and make the molded part smoother. The high glossiness of the surface prevents the part from sticking to the mold, allowing for smooth demolding. The cavity and core of the are mold made of hardened steel (1*2/S136). S136 is a plastic mold steel known for its excellent corrosion resistance, excellent partition characteristics, good comprehensive mechanical properties, and high polishing performance. |
| Injection/runner type: | Cold runner |

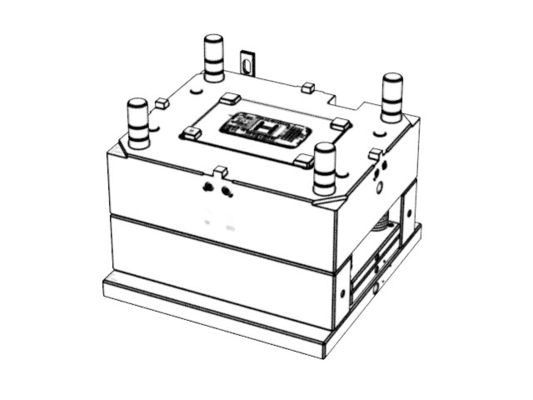

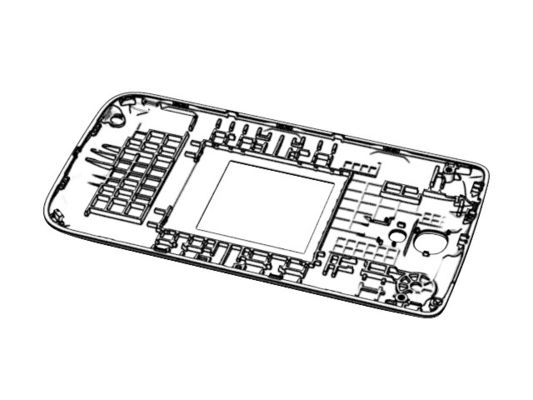

Display diagram
