OEM / ODM ： Precision Injection Molding & Clamshell Phone Front Shell (1*1) No.21871-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 450.000 X 401.000 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 390kg | Standard | LKM |
| Type | Three-plates Mold | Gate | Side Gate |
| Steel Of Cavity & Core | Harden (1*2/S136) | Injection/runner Type | Cold Runner |
| Slide | 6 | Lifter | 10 |
| High Light | 3 Plates Precision Injection Molding,Phone Front Shell Injection Molding |
||
Product Description
Clamshell Phone Front Shell (1*1)
No.21871-B
|

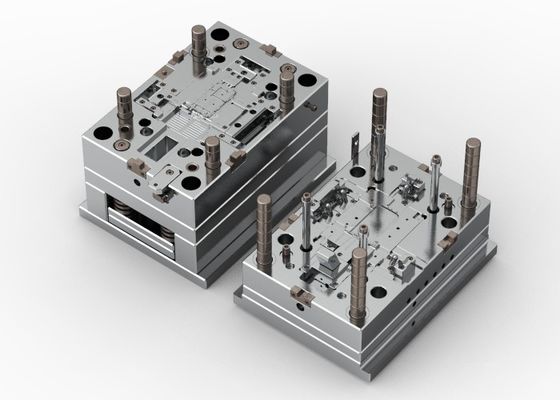

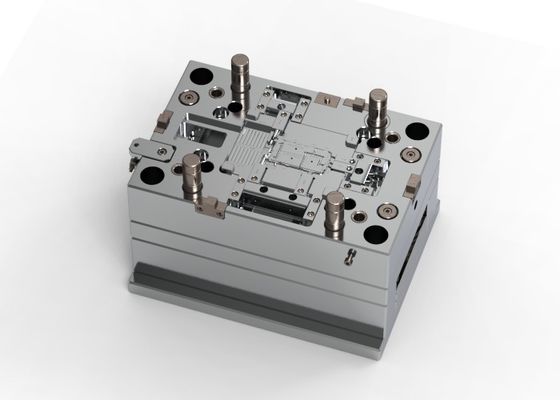

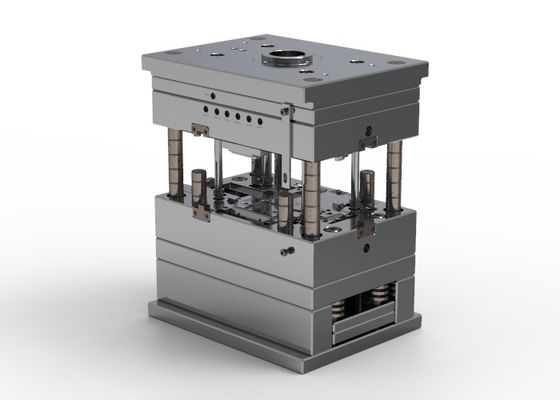

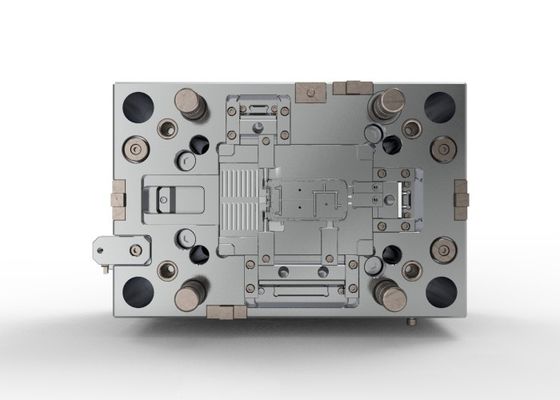

This is a three-plate mold manufactured by LKM. The mold base part number is DDI3045 709090 and the overall size is 350x450x401mm. The mold is designed for a minimum tool life of 500,000 shots. It features a side pinpoint gate that turns into a side gate to fill the cavity. The mold weighs approximately 390kg.
|
|
The cavity and core have undergone hardening treatment (1*2/S136) for increased wear resistance. The mold utilizes a cold runner injection/runner system. It is rated for an injection molding machine tonnage of 110 tons.
|
|

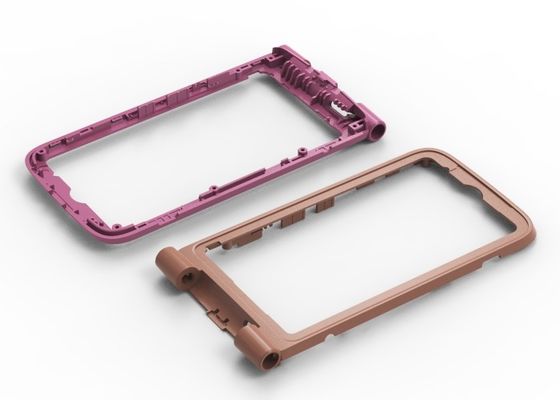

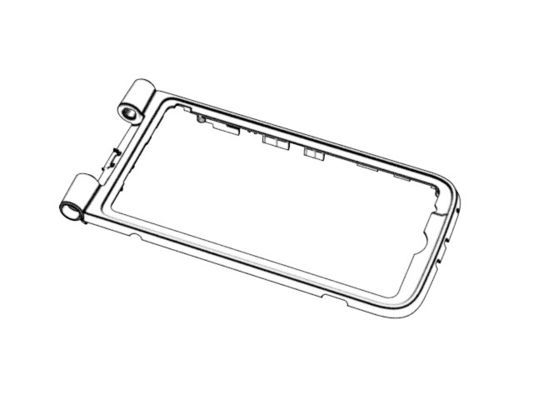

The mold is designed to produce parts measuring 55.55x11.24x108.75mm and weighing 5 grams per part. The entire mold surface, including the cavity and core, has undergone A surface EDM finishing with VDI24# roughness. This results in a smoother mold surface, molded parts with less flow marks and gas marks.
|

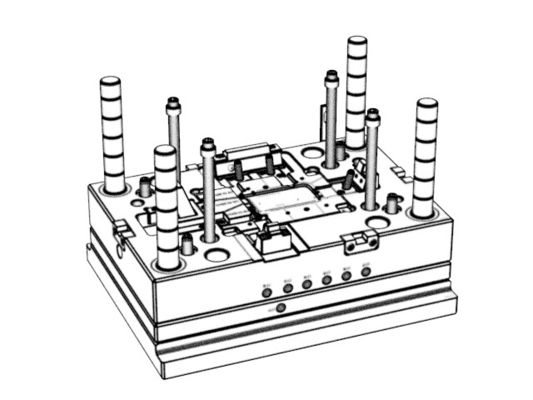

Display diagram
