OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Front Cover (1*1) No.21871-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 450.000 X 401.000 | IMM Tonnage | 110 T |
|---|---|---|---|
| Mold Weight | 390kg | Type | Three-plates Mold Structure |
| Slide | 6 | Lifter | 10 |
| Surface Finish | VDI24# | ||
| High Light | Phone Front Cover 3Plates Mold,Phone Front Cover Injection Molding |
||
Product Description

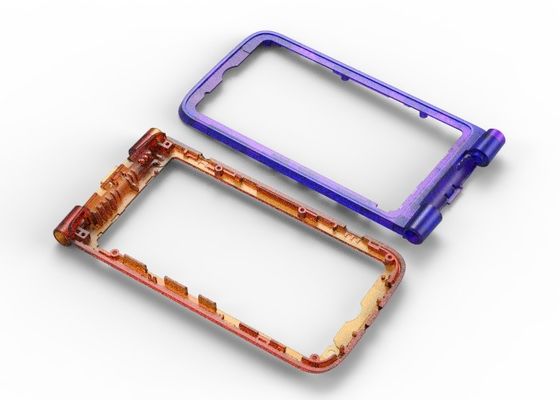

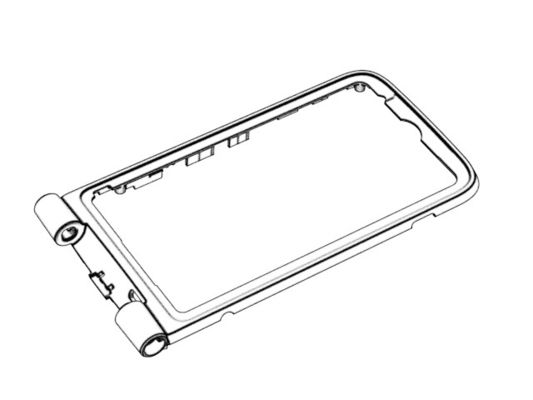

Transparent Clamshell Phone Front Cover (1*1)
No.21871-B

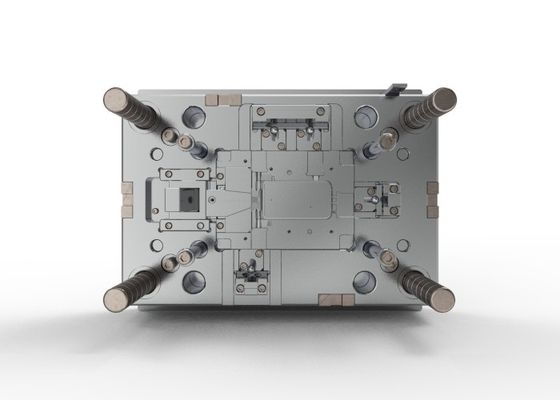

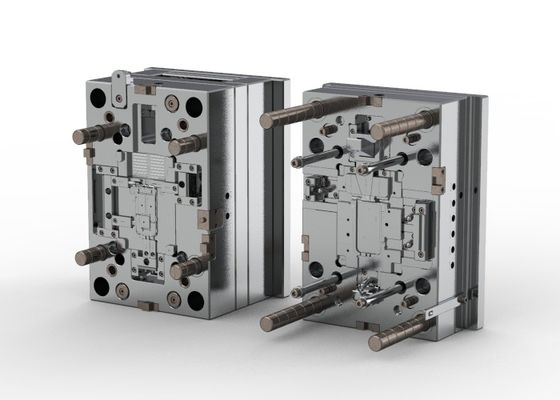

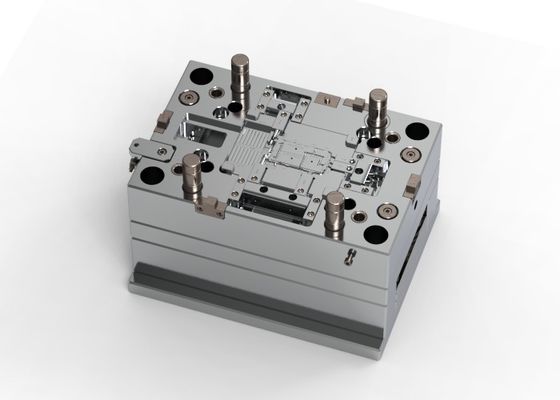

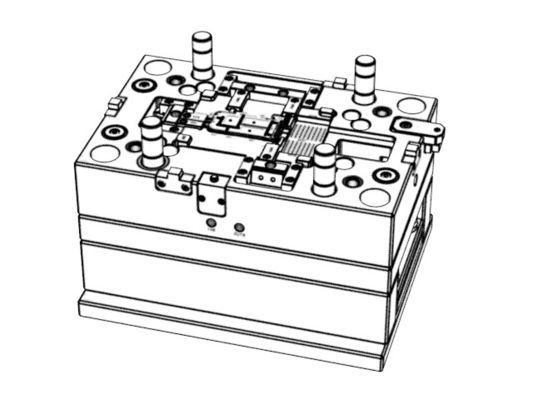

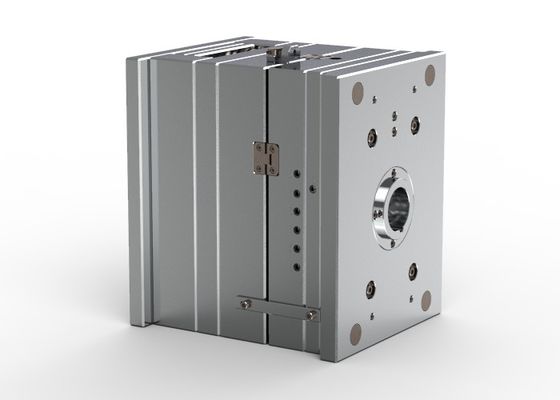

| This three-plates mold, with a mold base P/N DDI3045 709090 and manufactured according to LKM mold standard, is designed with dimensions of 350x450x401mm and weighs 390kg. It has a remarkable tool life of at least 500,000 shots, ensuring long-lasting performance. |
| To enhance the quality of the molded parts, the mold features a side gate, replacing the pin point gate, for improved functionality. The surface finish of the mold is achieved through A surface EDM with VDI24#, resulting in a smoother mold surface and molded parts without flow marks or gas marks. The steel used for the cavity and core is hardened (1*2/S136), ensuring durability and precision. |
| With a cold runner injection/runner type and an injection part size of 55.55x11.24x108.75mm, this mold is suitable for an injection molding machine with a tonnage of 110T. The injection part weighs 5g, making it ideal for various applications. |
Display diagram
