OEM / ODM ： Precision Injection Molding & Transparent Clamshell Phone Back Cover (1*1) No.21872-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides And 1 Lifter | Size | 350.000 X 350.000 X 331.000 |
|---|---|---|---|
| Mold Weight | 254kg | Surface Finish | VDI27# |
| Design Software | 3D-UG 4.0/ 2D-CAD | Mould Life | ≥500000 Shots |
| High Light | Phone Back Cover 3Plates Mold,Transparent Phone Cover Injection Molding |
||
Product Description
Transparent Clamshell Phone Back Cover (1*1)
No.21872-B

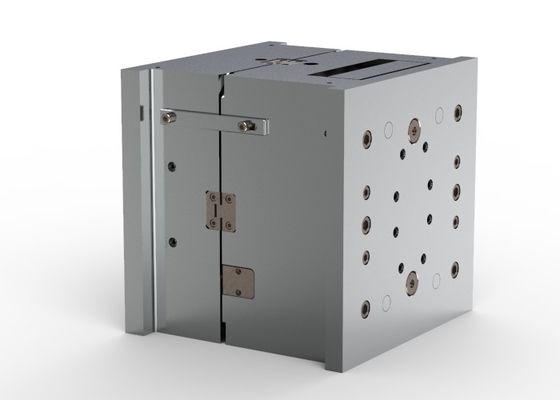

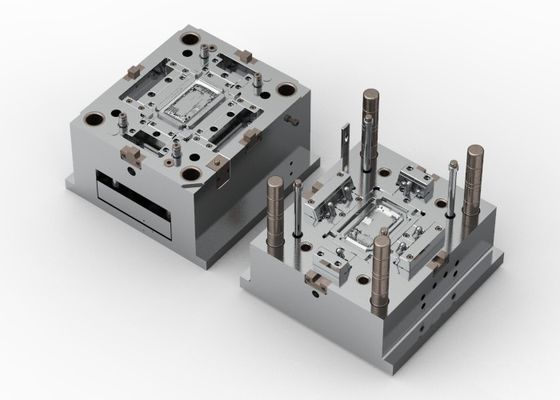

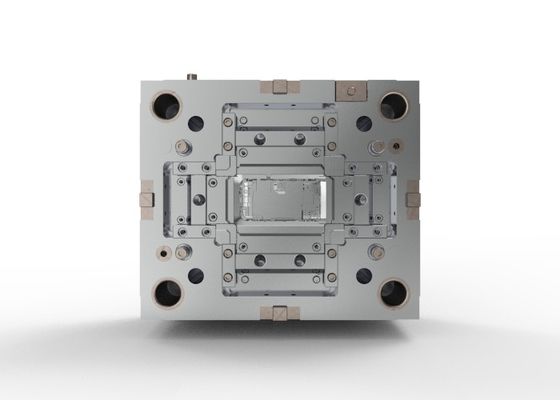

| This three-plates mold, manufactured according to the LKM mold standard with the mold base P/N FCI3035 609080, offers exceptional performance and versatility. With a compact size of 350350331mm and a net weight of 254kg, it is suitable for a wide range of applications. |

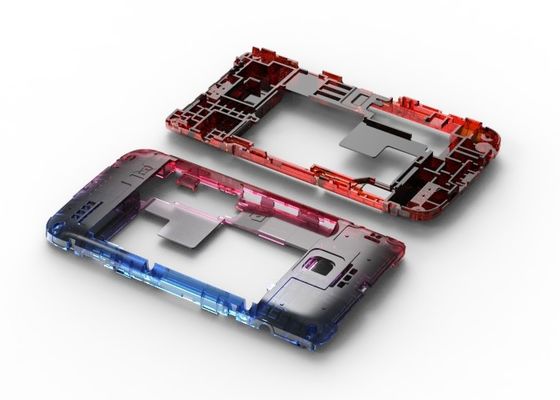

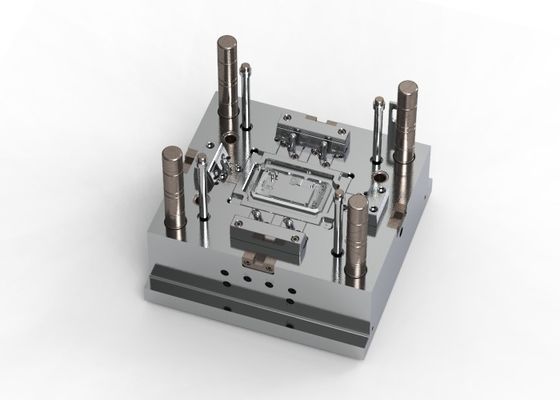

| The mold features a pin point gate for precise injection control and is constructed with hardened steel (1*1/S136) for durability and high-quality molded parts. With a recommended IMM tonnage of 110T, this mold ensures exceptional precision in producing parts. Additionally, it undergoes A surface EDM with VDI27# for superior surface finish. Equipped with 4 slides and 1 lifter, it enables efficient production of complex part designs. The injection part, made from PC material, weighs 8.3g and has dimensions of 53.62X8.09X101.85mm. |

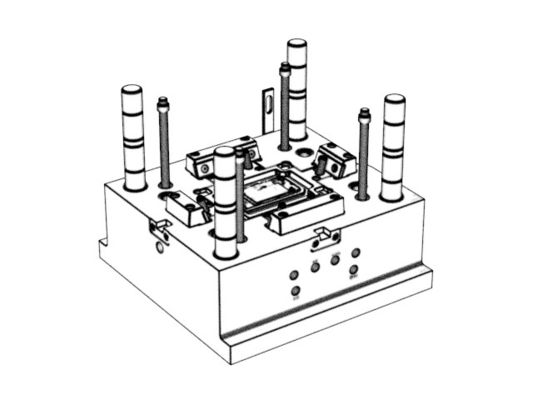

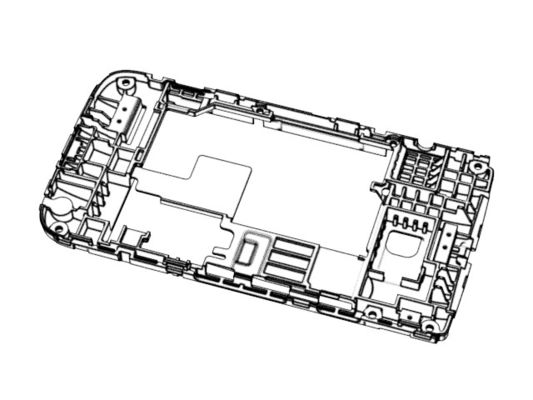

Display diagram
