OEM / ODM ： Precision Injection Molding & Clamshell Phone Back Cover (1*1) No.21872-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 X Slides And 1 X Lifter | Size | 400 X 450 X 421mm |
|---|---|---|---|
| IMM Tonnage | 110（T） | Mold Weight | 254（kg） |
| Mold Base P/N | FCI3035 609080 | Part Material | PC |
| Part Weight | 8.3g | Standard | LKM |
| Type | Three-plates Mold | Gate | Pin Point Gate |
| High Light | Phone Cover Three Plates Mold,Phone Cover Precision Injection Molding |
||
Product Description
Clamshell Phone Back Cover (1*1)
No.21872-B

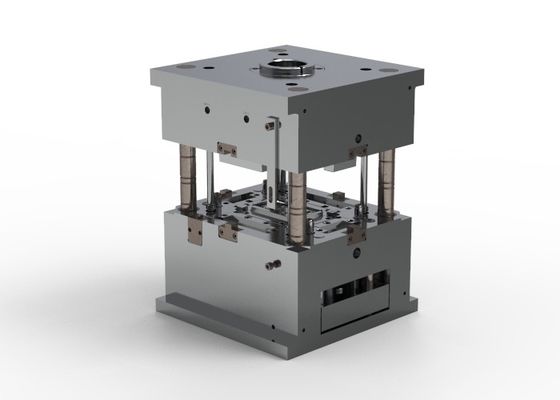

| This three-plates mold, with a mold base P/N FCI3035 609080, is manufactured according to the LKM mold standard. It has a compact size of 350x350x331mm and a net weight of 254kg, making it suitable for various applications. |
| The mold features a pin point gate, which allows for precise control of the injection process. The cavity and core of the mold are made of hardened steel (1*1/S136), ensuring durability and high-quality molded parts. With an injection molding machine tonnage of 110T, this mold is capable of producing parts with excellent precision. |

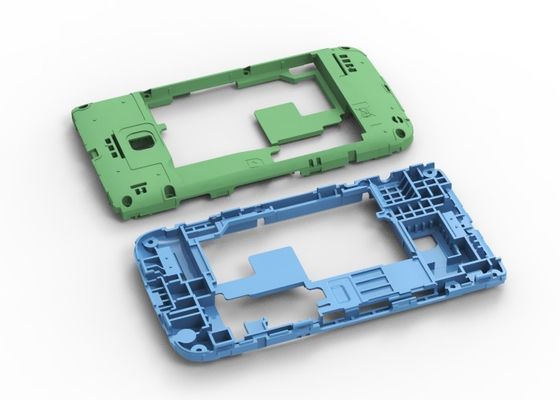

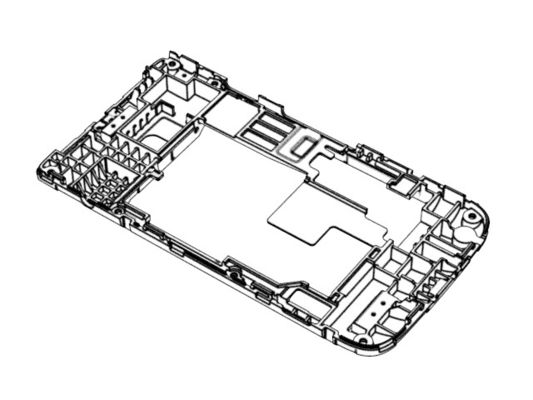

| To achieve a smooth surface finish, the mold undergoes A surface EDM with VDI27#. Additionally, it is equipped with 4 slides and 1 lifter, enabling complex part designs and efficient production. The injection part, made of PC material, weighs 8.3g and has dimensions of 53.62X8.09X101.85mm. |

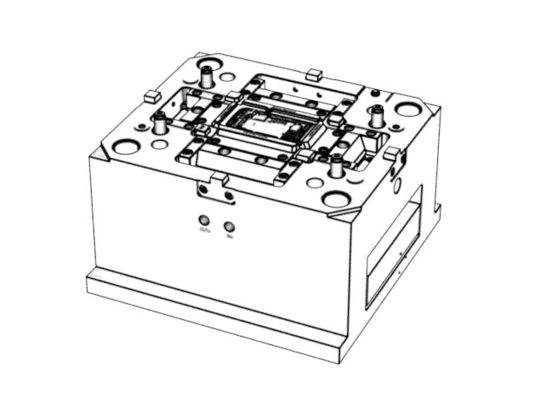

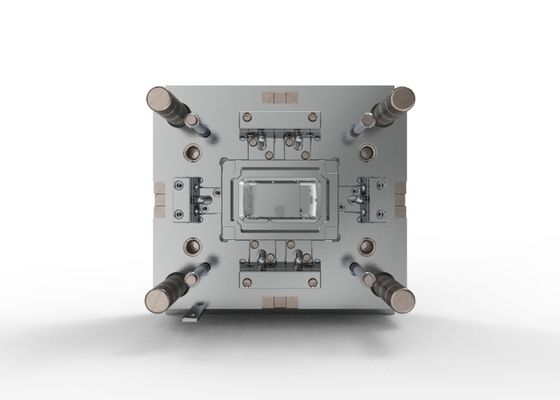

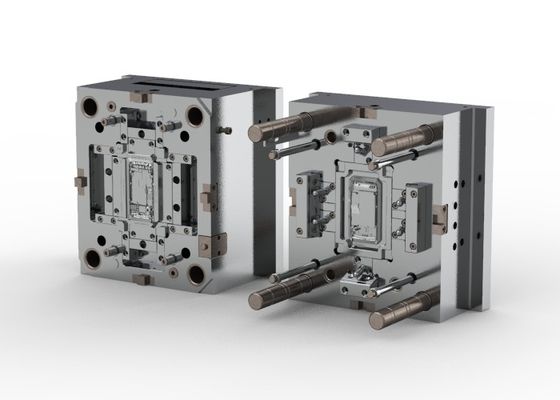

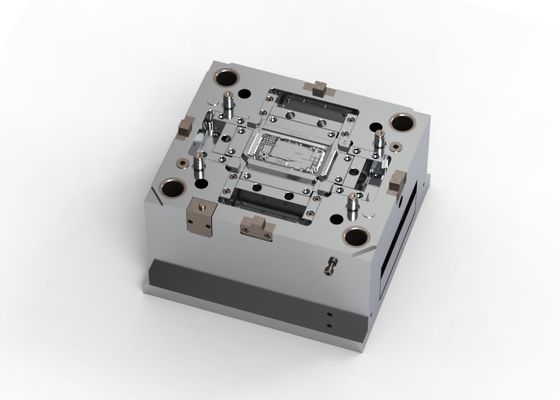

Display diagram
