OEM / ODM ： Precision Injection Molding & Back Cover (1*1) No.22447-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides | Size | 400.000 X 450.000 X 421.000 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 470kg |
| Mould Material | Harden（1*4/S136） | Mould Base | LKM |
| Mould Life | ≥500000 Shots | Design Software | 3D:UG 4.0, 2D:CAD |
| Type | Three-plates Mold | Injection/runner Type | Cold Runner |
| High Light | Back Cover Three Plates Mold,Back Cover Precision Injection Molding |
||
Product Description

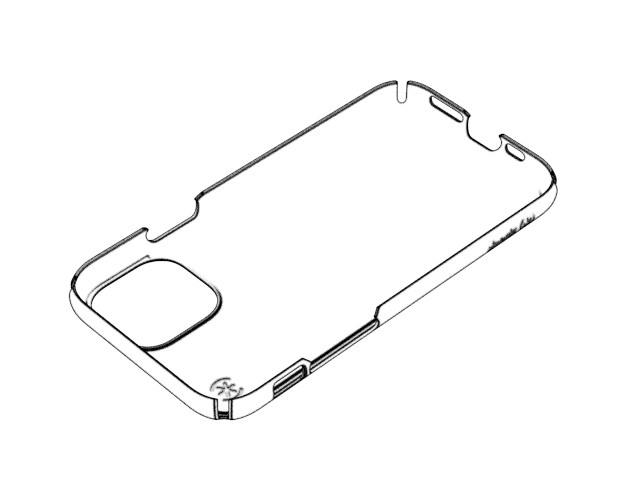

Back cover (1*1)
No.22447-B

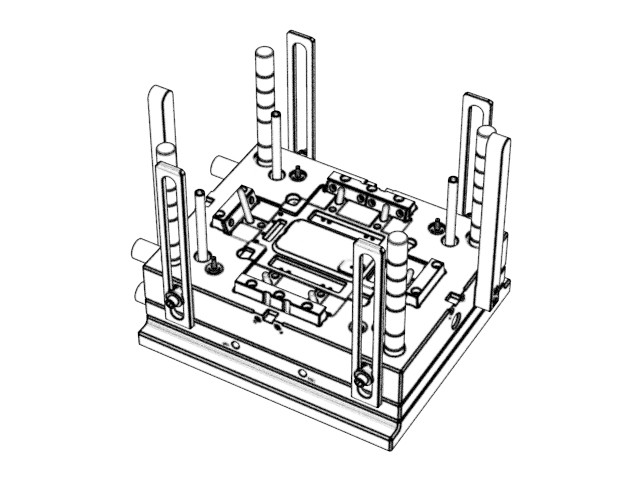

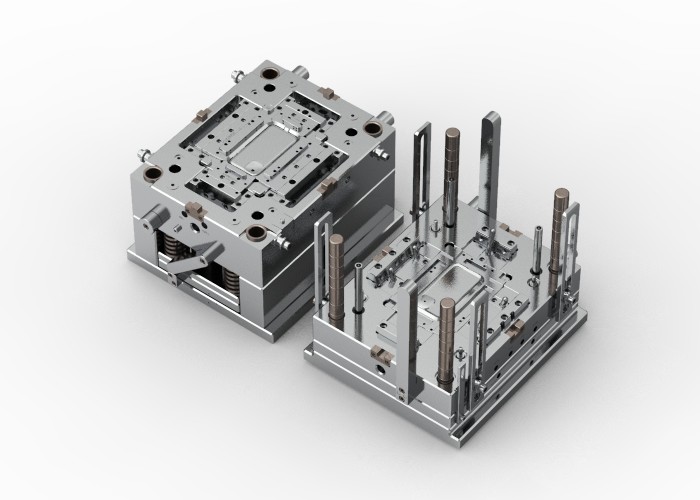

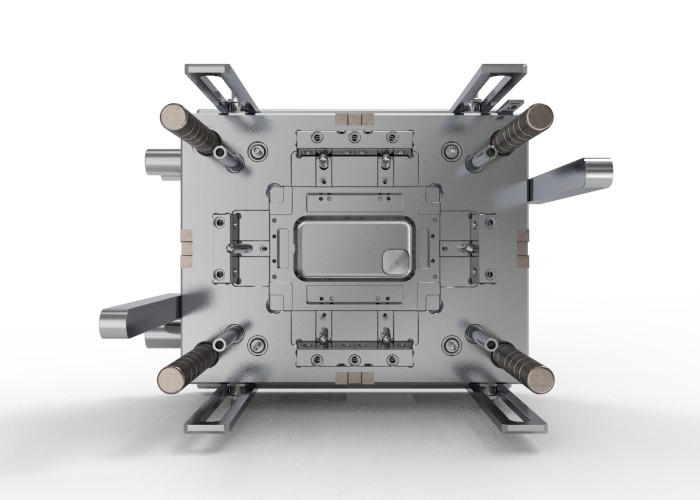

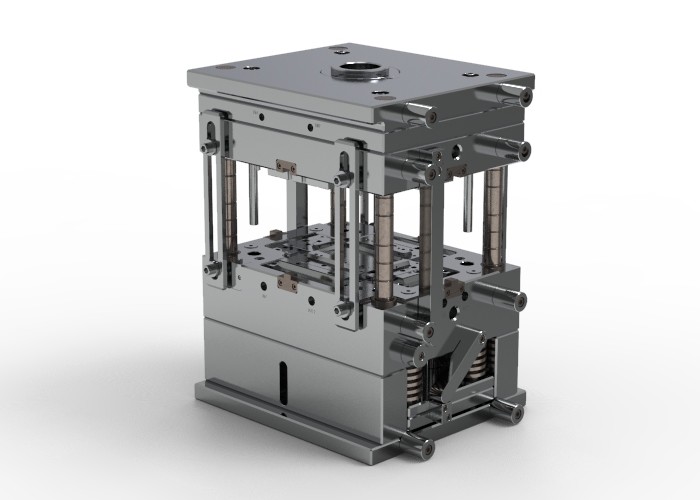

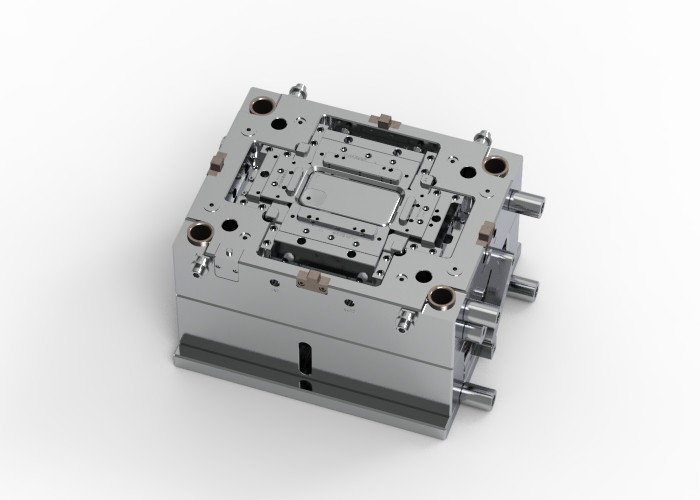

| Firstly, this mold is designed with a standard mold base (FCI3545.70120120) and originates from Guangdong, China. It adheres to the LKM mold standard, ensuring high quality and reliability. The mold has a size of 400mm in length, 450mm in width, and 421mm in height, with a net weight of 470kg. It features 4 slides and 1 lifter, making it suitable for various complex molding processes. |
| Secondly, the mold is specifically designed to fit a 140T machine, ensuring optimal performance and efficiency. It is a three-plates mold with a cold runner injection/runner type. The mold gate is a sub gate, which enhances the precision and quality of the final product. The mold has undergone surface polishing to SPI-A1 standards and is made of hardened steel for the cavity and core, ensuring durability and longevity. |

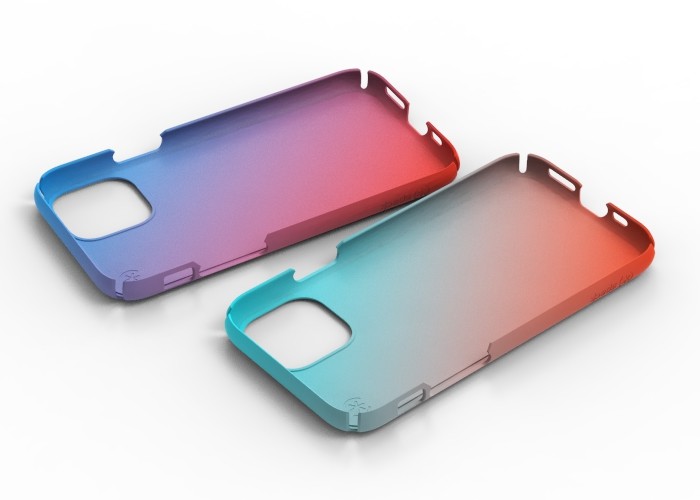

| Lastly, the mold has a tool life of 500,000 shots, making it a reliable and cost-effective solution for long-term production. It is designed for injection molding with PC material, with an injection part net weight of 24g. The injection part size measures 150.4mm in length, 78.5mm in width, and 11.8mm in height. This mold is an excellent choice for manufacturing high-quality PC injection parts with precision and consistency. |
Display diagram
