OEM / ODM ： Precision Injection Molding & Transparent Back Shell (1*1) No.22447-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 450.000 X 421.000 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 470kg | Tool Life | 500k Shots |
| Gate | Sub Gate | Type | Three-plates Mold |
| Injection/runner Type | Cold Runner | Origin | Guangdong, China |
| Slides | 4 | ||
| High Light | Transparent Shell Three Plates Mold,Three Plates Precision Injection Molding,Cold Runner Injection Molding |
||
Product Description

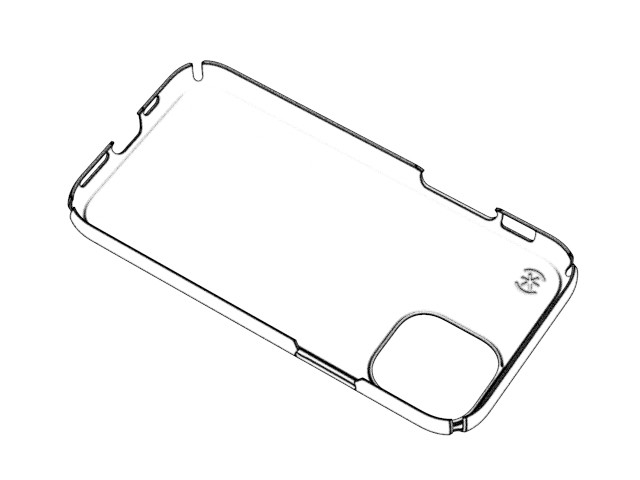

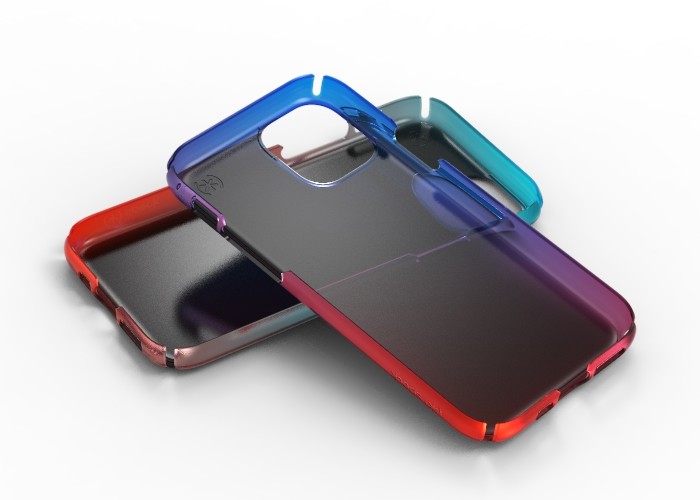

Transparent back cover (1*1)
No.22447-B
| It boasts a standard mold base (FCI3545.70120120) and hails from the vibrant province of Guangdong, China. Crafted in adherence to the esteemed LKM mold standard, this mold guarantees exceptional quality and unwavering reliability. With dimensions measuring 400mm in length, 450mm in width, and 421mm in height, and a net weight of 470kg, it stands as a robust and substantial tool. Equipped with 4 slides and 1 lifter, it effortlessly accommodates the intricacies of diverse and complex molding processes, ensuring precision and finesse in every output. |
| Meticulously designed to complement a 140T machine, it optimizes performance and efficiency to unparalleled levels. This three-plates mold employs a cold runner injection/runner type, with a sub gate that enhances the final product's precision and quality. The mold's surface has been polished to meet the exacting SPI-A1 standards, while the cavity and core are forged from hardened steel, guaranteeing durability and longevity. With a tool life of 500,000 shots, this mold proves to be a reliable and cost-effective solution for long-term production. Specifically engineered for injection molding with PC material, it effortlessly handles an injection part net weight of 24g. The injection part itself measures 150.4mm in length, 78.5mm in width, and 11.8mm in height. With its unwavering commitment to precision and consistency, this mold emerges as the ideal choice for manufacturing high-quality PC injection parts. |

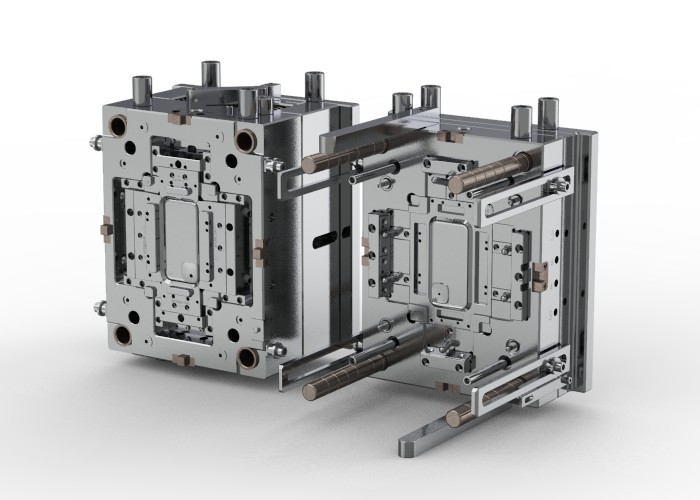

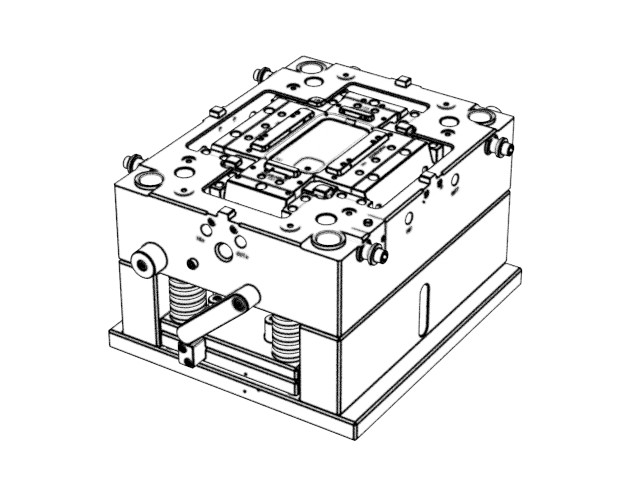

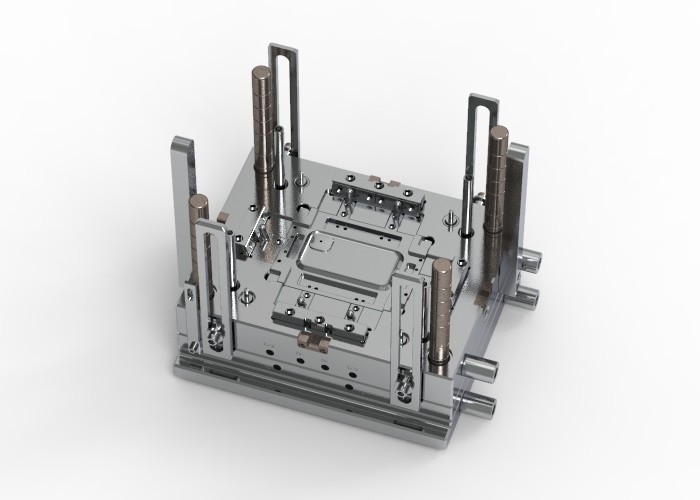

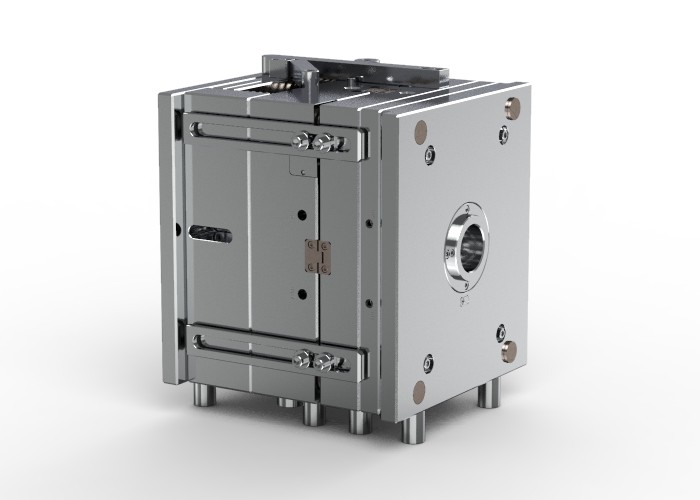

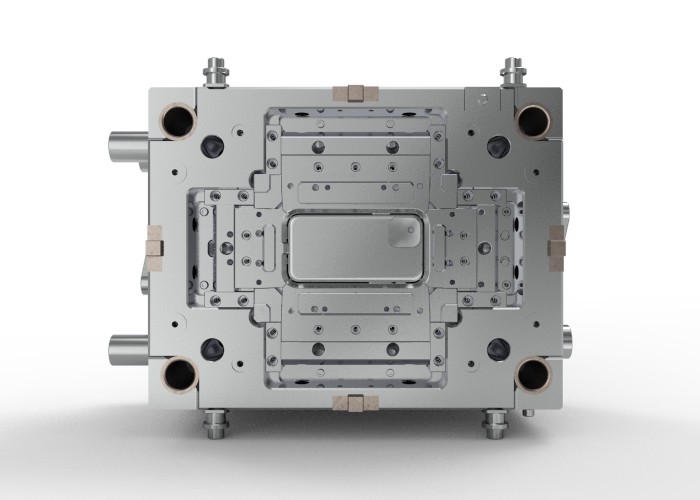

Display diagram
