OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 270.000 X 490.000 X 406.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 900kg | Standard | LKM |
| Tool Life | 500K Shots | Type | Three Plates Mold |
| Gate | Pin Point Gate | Part Material | PC/PC+ABS |
| Part Weight | 1.6g | ||
| High Light | lkm hot runner injection molding,three plates hot runner injection molding,lkm hot runner mold |
||
Product Description
Transparent Headphone Lower Housing (1*2) / Hot runner / Three-plates mold No.23306 &23307-B
Transparent Headphone
Lower Housing (1*2)
No.23306 & 23307-B

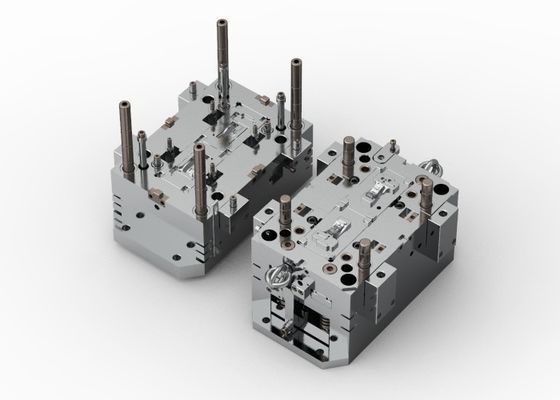

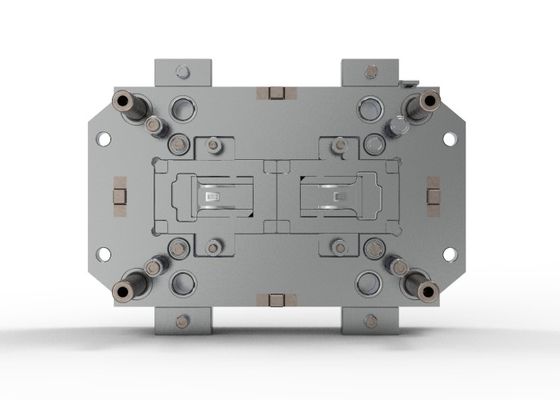

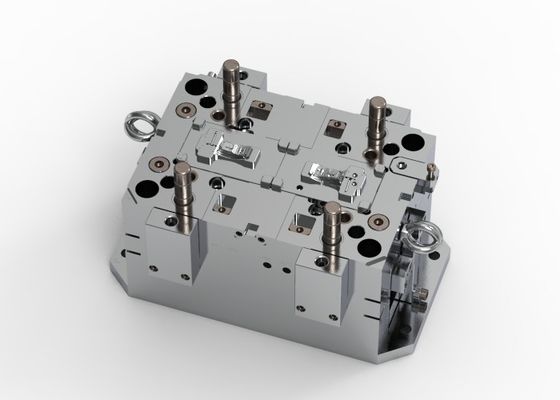

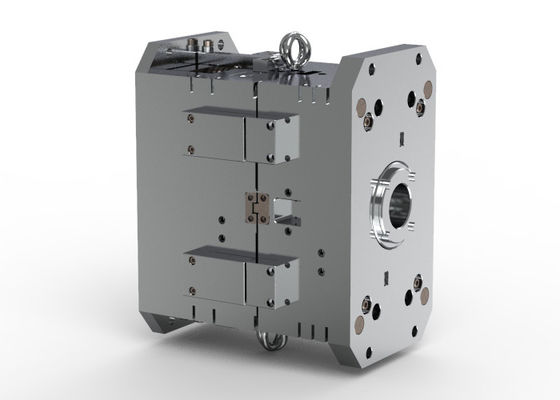

The mold, with the part number DAI2740 808090, is a three-plates mold designed according to the LKM standard. It has a size of 270mm in length, 490mm in width, and 406mm in height. The mold features 4 slides and 10 lifters, and it utilizes a pin point gate for the injection process. With a tool life of 500K shots, it is suitable for hot runner injection/runner type. The mold weighs 900kg and is compatible with a 180T machine. |
The double-shot molding technique is employed in this mold, allowing for the injection of two different materials into the same mold set. This results in the formation of molded parts composed of two materials. |

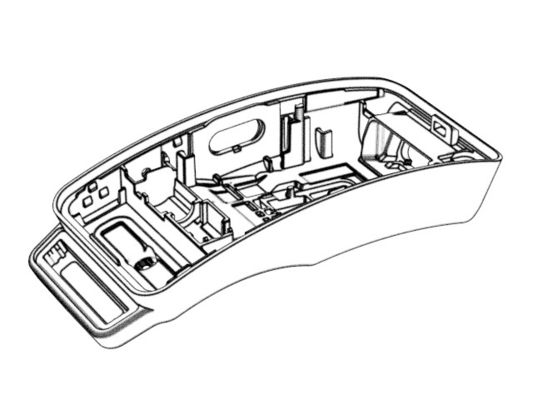

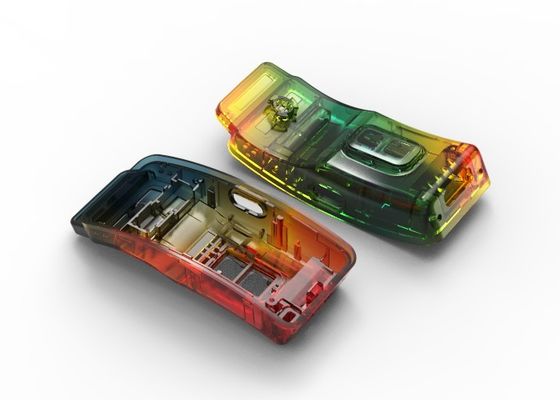

The part material used in this mold is PC/PC+ABS, which offers a low price, a hard texture, and resistance to wear. The part has dimensions of 55.01mm x 21.4mm x 11.5mm and weighs 1.6g per piece. |
To achieve a high-quality surface finish, the mold has a cavity and core made of hardened steel (1*2/S136). The surface is polished to SPI-B1 standard. |

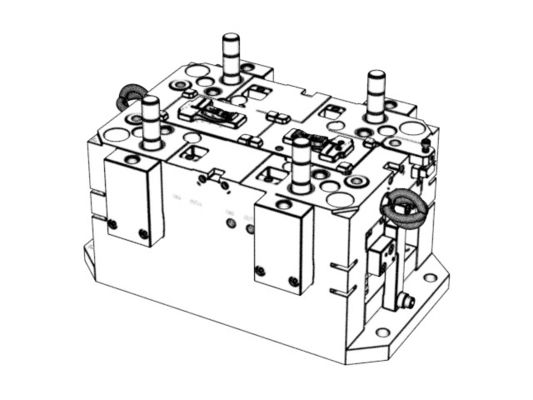

Display diagram
