OEM / ODM ： Double Injection Molding & Headphone Lower Housing 1x2 No:23306 & 23307-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Double-shot Molding | Size | 270.000 X 490.000 X 406.000 |
|---|---|---|---|
| IMM Tonnage | 180T | Mold Base P/N | DAI2740 808090 |
| Slide | 4 | Lifter | 10 |
| Part Material | PC PC+ABS | Type | Three-plates Mold |
| Mold Weight | 900kg | ||
| High Light | headphone lower housing hot runner mold,pc hot runner mold,pc hot runner injection molding |
||
Product Description

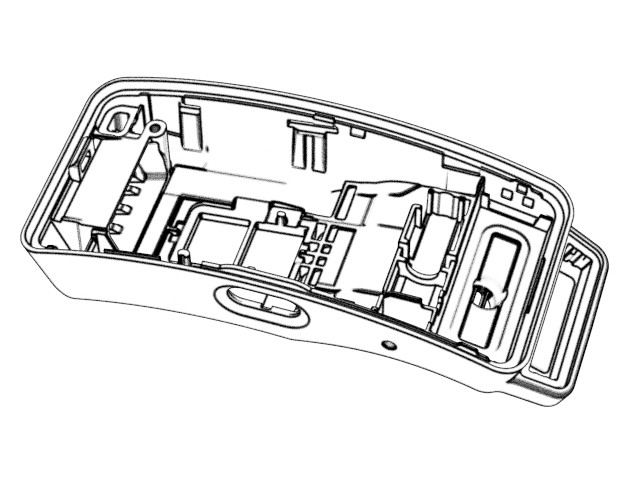

Headphone Lower Housing (1*2)
No.23306 &23307-B

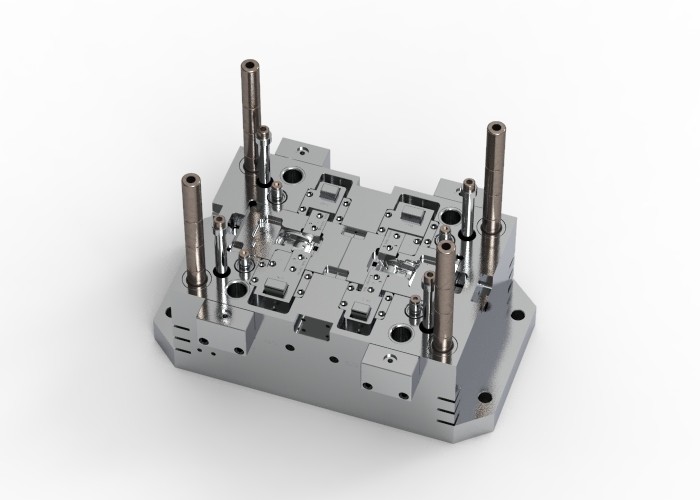

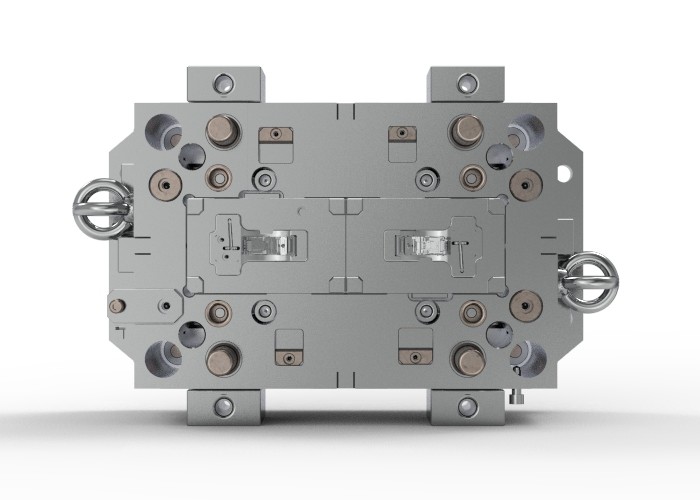

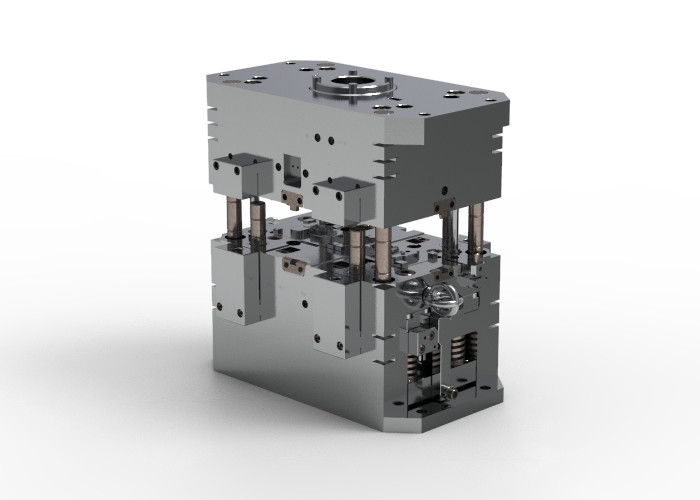

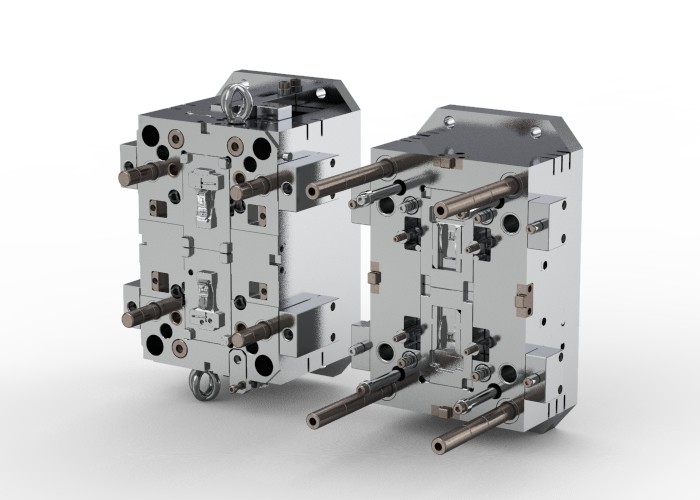

| The mold, with the part number DAI2740 808090, is a three-plates mold designed for double-shot molding. It has a mold size of 270mm in length, 490mm in width, and 406mm in height. |
| The mold base weighs 900kg and requires an injection molding machine with a tonnage of 180T. It features 4 slides and 10 lifters for complex part ejection. The gate type used is a pin point gate, and the tool life is rated for 500,000 shots. |
| The surface finish of the mold is polished to SPI-B1 standard. The cavity and core of the mold are made of hardened steel (12/S136), ensuring durability. The part material used is PC or PC+ABS, with a weight of 1.6g and a size of 55.01*21.4*11.5mm. The injection and runner type employed is a hot runner system. |

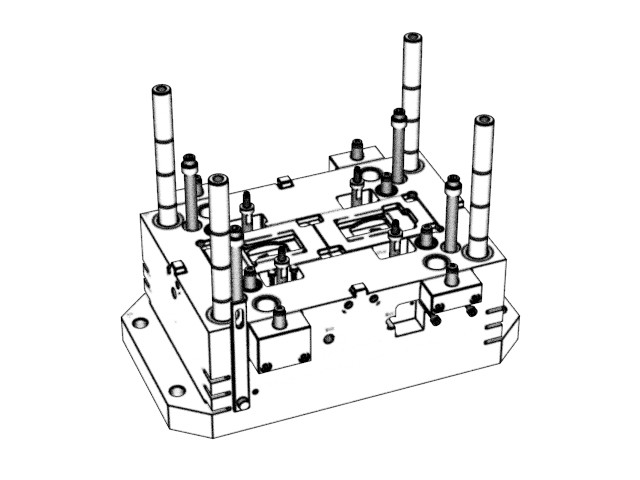

Display diagram
