OEM / ODM ： Double Injection Molding & Smart Watch Lower Housing No 23309 And 23310-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 270.000 X 465.000 X 356.000 | IMM Tonnage | 200T |
|---|---|---|---|
| Mold Weight | 357kg | Gate | Pin Point Gate + Submarine Gate |
| Mold Base P/N | FCI2735 6011080 | Mold Life | 500000 Shots |
| Surface Finish | SPI-A2 / SPI-B2 / VDI24# (Makino) | Standard | LKM |
| Steel Of Cavity & Core | Harden (1*4/S136) | Injection Type | Cold Runner |
| Runner Type | Cold Runner | Mold Features | Double-shot Molding |
| High Light | 500000 shots cold runner injection molding,lkm cold runner injection molding,500000 shots injection cold runner mold |
||
Product Description
Smart Watch
Lower Housing (1*4)
No.23309 & 23310-B
|

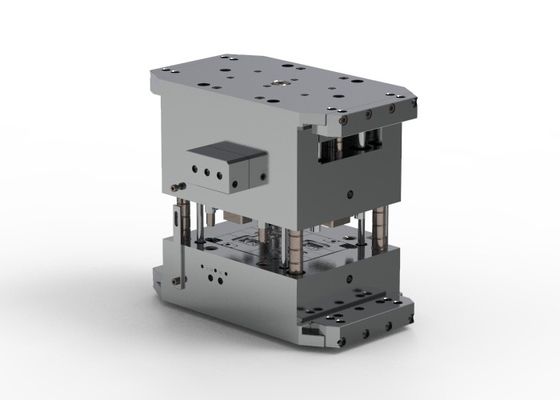

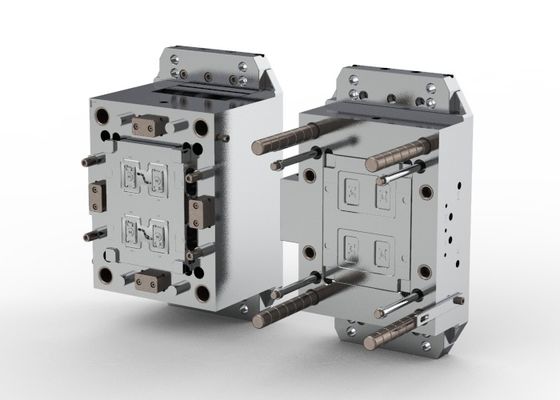

The mold base P/N is FCI2735 6011080. It is a three-plates mold with a mold size of 270465356mm. The gate type used is a pin point gate combined with a submarine gate. The mold has a life expectancy of 500k shots and weighs 357kg. It is designed to be used with an injection molding machine of 200T.
|
|

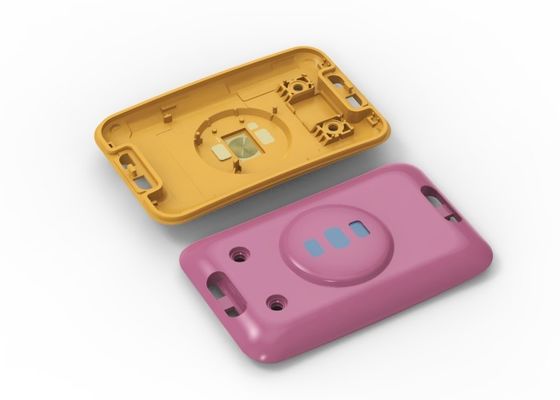

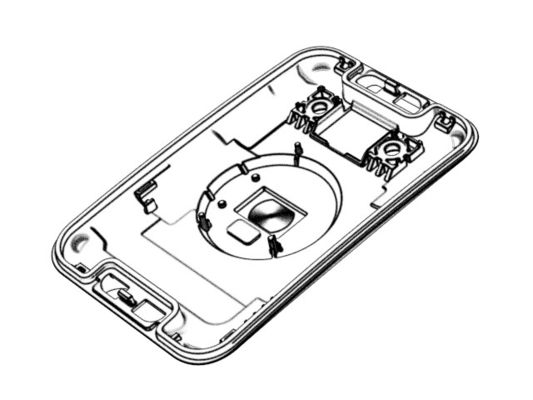

The part produced by this mold is made of PA (transparent) and PA + 60% GF (black), with a weight of 2.2g and dimensions of 26.42 X 42.24 X 5.79mm. The surface finish of the mold includes an A surface EDM with SPI-A2, an A surface EDM with SPI-B2, and an A surface EDM with VDI24# (Makino). The mold is built according to the LKM standard, and the cavity and core are made of hardened steel (1*4/S136). The injection and runner type used is a cold runner.
|
|
In addition, this mold features double-shot molding, allowing for the production of parts with multiple colors or materials.
|

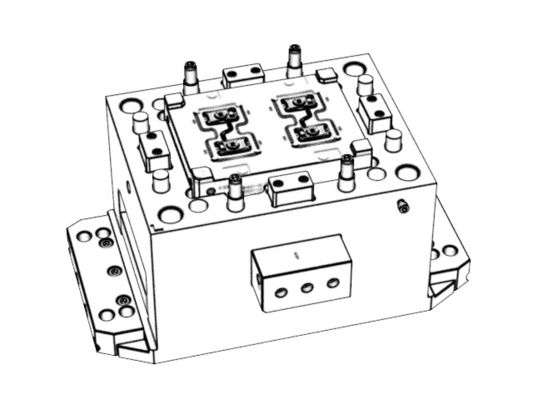

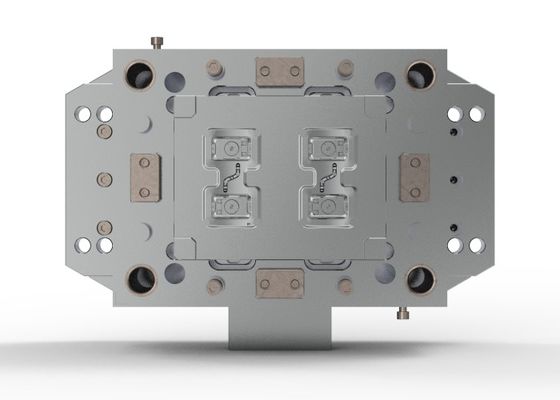

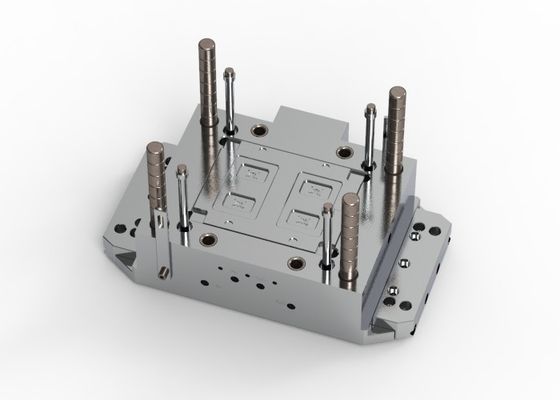

Display diagram
