OEM / ODM ： Double Injection Molding & Transparent Smart Watch Lower Housing 1x4 No 23309 And 23310
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Double Shot Molding | Size | 270*465*356mm |
|---|---|---|---|
| Mold Weight | 357(kg） | Part Material | PA (transparent)/PA + 60% GF (black) |
| Design Software | (3D)UG 4.0/ (2D）CAD | Mould Base | LKM |
| High Light | 1x4 cold runner mold,double shot injection cold runner mold,1x4 cold runner injection molding |
||
Product Description

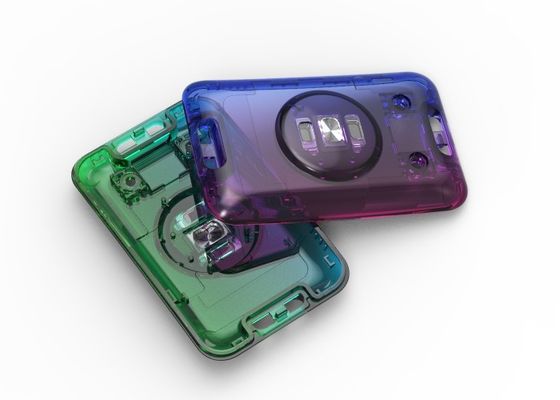

Transparent Smart Watch
Lower Housing (1*4)
No.23309 & 23310

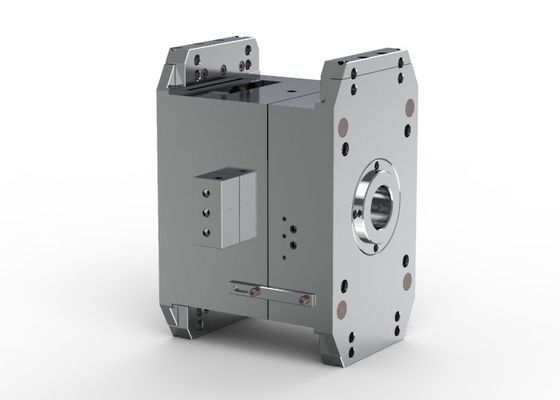

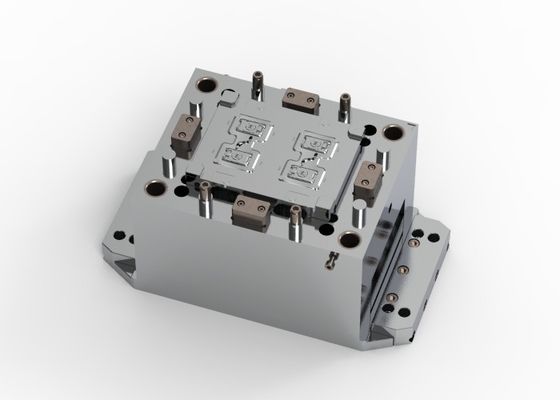

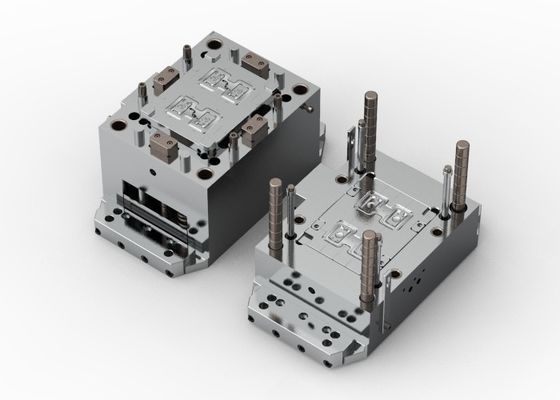

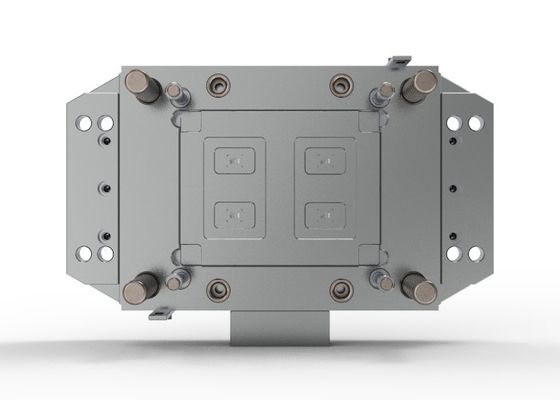

| The mold is a three-plates mold with a size of 270 X 465 X 356mm. It is built on the FCI2735 6011080 mold base and features a pin point gate and submarine gate. The standard used for this mold is LKM. With a mold life of 500k shots, it is designed for double-shot molding. |
| The mold weighs 357kg and requires an injection molding machine with a tonnage of 200T. The parts produced from this mold can be made of either transparent PA or black PA + 60% GF. The part size is 26.42 X 42.24 X 5.79mm, with a net weight of about 2.2g per piece. The surface finish of the parts includes A surface EDM with SPI-A2, A surface EDM with SPI-B2, and A surface EDM with VDI24# (Makino). The cavity and core of the mold are made of hardened steel (1*4/S136). |

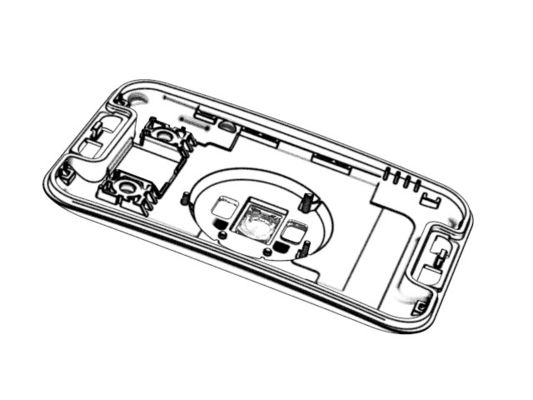

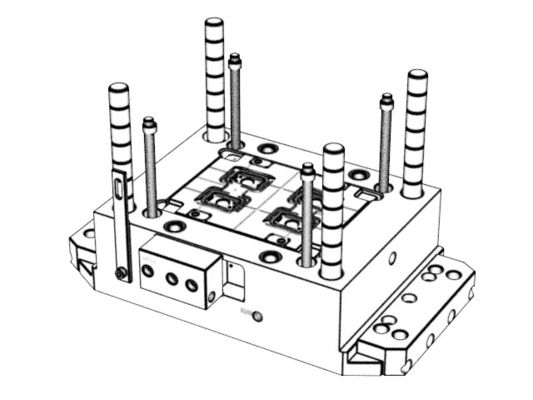

Display diagram
