OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 600 X 600 X 776mm | Cavity | Single |
|---|---|---|---|
| IMM Tonnage | 450(T) | Mold Weight | 2062(KG) |
| Gate | Large Pin Point Gate | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Base | LKM | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Part Material | PC+ABS |
| Part Weight | 240g |
Product Description

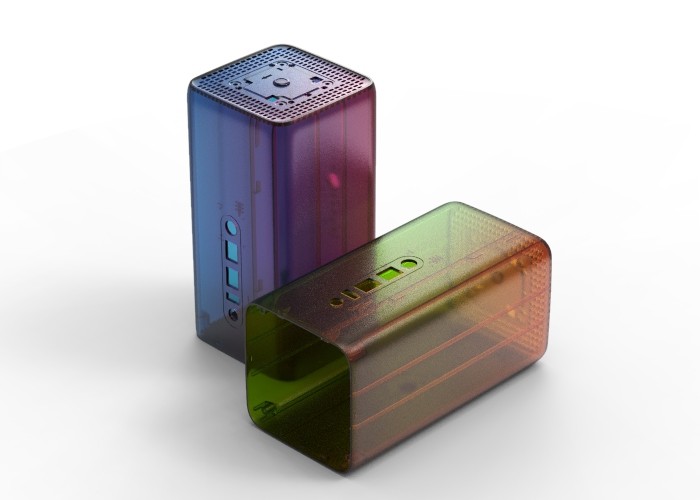

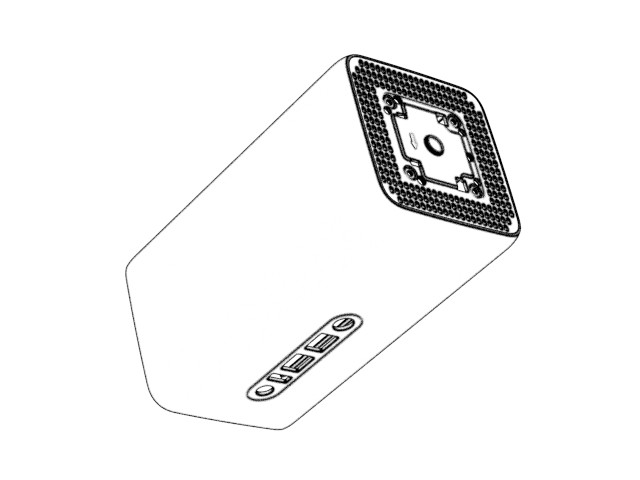

Middle housing (1*1)
No.23394-B
| Chitwing | Standard mold base P/N: CI6060 | Gate | Net weight | ||
| Cold runner | Length | Width | Height |
Large pin point gate |
2062kg |
| 600 | 600 | 776 | |||
|
|
|
Type: Two-plates mold
Standard: LKM
IMM tonnage: 450T
| The mold is developed (designed and manufactured) by Chitwing with advanced processing technology. A surface polished to 800# sandpaper and textured. The large A surface EDM with VDI27# (Makino) and other large surfaces EDM with VDI30# (Makino). Harden the cavity and core with 1*1/S136 to have hardness ≥ 50HRC; the mold surface is free of defects. The mold features smooth ejection, service life up to 500k shots, and excellent cost performance | ||||||||

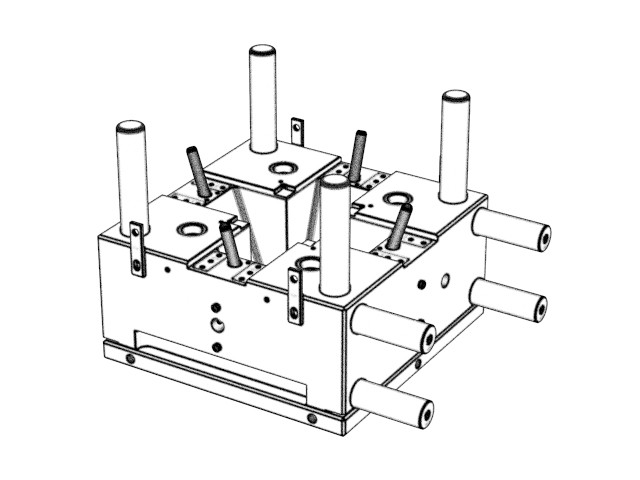

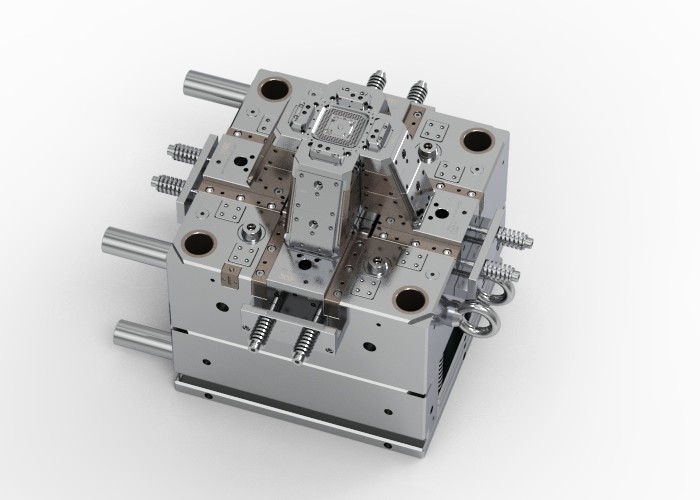

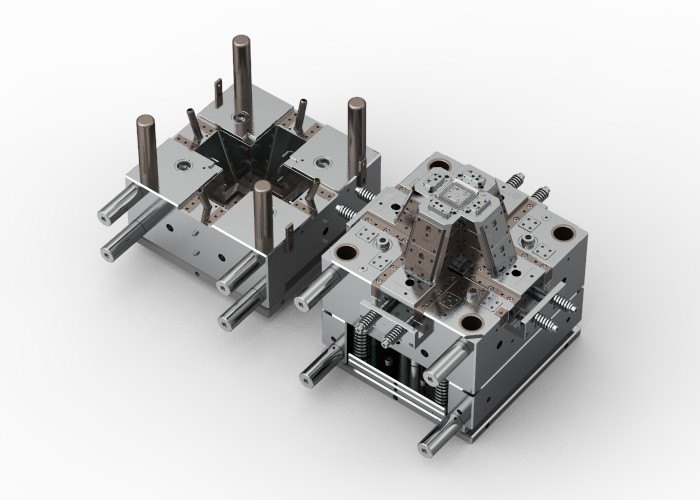

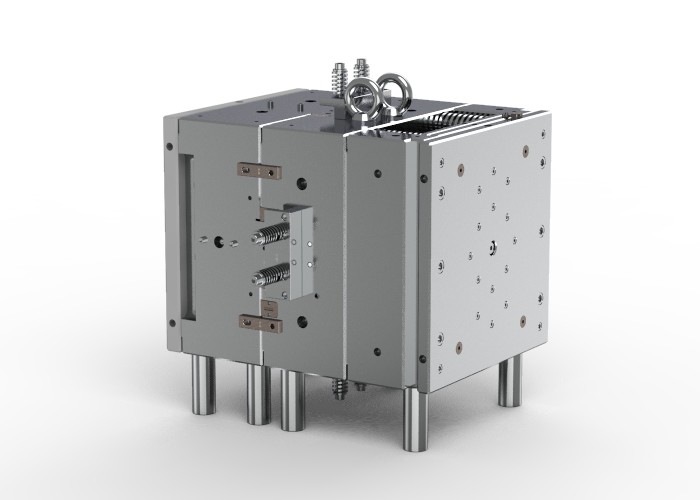

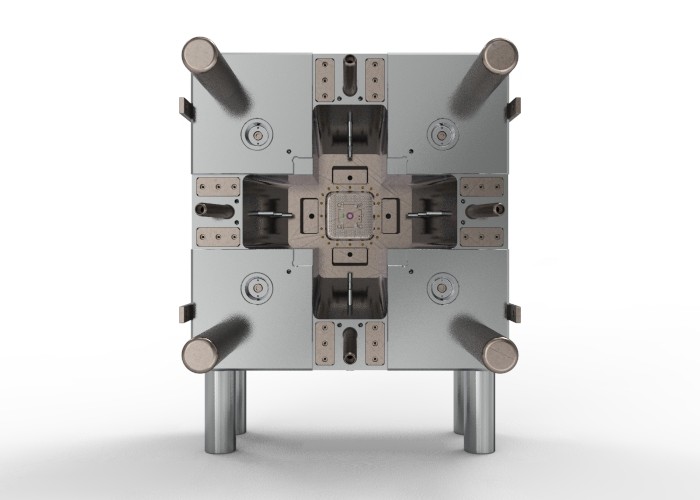

Display diagram
