OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 600 X 600 X 776mm | IMM Tonnage | 450(T) |
|---|---|---|---|
| Mold Weight | 2062(KG) | Standard Mold Base P/N | CI6060 |
| Gate | Large Pin Point Gate | Part Weight | 240g |
| Material | PC+ABS | Type | Two-plates Mold |
Product Description

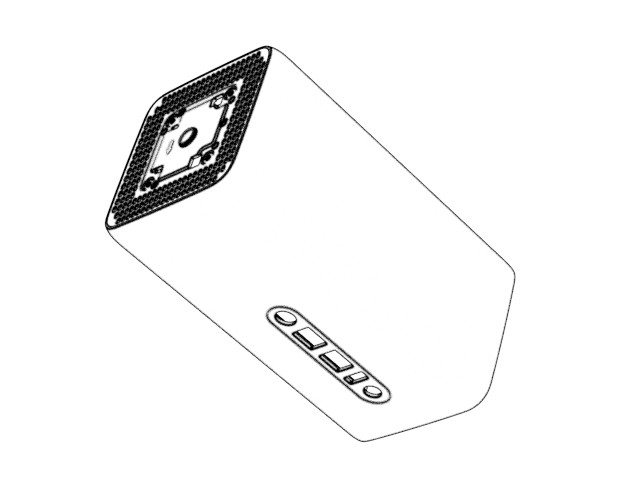

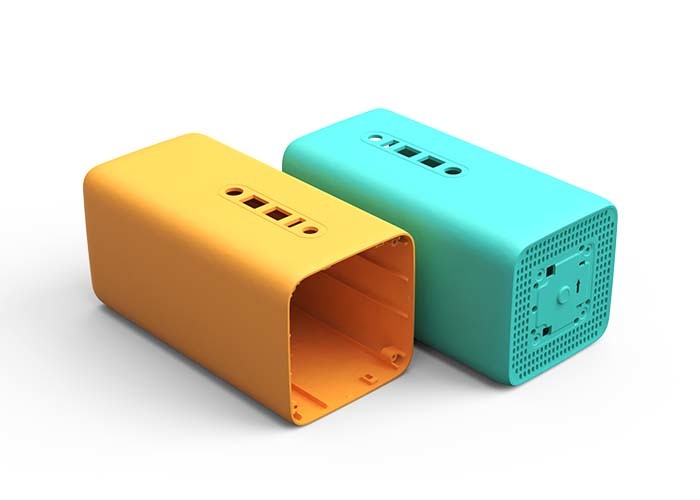

Middle housing (1*1)
No.23394-B
Description:
Our precision cold runner molds are meticulously designed and manufactured using cutting-edge techniques to fulfill the requirements of high precision and efficiency. By incorporating precise runner design and optimized cooling systems, our molds achieve uniform temperature distribution and rapid cooling, resulting in a significant reduction in product defects and production cycles.
Our molds are constructed using high-strength materials and undergo precision machining processes, ensuring long-lasting durability and stability. Our team of experienced engineers offers customized designs tailored to meet specific customer requirements, accompanied by comprehensive technical support and solutions.
Whether it's in the automotive manufacturing, electronic devices, or medical equipment industries, our precision cold runner molds consistently deliver exceptional performance and reliability. This empowers our customers to achieve high-quality production while maximizing cost-effectiveness.
Application:
router
Precision electronic equipment
auto parts
medical accessories
shell
Features:
| Runner | Cold runner |
| Gate | Large pin point gate |
| Net weight | 2062kg |
| Size | Length:600 x Width:600 x Height:776 |
| Type | Two-plates mold |
| Standard | LKM |
| IMM tonnage | 450T |
| Material | PC+ABS |
| Part size | 103x103x205mm |
| Part weight | 240g |
Chitwing utilizes advanced processing technology to develop and manufacture the mold. The mold undergoes a meticulous surface treatment process, including polishing with 800# sandpaper and texturing. The large A surface is subjected to EDM (Electrical Discharge Machining) using VDI27# (Makino), while other large surfaces are EDM processed with VDI30# (Makino). The cavity and core are hardened using 1*1/S136 material, ensuring a hardness level of ≥ 50HRC. The mold surface is meticulously inspected to ensure it is free from defects. Notably, the mold offers smooth ejection, a service life of up to 500k shots, and exceptional cost performance.
Advantage:
We are a publicly traded company that prioritizes delivering exceptional quality and reliability. With advanced production equipment and cutting-edge technology, we have the capability to meet the diverse production requirements of complex molds. Our dedication to excellence motivates us to continuously integrate the latest production equipment and technology, refine our production processes, and improve both our production efficiency and manufacturing capabilities.
To ensure the highest level of quality and reliability, we place significant emphasis on selecting high-quality raw materials. Through meticulous selection of premium-grade raw materials, we guarantee the superior quality and dependability of every product we manufacture.

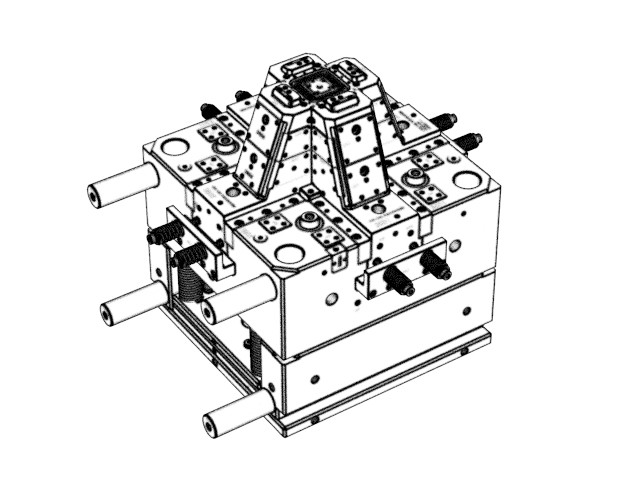

Display diagram
