OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 X Slides | Size | 600 X 600 X 506 |
|---|---|---|---|
| IMM Tonnage | 180T | Mold Weight | 1108KG |
| Injection/runner Type | Cold Runner | Type | Three-plates Mold |
| Standard Mold Base P/N | DCI5060.100150120 | Part Material | PC+ABS |
| Part Weight | 100g |
Product Description

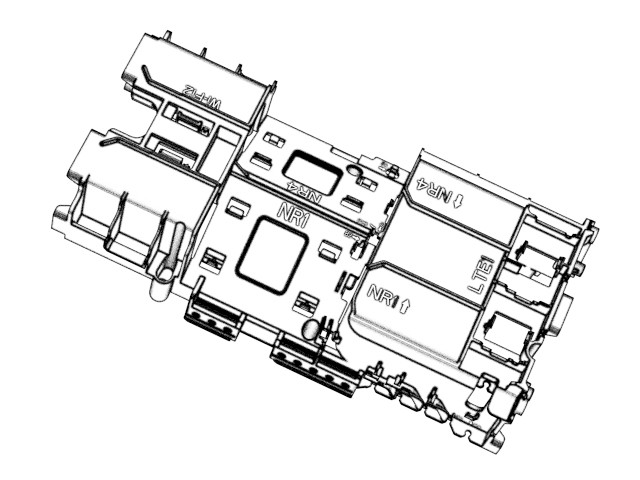

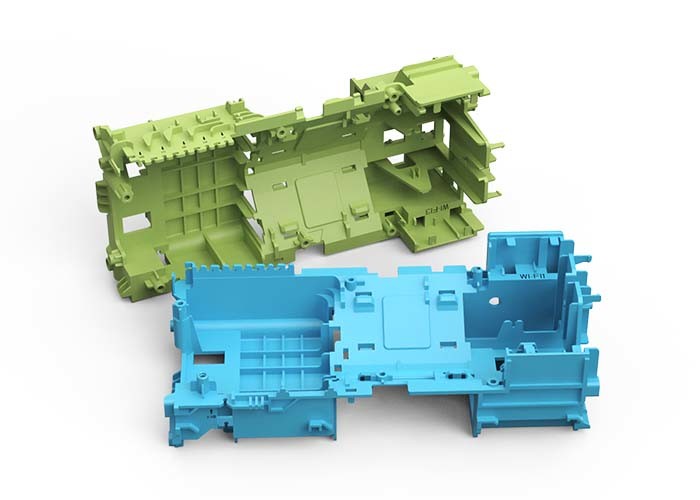

LH Bracket (1*1)
No.23399-B
Description:
| Our company specializes in the production of high-quality single cavity injection molds. These molds are designed and manufactured to meet the specific requirements of our clients. Our single cavity injection molds are crafted with precision and attention to detail. We utilize advanced technology and state-of-the-art equipment to ensure the highest level of accuracy and consistency in the molding process. With our single cavity injection molds, we are able to produce plastic parts with intricate designs and complex geometries. The molds are engineered to withstand high pressures and temperatures, ensuring the durability and longevity of the final products. Our team of experienced engineers and technicians work closely with our clients to understand their unique needs and specifications. We provide comprehensive support throughout the entire mold production process, from design and prototyping to final production. At our company, we are committed to delivering single cavity injection molds that meet the highest standards of quality and performance. We strive to exceed our clients' expectations and provide them with reliable and efficient solutions for their molding needs. |
Application:
router
Complex accessories
inner shell
shell
auto parts
medical accessories
Features:
| Chitwing | L × W | ||
|
Standard mold base P/N DCI5060.100150120 |
600x600 | ||
| Height | Net weight | ||
| 506 | 1108kg | ||
| IMM Tonnage | 180T | ||
| Standard | LKM | ||
| Type | Three-plates mold | ||
| Part size | 97.57 X 201.20 X 67.77mm | ||
| Part weight | 100g | ||
| Cold runner system and pin point gate; | |||
| Inner surface polished to 400# sand paper; | |||
| Hardened cavity and core (1*1/S136), with high hardness and anti-wearing performance; | |||
| The molded part has smooth surface and stable quality; | |||
| Good for PC+ABS molding; | |||
| The ejection plate move smoothly. | |||
| Short cycle time. | |||
Advantage:
| The production of single cavity injection molds offers several advantages for our company and our clients. Firstly, single cavity molds allow for greater design flexibility. With a single cavity, we can create complex and intricate designs without the limitations imposed by multi-cavity molds. This enables us to meet the unique requirements and specifications of our clients, resulting in highly customized and tailored products. Secondly, single cavity molds are cost-effective for low-volume production runs. Since only one part is produced at a time, the initial investment and production costs are lower compared to multi-cavity molds. This makes single cavity molds a viable option for small-scale production or when the demand for a particular part is limited. Thirdly, single cavity molds offer improved quality control. With a single cavity, we can closely monitor and control the molding process, ensuring consistent and precise results. This reduces the risk of defects and allows for better quality assurance. Furthermore, single cavity molds have shorter lead times compared to multi-cavity molds. The manufacturing process is simplified, resulting in faster production cycles and quicker turnaround times for our clients. In summary, the advantages of our company's production of single cavity injection molds include greater design flexibility, cost-effectiveness for low-volume production, improved quality control, and shorter lead times. |

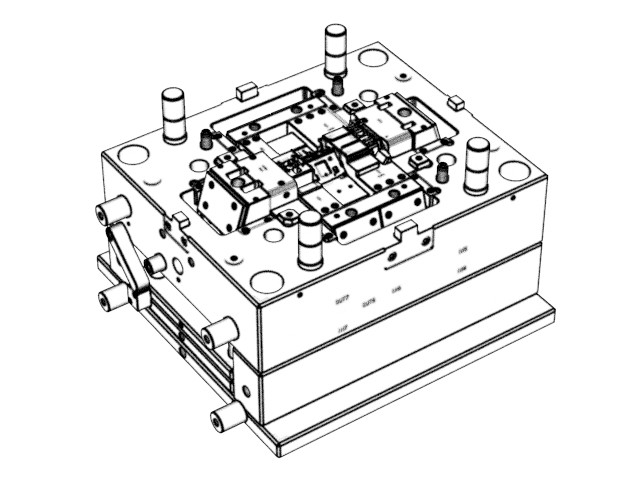

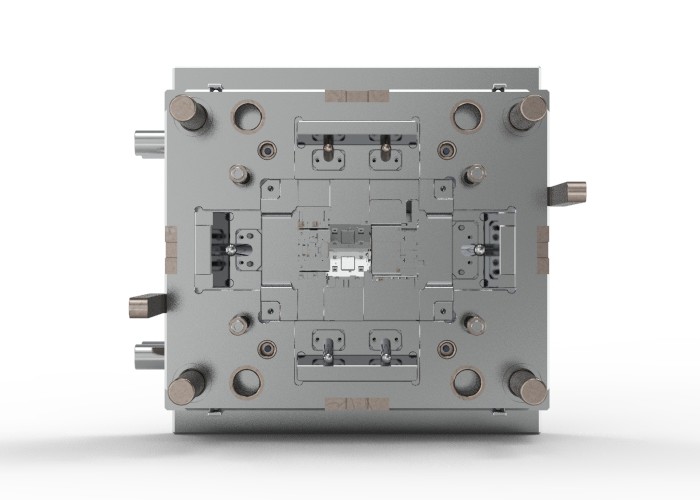

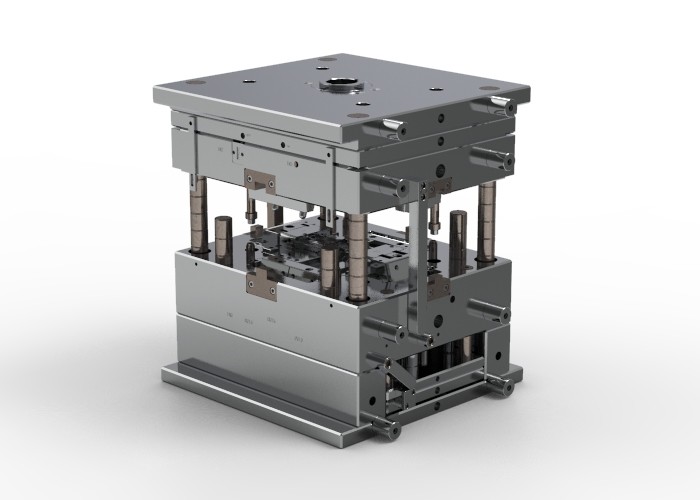

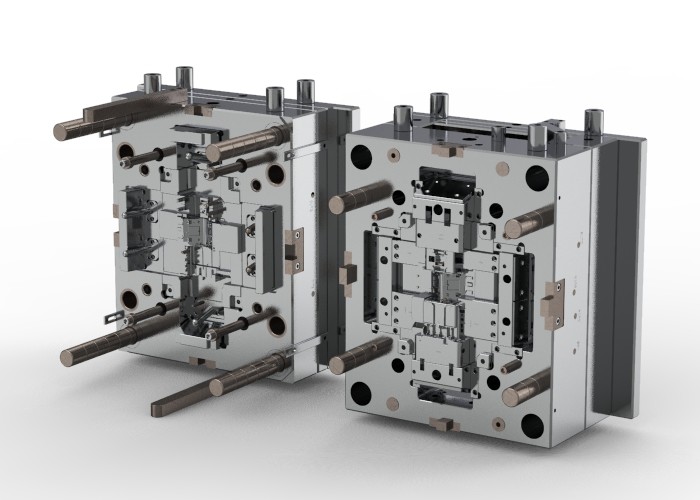

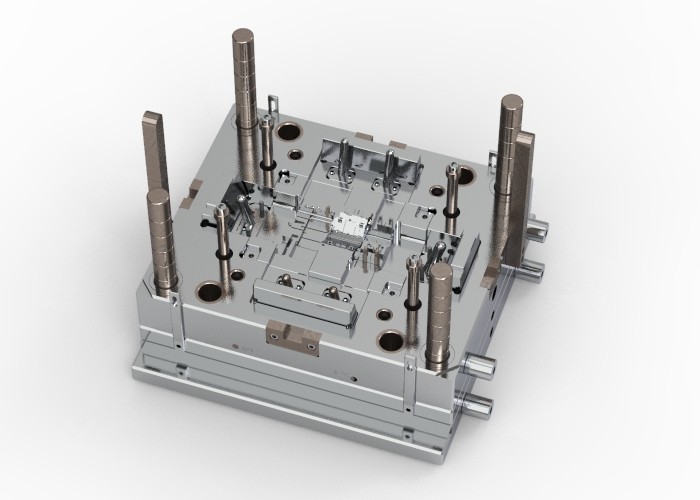

Display diagram
