OEM / ODM ： Single Cavity Injection Mold & Transparent LH Bracket (1*1) No.23399-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 X Slides | Size | 600 X 600 X 506 |
|---|---|---|---|
| Part Material | PC+ABS | IMM Tonnage | 180T |
| Mold Weight | 1108KG | Standard | LKM |
Product Description

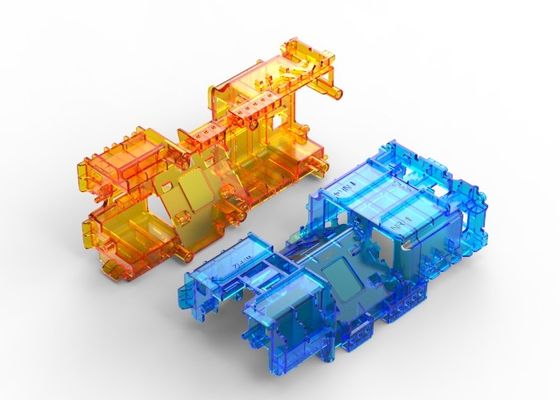

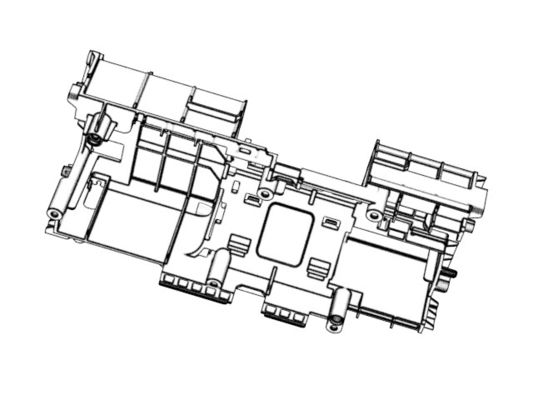

Transparent LH Bracket (1*1)
No.23399-B
Description:
|
Our company specializes in the manufacturing of high-quality single cavity injection molds that are specifically designed and manufactured to meet the unique requirements of our clients. |
Application:
router
Digital Accessories
Complex accessories
Digital inner shell
digital shell
Precision injection molded parts
Features:
|

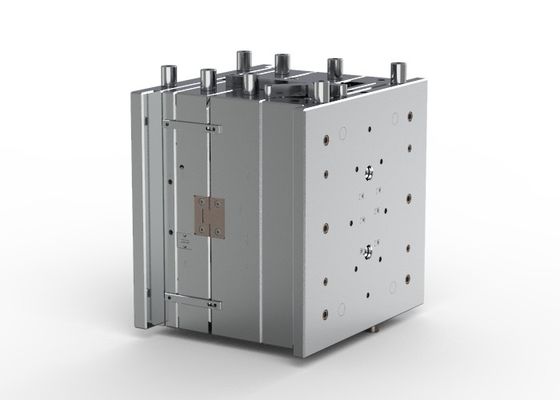

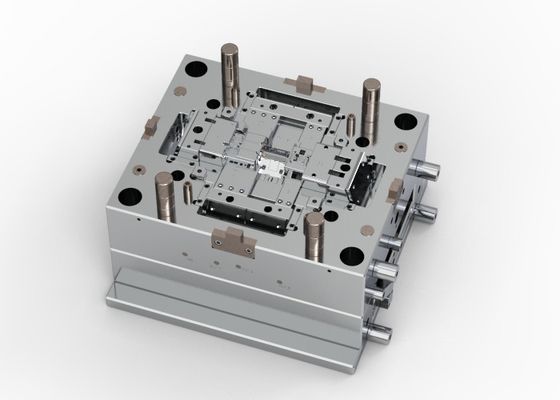

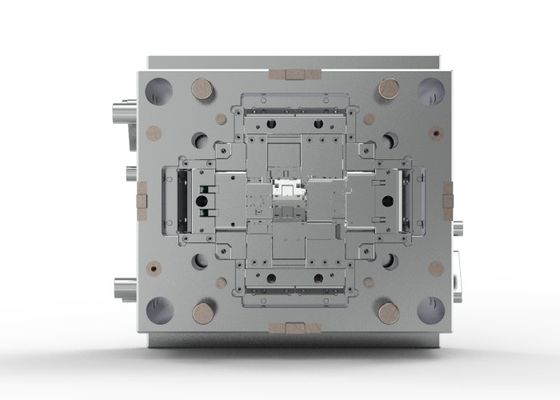

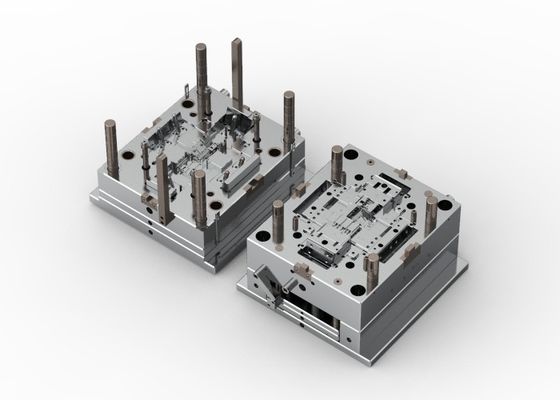

Standard mold base P/N DCI5060.100150120 Size:600 X 600 X 506 Net weight:1108kg Features:4 x slides IMM Tonnage: 180T Standard:LKM Surface finish:Inner surface polished with 400# Steel of cavity & core:Harden (1*1/S136) Type:Three-plates mold Injection/runner type:Cold runner Part material:PC+ABS Part size:97.57 X 201.20 X 67.77mm net weight:100g
The mold incorporates a pin point gate design, ensuring precise and controlled flow of material. It is equipped with an unobstructed cooling/heating system, guaranteeing efficient temperature regulation throughout the molding process. Additionally, the mold features a reliable seal, eliminating any possibility of leakage. Both the cavity and core of the mold are meticulously crafted to be smooth, devoid of any pits or corrosion. The molded parts exhibit uniform wall thickness, with a maximum deviation of less than 0.15mm. Furthermore, the molded parts are free from any visible flow marks, ensuring a flawless surface finish. |
Advantage:
| The utilization of single cavity injection molds presents numerous benefits for both our company and our clients. To begin with, single cavity molds offer enhanced design flexibility. By employing a single cavity, we can create intricate and complex designs without the constraints imposed by multi-cavity molds. This capability allows us to meet the unique requirements and specifications of our clients, resulting in highly customized and tailored products. Additionally, single cavity molds prove to be cost-effective for low-volume production runs. Since only one part is manufactured at a time, the initial investment and production costs are lower in comparison to multi-cavity molds. Consequently, single cavity molds become a viable option for small-scale production or when the demand for a specific part is limited. Moreover, single cavity molds contribute to improved quality control. With a single cavity, we can closely monitor and regulate the molding process, ensuring consistent and precise outcomes. This meticulous oversight reduces the risk of defects and enables better quality assurance. Furthermore, single cavity molds exhibit shorter lead times when compared to multi-cavity molds. The manufacturing process is simplified, resulting in faster production cycles and quicker turnaround times for our clients. In summary, our company's production of single cavity injection molds offers the following advantages: greater design flexibility, cost-effectiveness for low-volume production, improved quality control, and shorter lead times. |

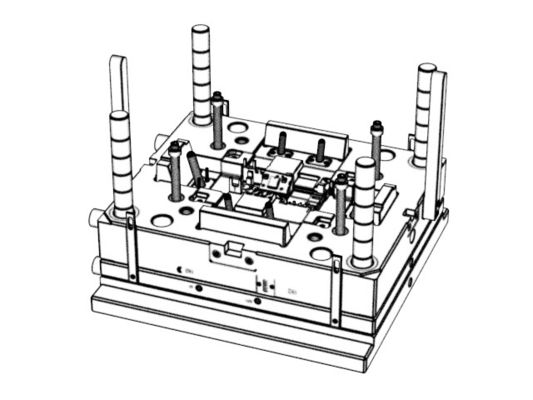

Display diagram
