OEM / ODM ： Precision Injection Molding & Transparent Earphone Terminal (1*8) No.23570-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| IMM Tonnage | 60 (T) | Mold Weight | 27.54(kg) |
|---|---|---|---|
| Gate | Sub Gate | Type | Two-plates Mold |
| Slide | 2 | Cavity/Core | Harden With 1*8/S136 |
| Part Size | 6.21 X 5.61 X 2.91mm | Part Weight | 0.03g |
Product Description

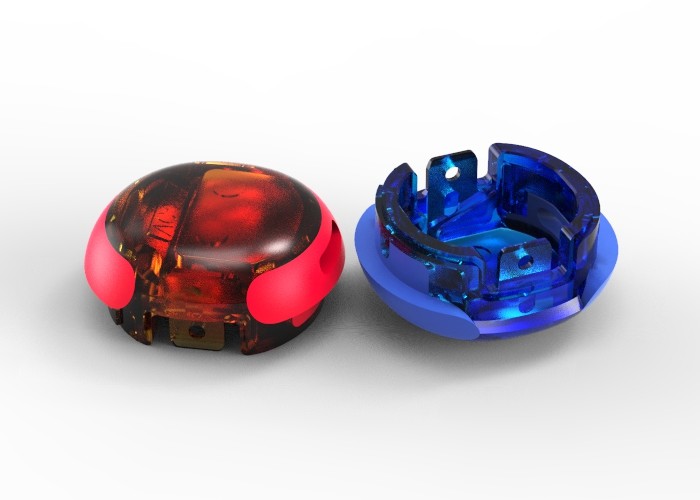

Transparent Earphone terminal (1*8)
No.23570-B
Description:
|
Our company specializes in the production of Precision Injection Molding. Precision Injection Molding is a manufacturing process that involves injecting molten material into a mold cavity under high pressure. This process allows us to create complex and intricate parts with high precision and accuracy. The key characteristics of Precision Injection Molding are: 1.High Precision: Precision Injection Molding enables us to achieve tight tolerances and produce parts with intricate details. This level of precision ensures that the final products meet the exact specifications and requirements. 2.Versatility: Precision Injection Molding can be used to produce a wide range of products, from small and intricate components to larger parts. It allows for flexibility in design and can accommodate various shapes, sizes, and complexities. 3.Cost-effective: Precision Injection Molding offers cost advantages in terms of material usage, production efficiency, and reduced labor costs. The process allows for high-volume production, resulting in economies of scale and lower per-unit costs. 4.Consistency: Precision Injection Molding ensures consistent quality and uniformity in the produced parts. The process is highly repeatable, minimizing variations and defects, and ensuring that each part meets the required standards. 5.Material Options: Precision Injection Molding supports a wide range of materials, including thermoplastics, elastomers, and engineering polymers. This versatility allows us to select the most suitable material for each specific application. |
Application:
electronic product
Precision electronics
Consumer electronics products
Tablet products
drone
Features:
|
Type |
Two-plates mold |
|
Standard |
LKM |
|
Mold size |
110x330x125 |
|
Slide |
2 |
|
Mold net weight |
27.54kg |
|
IMM Tonnage |
60T |
|
Gate |
Sub gate |
|
Part material |
PA |
|
Cavity&Core |
Harden with 1*8/S136 |
|
Part Size |
6.21 X 5.61 X 2.91mm |
|
Part Weight |
0.03g |
|
The two-plate mold has cold runner, saving the labor and time cost of early R & D and design. |
|
|
A surface polished to SPI-A3; Harden the cavity and core to have higher hardness, anti-wearing and anti-corrosion performance. The wall of uniform thickness well fits the molten PA, with stable and controllable; the molded parts have stable quality without sink marks, with uniform thickness and precise thread. |
|
Advantage:
| Our company specializes in the production and manufacturing of precision injection molding tools, providing several distinct advantages in the industry. Firstly, we have a highly skilled team of engineers and technicians who possess extensive expertise in designing and fabricating precision injection molds. Their deep understanding of the intricacies involved in creating molds ensures that we can meet the exact specifications and tolerances required for precision injection molding. Secondly, we leverage advanced technology and state-of-the-art equipment in our manufacturing processes. This enables us to achieve exceptional levels of precision and accuracy in the production of injection molds, resulting in superior quality and performance. Additionally, we prioritize quality control throughout every stage of the manufacturing process. Our rigorous quality assurance protocols guarantee that each mold undergoes thorough inspection and testing before it is delivered to our clients. This commitment to quality ensures that our customers receive molds that meet their precise requirements and deliver optimal results. Furthermore, we are dedicated to providing excellent customer support and after-sales service. Our team is readily available to address any inquiries or concerns that our clients may have, fostering long-term relationships based on trust and satisfaction. |

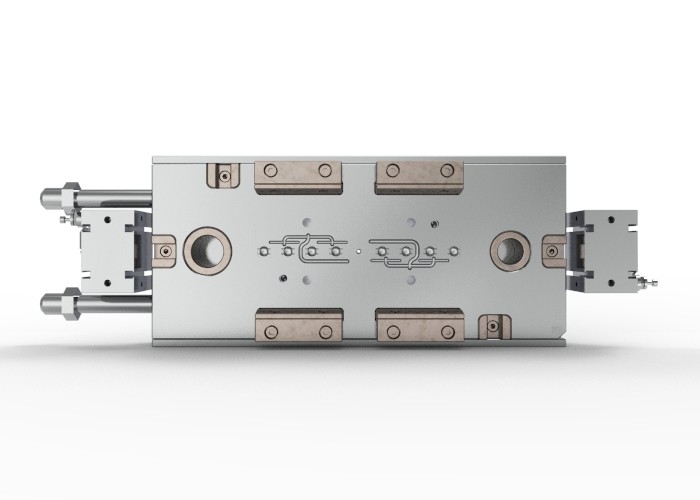

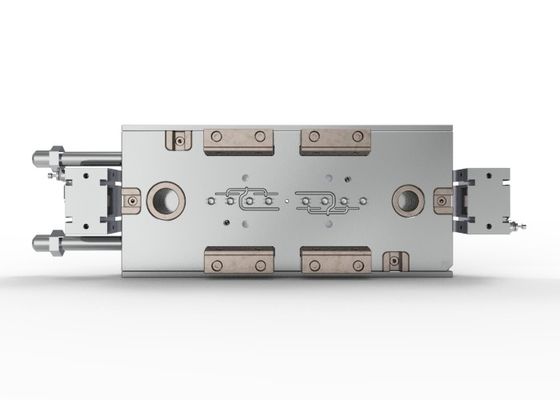

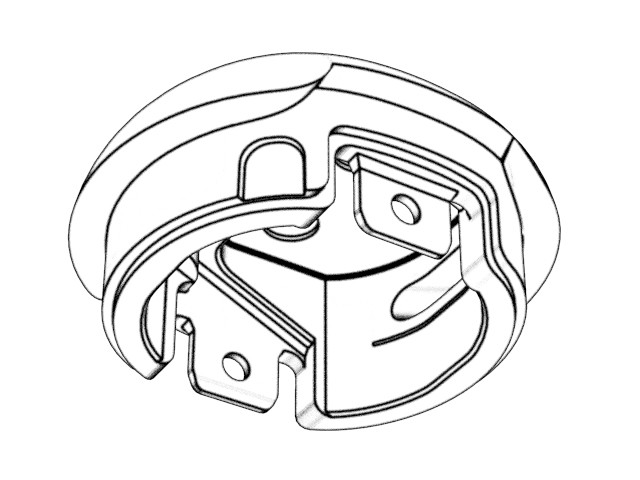

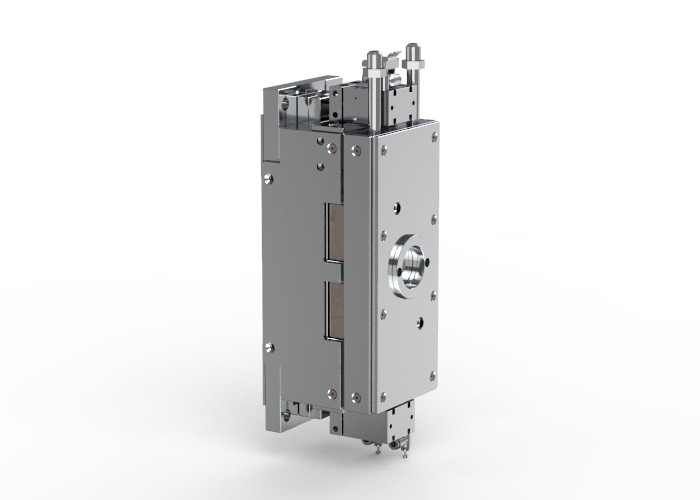

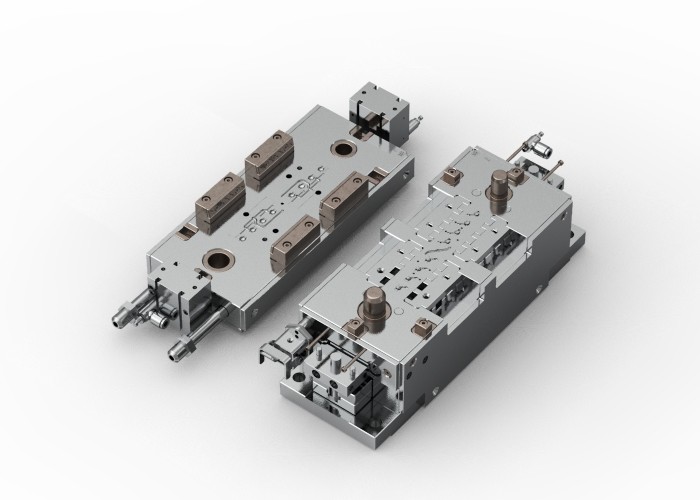

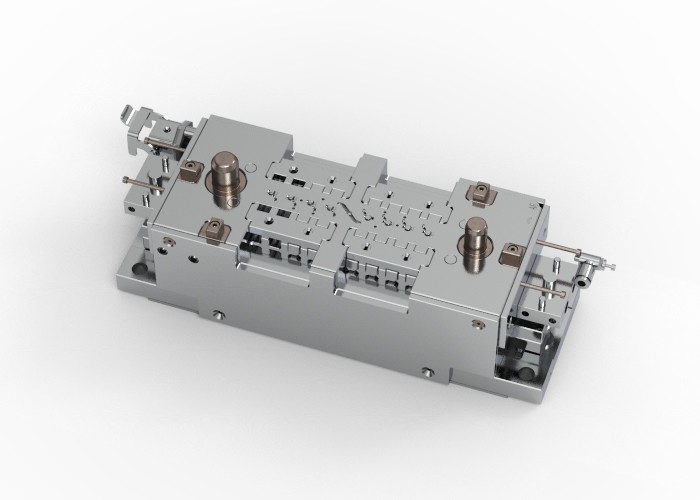

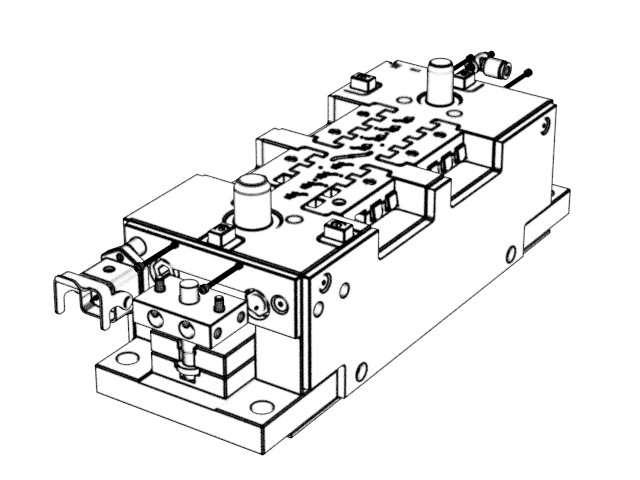

Display diagram
