OEM / ODM ： Precision Injection Molding & Earphone terminal (1*8) No.23570-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 110.000 X 330.000 X 125.000 | IMM Tonnage | 60T |
|---|---|---|---|
| Mold Weight | 27.54kg | Standard | LKM |
| Type | Two-plates Mold | Slide | 2 |
| Part Material | PA | Gate | Sub Gate |
| Design Software | <3D:UG 4.0>/ <2D:CAD> |
Product Description

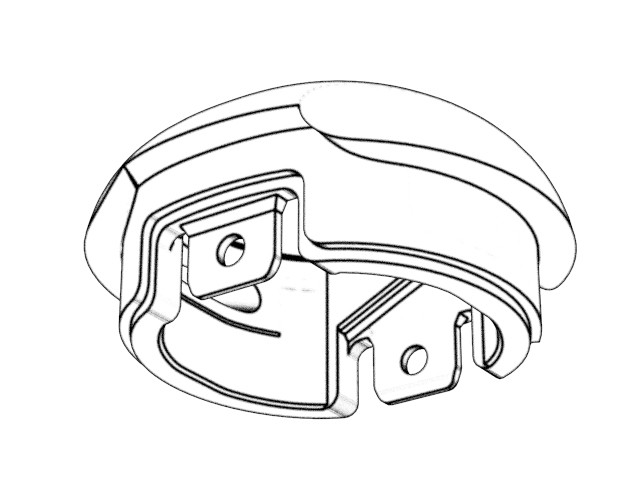

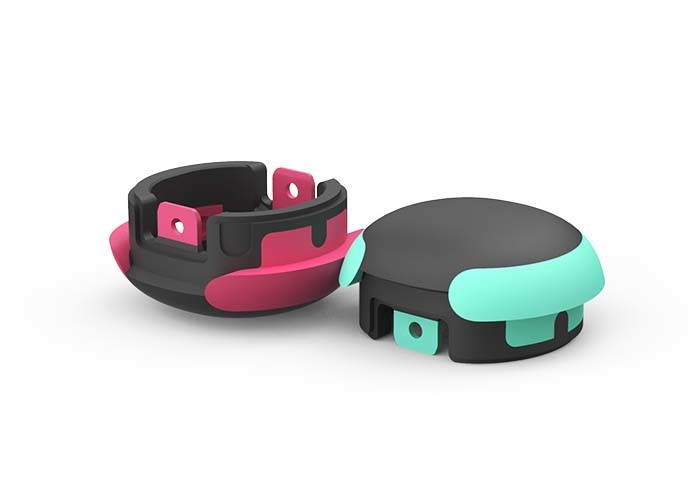

Earphone terminal (1*8)
No.23570-B
Description:
| Our company specializes in Precision Injection Molding, a highly precise and versatile manufacturing process. By injecting molten material into a mold cavity under high pressure, we are able to create complex and intricate parts with exceptional precision and accuracy. Precision Injection Molding offers several key characteristics. Firstly, it enables us to achieve tight tolerances and produce parts with intricate details, ensuring that the final products meet exact specifications and requirements. Secondly, it provides versatility in producing a wide range of products, from small and intricate components to larger parts, accommodating various shapes, sizes, and complexities. Moreover, Precision Injection Molding is cost-effective, offering advantages in material usage, production efficiency, and reduced labor costs. The process allows for high-volume production, resulting in economies of scale and lower per-unit costs. Additionally, it ensures consistent quality and uniformity in the produced parts, as the process is highly repeatable, minimizing variations and defects, and meeting required standards. Lastly, Precision Injection Molding supports a wide range of materials, including thermoplastics, elastomers, and engineering polymers, providing the flexibility to select the most suitable material for each specific application. |
Application:
electronic product
precision instrument
Toy
Mouse and keyboard
Consumer electronics products
iPad
mobile phone accessories
drone
Features:
| Size | 110 X 330 X 125mm |
| Type | Two-plates mold |
| Standard | LKM |
| Gate | Sub gate |
| Mold net weight | 27.54kg |
| Slide | 2 |
| Cavity & Core | Harden with 1*8/S136 |
| Part material/weight | PA/0.03g |
| Part size | 6.21 X 5.61 X 2.91mm |
| IMM Tonnage | 60T |

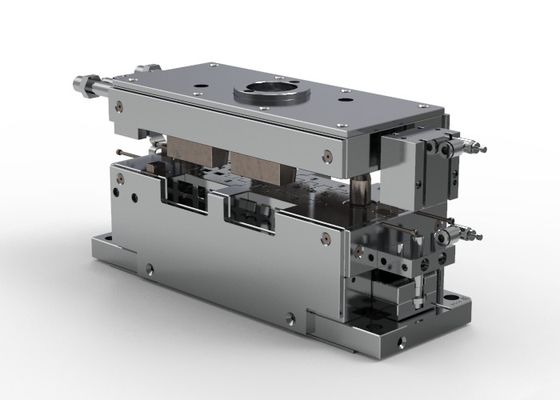

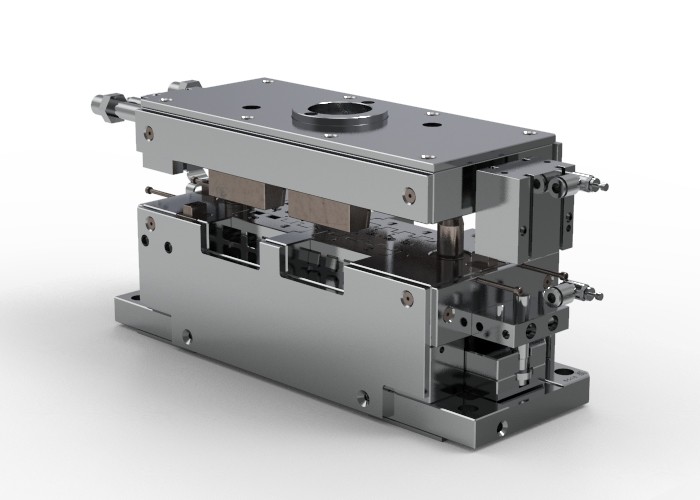

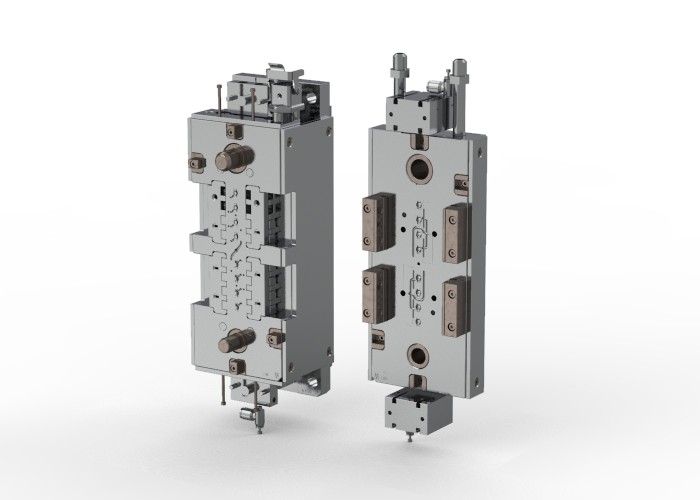

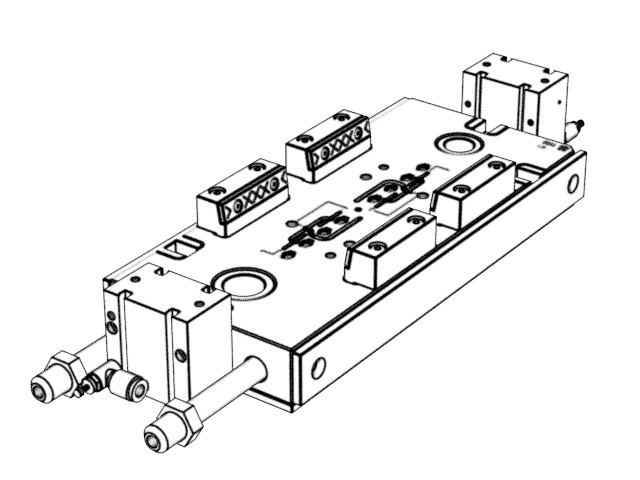

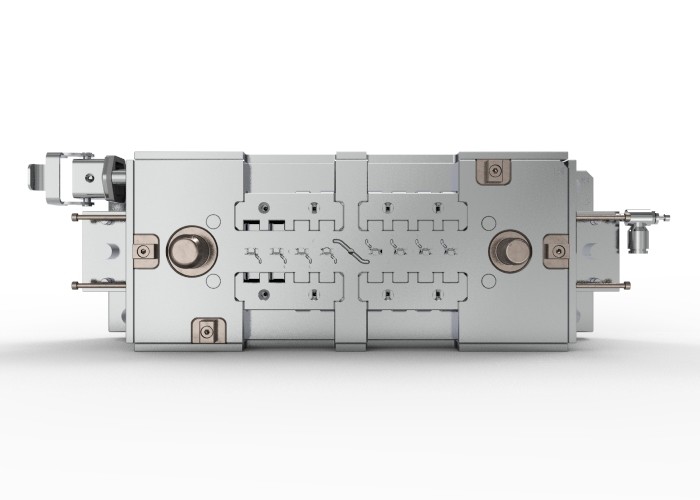

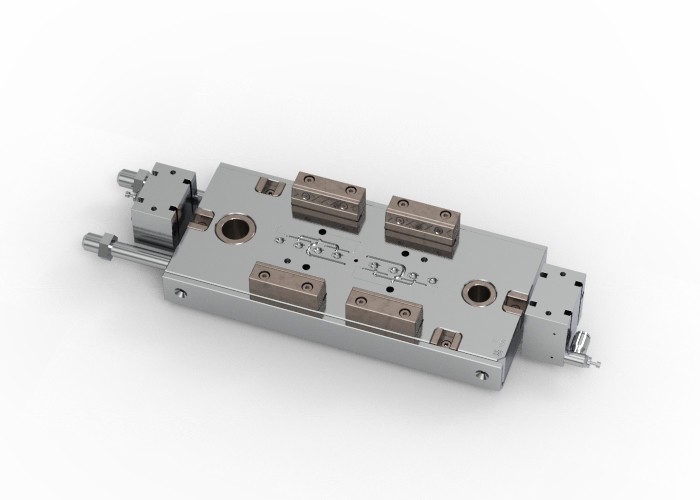

| Taking into account the cost and feasibility factors, we have devised a design for a two-plate mold equipped with a cold runner and two slides. This design ensures a scientifically sound and stable molding process, resulting in excellent fitting of the components. To enhance the overall quality, we have employed a surface polishing technique conforming to the SPI-A3 standard. Additionally, we have hardened the surface to improve smoothness, hardness, anti-wearing, and anti-corrosion properties, while also preventing the adhesion of molten PA. As a result of these measures, the molded parts exhibit a short cycle time, minimal material loss, a flawless and refined appearance, all at a low cost without compromising on quality. |
Advantage:
| Our company specializes in the production and manufacturing of precision injection molding tools, offering a range of distinct advantages within the industry. To begin with, we boast a highly skilled team of engineers and technicians who possess extensive expertise in the design and fabrication of precision injection molds. Their profound understanding of the complexities involved in mold creation ensures that we can meet the exact specifications and tolerances required for precision injection molding. Moreover, we leverage advanced technology and state-of-the-art equipment throughout our manufacturing processes. This empowers us to achieve unparalleled levels of precision and accuracy in the production of injection molds, resulting in superior quality and performance. In addition, we place a strong emphasis on quality control at every stage of the manufacturing process. Our stringent quality assurance protocols guarantee that each mold undergoes thorough inspection and testing before it is delivered to our clients. This unwavering commitment to quality ensures that our customers receive molds that not only meet their precise requirements but also deliver optimal results. Furthermore, we are dedicated to providing exceptional customer support and after-sales service. Our team is readily available to address any inquiries or concerns that our clients may have, fostering long-term relationships based on trust and satisfaction. |
Display diagram
