OEM / ODM ： Single Cavity Injection Mold & Transparent Router Bottom Housing (1*1) No.23892-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mold Weight | 1600kg | Size | 580X 600 X 560.2 |
|---|---|---|---|
| IMM Tonnage | 180T | Mould Base | LKM |
| Design Software | 3D:UG 4.0, 2D:CAD | Product Material | PC+10%GF |
Product Description

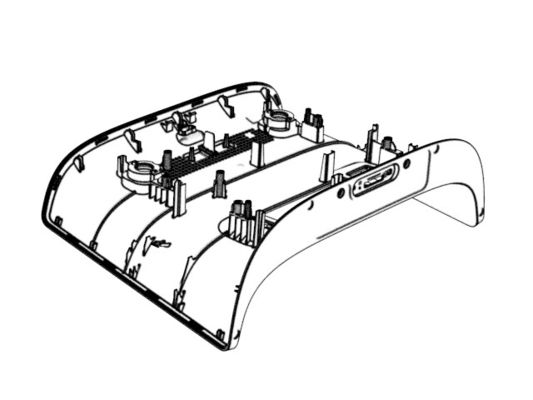

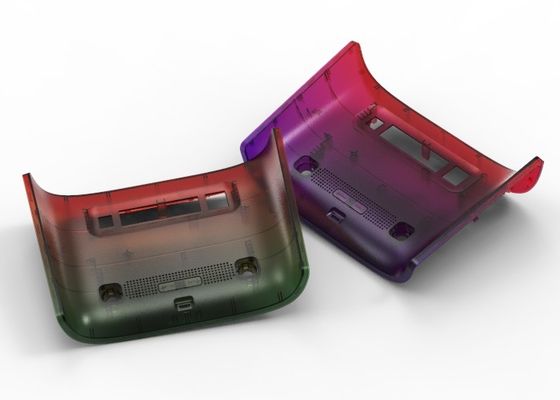

Transparent Router Bottom Housing
No.23892-B
Description:
| Our company specializes in the production of single cavity injection molds, which are meticulously designed and manufactured to meet the precise specifications of our clients. These molds are crafted using advanced CAD/CAM software and CNC machining technology, ensuring exceptional accuracy and consistency in the molding process. Our team of experienced engineers and technicians meticulously oversee every stage of production, from initial design to final inspection, to guarantee the highest quality standards are met. The single cavity injection molds we produce are tailored to optimize efficiency and precision in the injection molding process, resulting in superior quality finished products. |
Application:
router
Daily appliances
Wall breaking machine
precision instrument
Features:
| Mold base | DCI5060 120150120 |
| Type | Three-plate mold |
| Size | 580X 600 X 560.2 |
| Standard | LKM |
| Gate | Point gate + side gate |
| Injection/runner type | Hot runner |
| Features | |
| I. Two core slide | II. Four core slanting |
| III. 10 core tunnel slide | Ⅳ. 19 angular lifters |
| Surface treatment | |
| ⑴ Grade I critical surface treated with VDI27# pattern | |
| ⑵ Grade I critical surface treated with Charmilles VDI18# | |
| Material of mold cavity and mold core |
Quenched (1*1/S136) |
| Mold net weight | 1600kg |
| Tonnage of forming machine | 180T |
| Product material | PC+ABS |
| Product net weight/size | 74.47g |
| Product net weight/size | 127.00x182.07x59.79mm |
Advantage:
| Our company's single cavity injection molds offer several distinct advantages. Firstly, our molds are engineered with precision to ensure the highest level of accuracy and consistency in the injection molding process. This results in the production of high-quality, uniform parts with minimal waste. Additionally, our molds are designed to optimize cycle times, thereby increasing production efficiency and reducing overall manufacturing costs. Furthermore, our expertise in material selection and mold design allows us to create molds that are durable and long-lasting, contributing to cost savings over time. Lastly, our commitment to quality control and rigorous testing procedures ensures that each mold meets the strictest industry standards, providing our clients with reliable and consistent performance. |

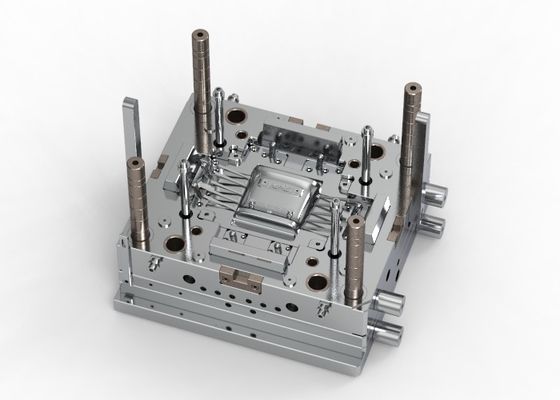

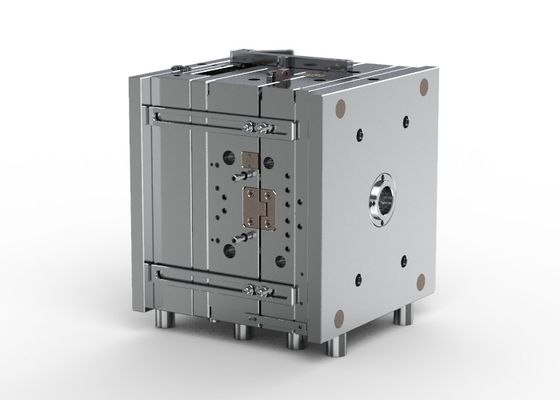

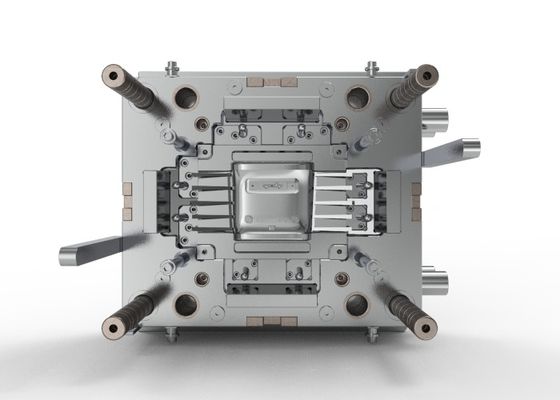

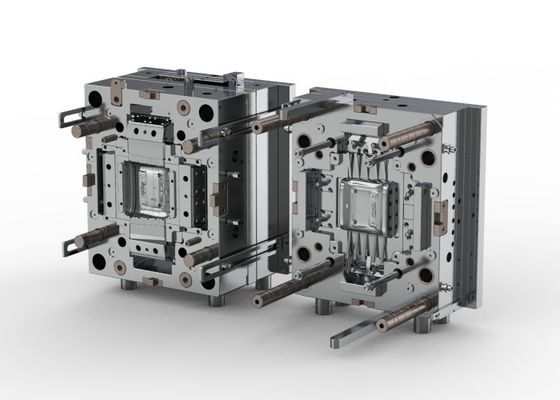

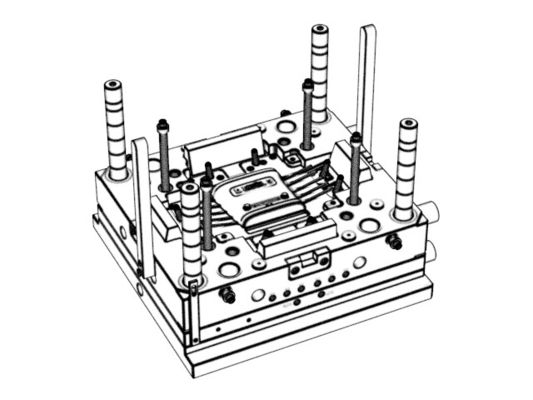

Display diagram
