OEM / ODM ： Single Cavity Injection Mold & Router Bottom Housing (1*1) No.23892-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Material | PC+ABS | IMM Tonnage | 180T |
|---|---|---|---|
| Size | 580X 600 X 560.2mm | Mold Weight | 1600kg |
| Gate | Pin Point Gate+Side Gate | Part Material | PC+ABS |
| Mould Material | S136 |
Product Description

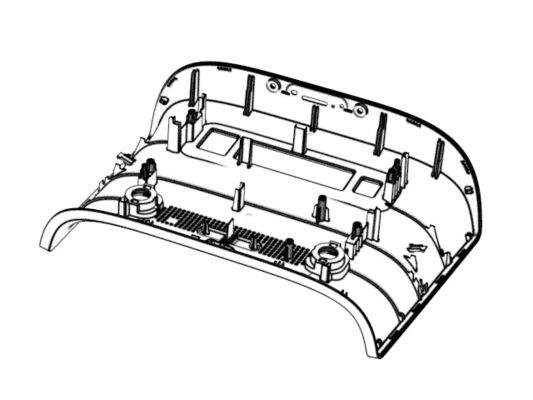

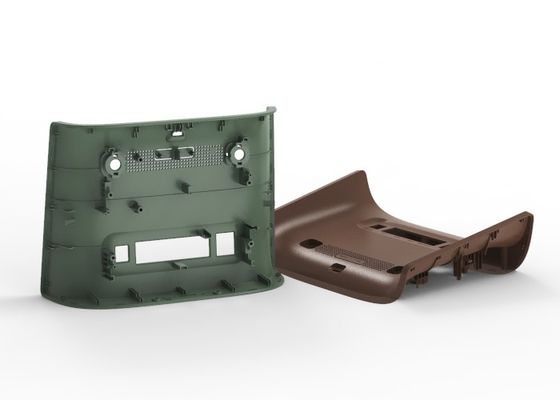

Router Bottom Housing (1*1)
No.23892-B
Description:
| Our company prides itself on crafting single cavity injection molds that embody precision and sophistication. Each mold is a testament to our unwavering commitment to meeting the exacting requirements of our clients. Utilizing cutting-edge CAD/CAM software and CNC machining technology, we ensure that every mold delivers unparalleled accuracy and uniformity throughout the molding process. Our seasoned team of engineers and technicians meticulously shepherd each mold through every stage of production, from its initial design to the final inspection, ensuring that our stringent quality standards are consistently upheld. The single cavity injection molds we produce are meticulously tailored to enhance efficiency and precision in the injection molding process, resulting in the creation of superior quality finished products. |
Application:
router
Daily appliances
3C digital products
Precision housing
Features:
| Mold base P/N | DCI5060 120150120 |
| Standard | LKM |
| Size | 580X 600 X 560.2 mm |
| Gate | Pin Point gate+Side gate |
| Type | Three-plates mold |
|
The mold with pin point gate + side gate, low injection pressure loss, easy to de-gating, flexible in filling pattern and easy to mold manufacturing. |
|
| Material | PC+ABS |
| Injection/runner type | Hot runner |
|
With short molding cycle time, and no material loss of cold runner, high automation degree,and good for part cosmetic. |
|
| Injection/runner type | Hot runner |
|
With short molding cycle time, and no material loss of cold runner, high automation degree,and good for part cosmetic. |
|
| Features | 2x core slides (4x core angled slides) 10xcore tunnel slides) 19x lifters |
| Surface Finish | |
| ⑴ A surface etch with VDI3400-27# | |
| ⑵ A surface EDM with Charmilles VDI3400-18# | |
| Steel of cavity & core | Harden (1*1/S136) |
|
Better roughness, hardness,anti-wearing and anti-corrosion |
|
|
Better roughness, hardness,anti-wearing and anti-corrosion |
|
| Mold Net Weight | 1600kg |
| IMM Tonnage | 180T |
| Part Net Weight | 74.47g |
| Part Overall Size | 127.00x182.07x59.79mm |
Advantage:
| Our company's single cavity injection molds embody a commitment to precision and excellence. Crafted with meticulous attention to detail, these molds are designed to elevate the art of injection molding, ensuring that each product manufactured is a testament to quality and sophistication. By seamlessly integrating form and function, our molds enable the creation of flawless, uniform parts, reflecting the seamless fusion of technology and craftsmanship. Our dedication to pushing the boundaries of what's possible in mold design results in molds that not only meet industry standards but exceed them, quietly setting new benchmarks for performance and reliability. |

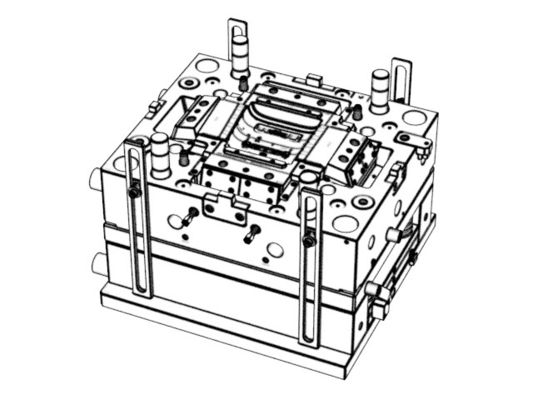

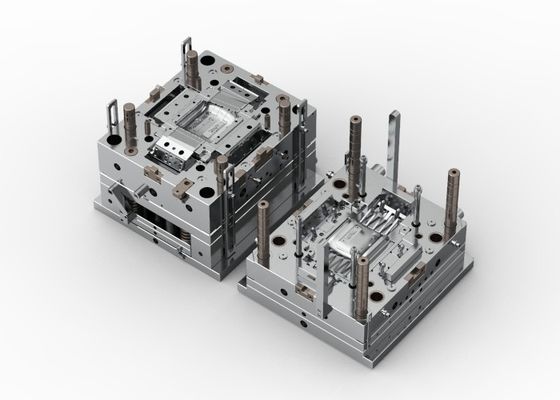

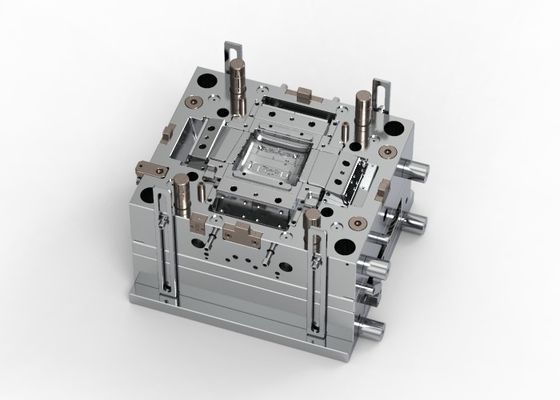

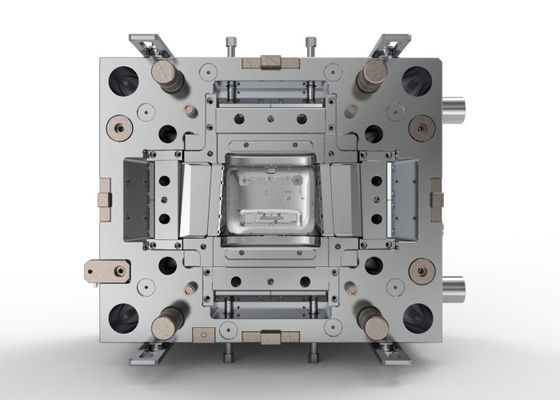

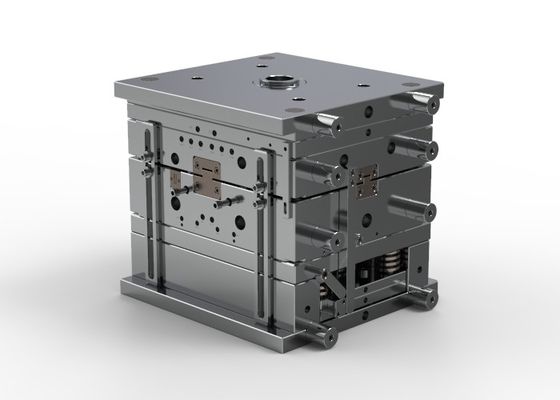

Display diagram
