OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Doorbell |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Service Life | Up To 500K Shots/life Time | Product Material | PC/TPU |
|---|---|---|---|
| Feature | Two-slide | Standard | LKM |
| Size | L 230 X W 440 X H 316 | IMM Tonnage | 140T |
| Net Weight | 530kg |
Product Description

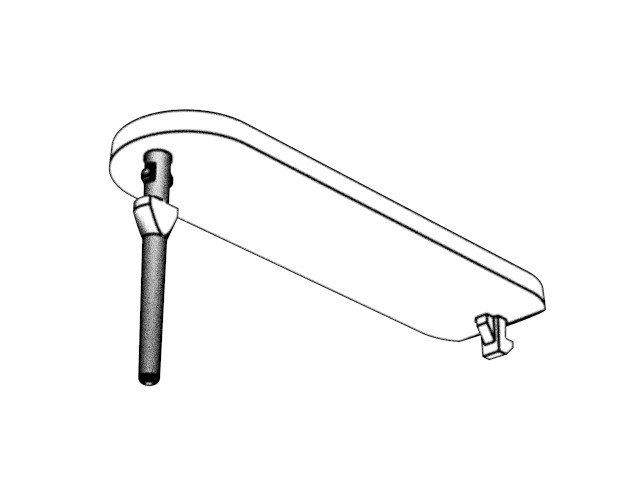

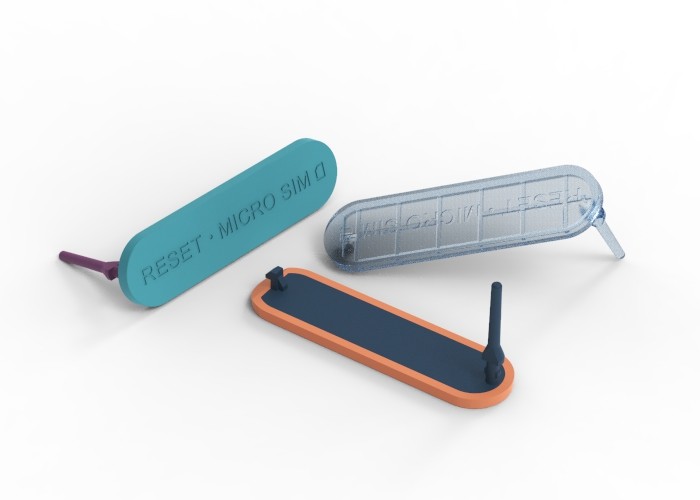

Router Keys (1*4)
No.23894 & 23895-B
Description:
| Double injection molding, also known as 2-shot molding or 2K molding, is a highly specialized manufacturing process that allows for the production of complex, multi-material components in a single operation. This process involves the use of two different materials or colors to produce a single part with two different properties or appearances. The first material is injected into the mold to form the initial shape and is then overmolded with the second material to create the final part. Double injection molding offers several advantages, including improved part quality, reduced assembly and labor costs, and enhanced design flexibility. By combining two materials with different properties, manufacturers can create parts with improved functionality, durability, and aesthetic appeal. This process is commonly used in the production of automotive components, consumer electronics, medical devices, and household appliances. |
Application:
Precision plastic parts
Product shell
Home appliance accessories
VR
Daily necessities
Features:
| Mold base P/N | FCI2335 709080 |
| Size | L 230 x W 440 x H 316 mm |
| Gate | Overlap gate + pin point gate |
| Tool life | 500k shots |
| Net weight | 530kg |
| IMM Tonnage | 140T |
| Type | Three-plates mold |
| Part material | PC/TPU |
| Part weight | 0.36g |
| Part overall size | 7.90 X 29.85 X 1.60mm |
| Injection type | Cold runner |
| Runner type | Cold runner |
| Features | Two-slides |
| Standard | LKM (Chinese general injection mold standard) |
| Steel of cavity & core | Harden (1*4/S136)
(use harden steel for cavity and core, with good hardness and preformation of anti-wearing/ anti-corrosion) |
| Surface finish | |
| ⑴ A surface etch with VDI3400-27# | |
|
⑵ TPU surface EDM with Makino VDI3400-18# |
|
Advantage:
| Our company's double injection molding molds offer several distinct advantages in the manufacturing process. Firstly, these molds enable the production of complex, multi-material components in a single operation, reducing the need for additional assembly and minimizing production time. This results in cost savings and improved efficiency. Secondly, the use of two different materials or colors in a single part allows for enhanced functionality and aesthetic appeal, providing a competitive edge in the market. Additionally, the precise and intricate design capabilities of our double injection molding molds ensure high part quality and consistency, meeting the stringent requirements of various industries. Furthermore, the versatility of these molds allows for greater design flexibility, enabling the creation of innovative and unique products. Overall, our double injection molding molds contribute to improved product quality, reduced production costs, and increased competitiveness in the market. |

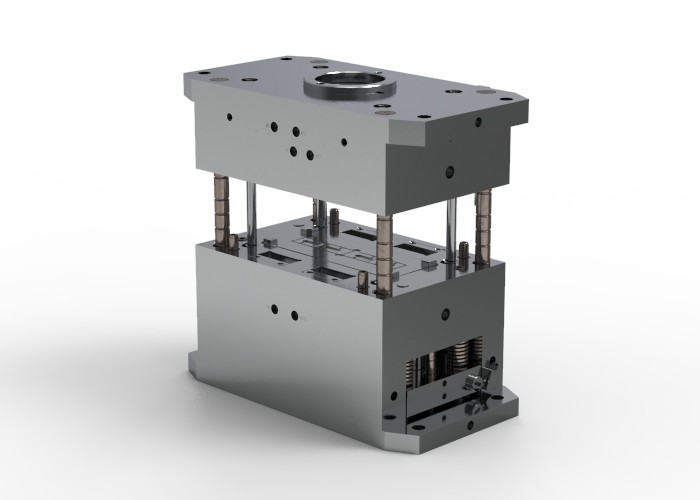

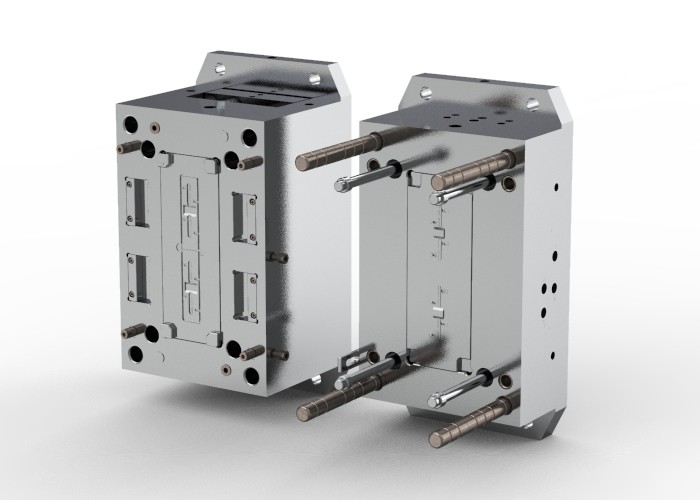

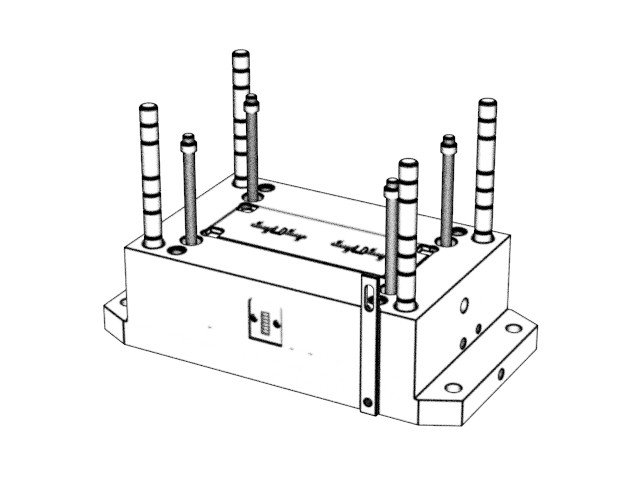

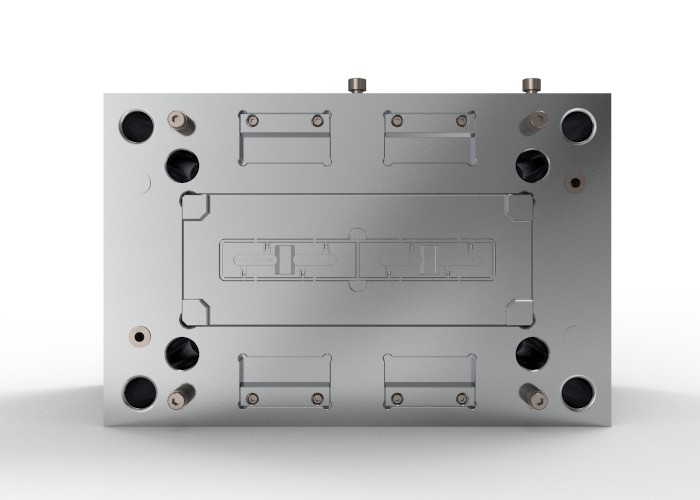

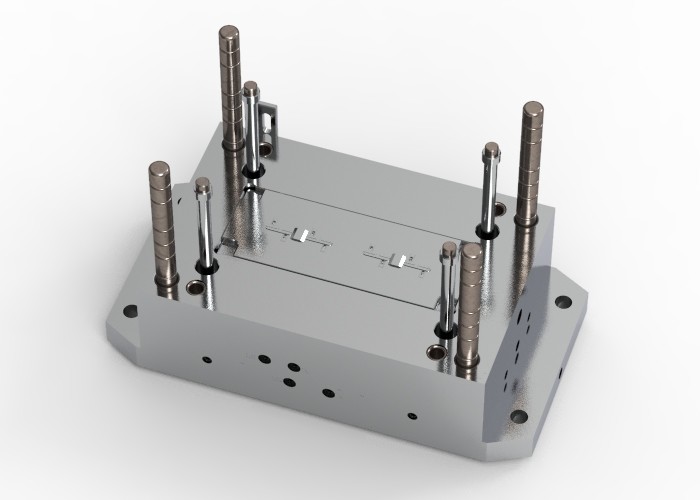

Display diagram
