OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B

Place of Origin India
Brand Name Chitwing
Certification ISO 9001:2015
Model Number In-Car Products
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 200 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 400.00 X 500.00 X 527.00 IMM Tonnage 220T
Mold Weight 708kg Part Material PC
Gate Pin Point Gate Injection/runner Type Hot Runner
Steel Of Cavity & Core Harden (1*4/S136) Manufacture China Injection Mould
High Light

ODM Multi Cavity Injection Mold

,

Multi Cavity Injection Mold No.23915-B

Leave a Message
Product Description

On-board Universal Joint Lock Nut (1*4)
No.23915-B

Description:


As a leading manufacturer of injection molds, we at Chitwing are proud to present our latest innovation - the "Multi Cavity Injection Mold". Engineered for efficient and high-volume production, this advanced injection mold offers unparalleled performance and reliability.
The "Multi Cavity Injection Mold" features a unique design that allows for the production of multiple parts simultaneously. This results in a significant increase in productivity, as multiple parts can be produced in a single cycle of the injection molding machine. Additionally, the mold's optimized cooling system ensures even cooling and faster cycle times, further enhancing productivity.
Our "Multi Cavity Injection Mold" is made from the finest quality materials and is precision-machined to exacting standards. The robust construction and heavy-duty components ensure its longevity and ability to withstand the harshest production environments. The mold's easy-to-use interface and intuitive controls make operation simple and efficient, even for novice operators.
At Chitwing , we pride ourselves on our commitment to innovation and quality. The "Multi Cavity Injection Mold" is a testament to our dedication to providing our clients with the best possible solutions for their injection molding needs. Through our continued investment in research and development, we are confident that we can deliver the most advanced and cost-effective injection molding solutions to the market.


Application:

Plastic universal lock
plastic hardware
Plastic connector

Features:


 Mold size/net weight  (L) 400x (W) 500x (H) 527mm /708 kg
 Mold base P/N  FCI3550 7010070
 Standard  LKM
 Part material  PC
 Molding size  30.91 X 47.60 X 14.45mm, weight about 7.75g/pcs
 IMM Tonnage  220T
 Injection/runner type  Hot runner
 Gate  Pin point gate

 This is a 3-plates mold, filling easy and evenly, short cycle time,self-degating. With the hot
 runner and pin point gate, during the filling phase, the flow rate and temperature of melt
 rises, can get clearer,good glossiness parts.
 The gate is flexible in position, and is molded without scrap runner, and no post processing
 is required,which greatly saves the raw material cost and molding cost

 Surface finish  Steel of cavity & core
 A surface EDM with VDI24#  Harden (1*4/S136)

 touch-friendly surface, with certain
 glossiness and roughness.

 harded cavity and core, high hardness and
 anti-wearing, anti-corrosion.



Advantage:






As a leading manufacturer specializing in injection molds, our company's latest product, the "Multi Cavity Injection Mold", is an innovative and highly effective solution for mass production.
Boasting a unique design, the "Multi Cavity Injection Mold" enables the production of multiple parts simultaneously, resulting in a significant increase in productivity. With its optimized cooling system, the mold ensures even cooling and faster cycle times, further enhancing productivity.
Manufactured from the highest quality materials and precision-machined to exacting standards, our "Multi Cavity Injection Mold" is built to last. Its robust construction and heavy-duty components ensure its longevity and ability to withstand the harshest production environments. Additionally, the easy-to-use interface and intuitive controls simplify operation and enhance efficiency, even for novice operators.
At our company, we pride ourselves on our commitment to innovation and quality. The "Multi Cavity Injection Mold" is a testament to our dedication to providing the best possible solutions for our clients' injection molding needs. Through our continuous investment in research and development, we are confident in delivering the most advanced and cost-effective injection molding solutions to the market.

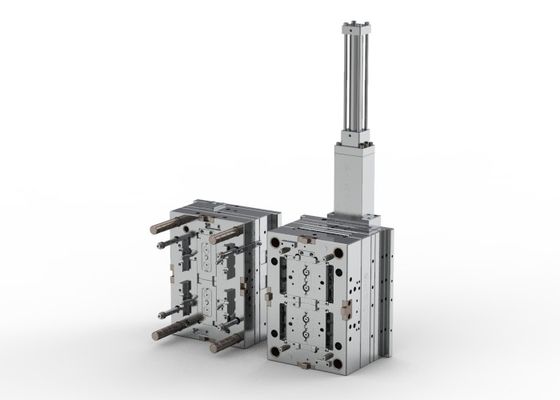

OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 0

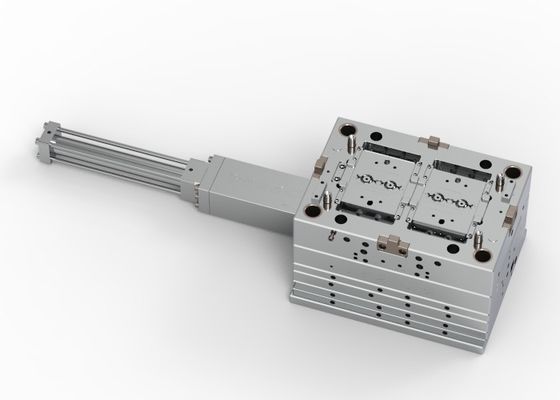

OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 1

OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 2

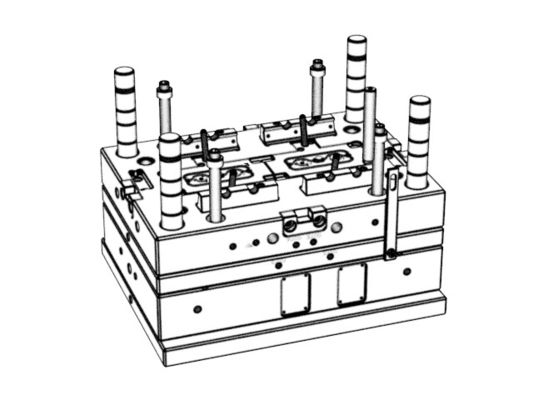

Display diagram

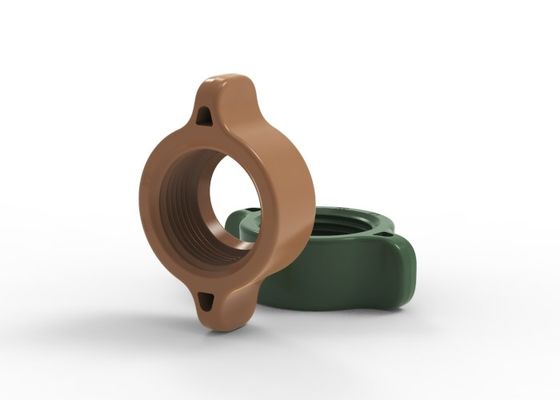

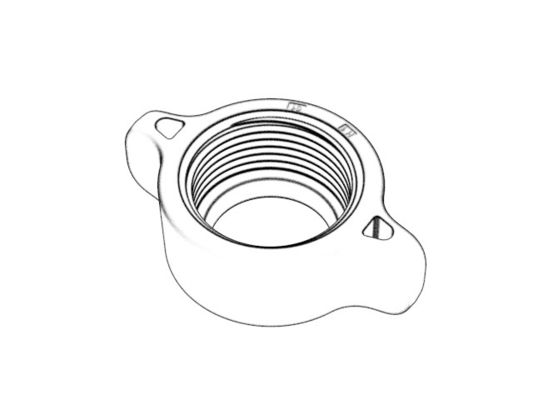

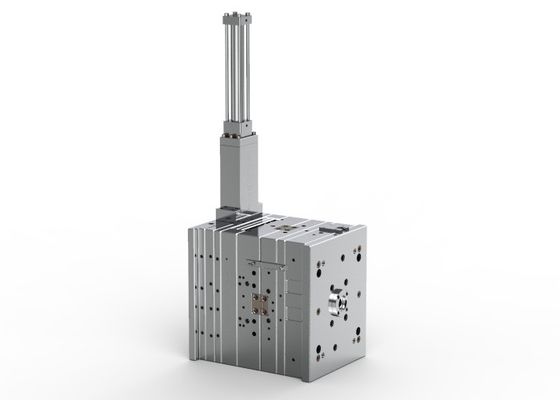

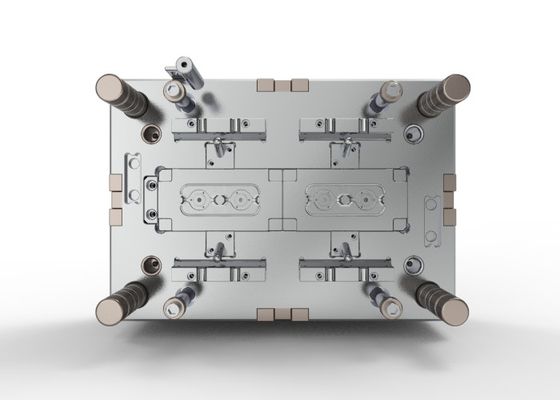

OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 3OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 4OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 5OEM / ODM : Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915-B 6
