OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Ball Head (1*4) No.24118-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 500.000 X 482 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 122kg | Standard | LKM |
| Type | Three-plates Mold | Net Weight | 122kg |
| Mold Base P/N | FCI405070120100 | Gate | Pin Point Gate |
| High Light | Multi Cavity Injection Mold ODM,Transparent Multi Cavity Injection Mold |
||
Product Description

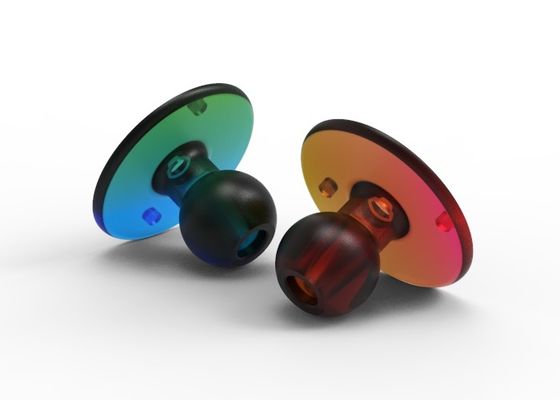

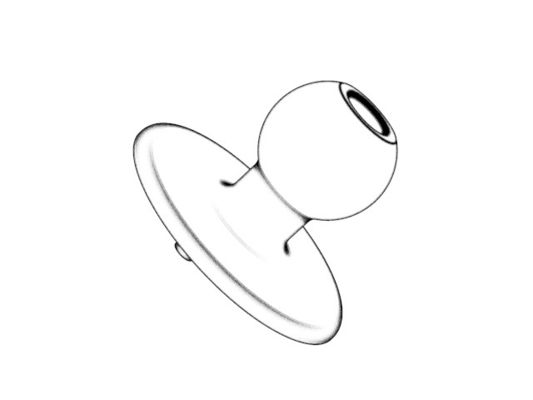

Transparent On-board
Universal Joint Ball Head (1*4)
No.24118-B
Description:
| Our company specializes in the production of Multi Cavity Injection Molds, which are engineered to enable the simultaneous production of multiple identical parts within a single molding cycle. These molds are intricately designed to ensure uniform part quality and consistency across all cavities, thereby optimizing production efficiency and reducing cycle times. The durable construction of our Multi Cavity Injection Molds ensures longevity and reliability, leading to cost savings and sustained high-volume manufacturing capabilities. Furthermore, our molds are customizable to accommodate a diverse range of part geometries and material specifications, offering versatility and adaptability to meet various production needs. |
Application:
plastic hardware
Connecting injection molded parts
Daily necessities
Industrial injection molding products
Features:
| Standard | LKM | |
| Type | Three-plates mold | |
| Net weight | 122kg | |
| Mold base P/N | FCI405070120100 | |
| IMM Tonnage | 220 | |
| Mold size | Length | 450 |
| Width | 500 | |
| Height | 482 | |
| Gate | Pin point gate(The gate is automatically cut off, with small trace) | |
| Tool life | 500k shots | |
| Surface finish | Inner surface treated with SPI-B2 | |
| With polished, molded part get smooth and accurate surface. | ||
| Steel of cavity & core | Harden (1*4/S136) | |
|
Harded cavity and core, high hardness and anti-wearing, anti-corrosion. |
||
| Part material | PC | |
| Part weight/size | 0.01g/4.97 X 4.97 X 0.60mm | |
| Injection/runner type | Hot runner | |
Advantage:
| Our company's Multi Cavity Injection Molds are meticulously crafted to revolutionize the manufacturing process. By enabling the simultaneous production of multiple identical parts within a single molding cycle, these molds significantly enhance production efficiency and reduce lead times. The precision engineering of our molds ensures consistent part quality across all cavities, resulting in high-quality finished products. Moreover, the robust construction of our Multi Cavity Injection Molds guarantees longevity and reliability, leading to cost savings and sustained high-volume manufacturing capabilities. Additionally, the customizable nature of our molds allows for the accommodation of diverse part geometries and material specifications, providing adaptability to meet a wide range of production needs. |

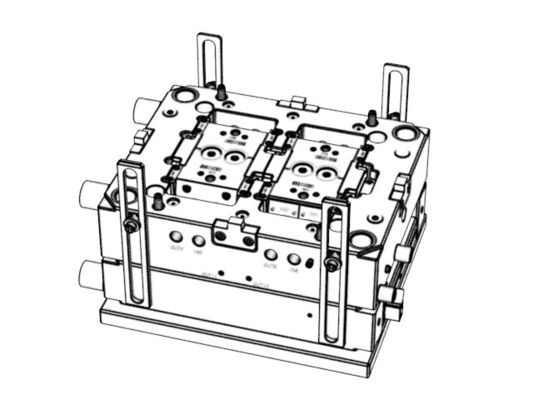

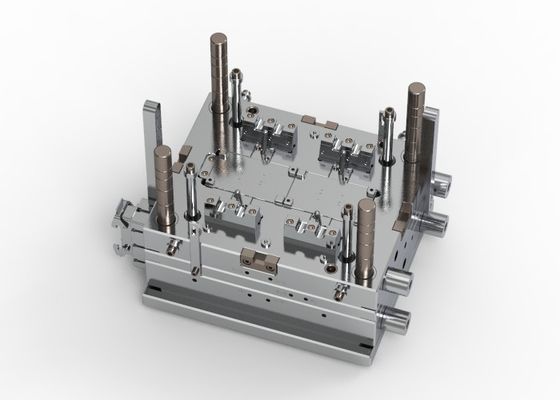

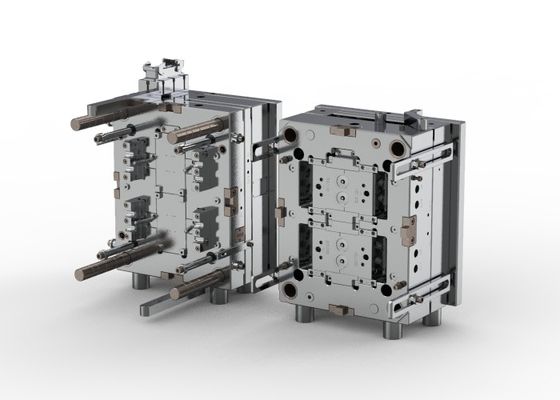

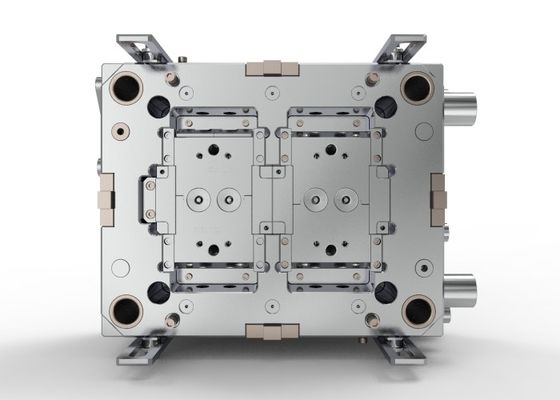

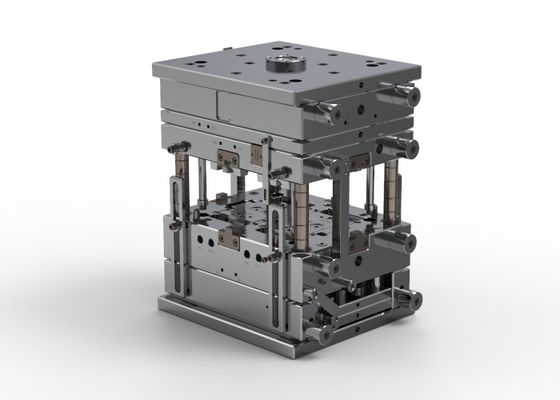

Display diagram
