OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Ball Head (1*4) No.24118-B
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.000 X 500.000 X 482 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 122kg | Standard | LKM |
| Type | Three-plates Mold | Steel Of Cavity & Core | Harden (1*4/S136) |
| Part Material | PC | Part Weight | 0.01g |
| High Light | PC Multi Cavity Injection Mold,Joint Ball Head Multi Cavity Injection Mold |
||
Product Description

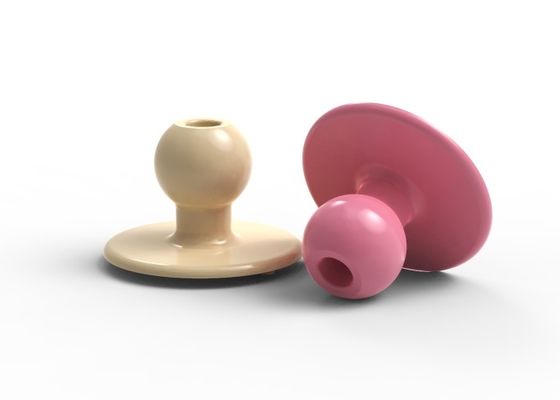

On-board Universal Joint Ball Head (1*4)
No.24118-B
Description:
| Our company specializes in the production of Multi Cavity Injection Molds, which are meticulously engineered to facilitate the simultaneous production of multiple identical parts in a single molding cycle. These molds are designed with precision to ensure uniform part quality and consistency across all cavities, thereby maximizing production efficiency and minimizing cycle times. The robust construction of our Multi Cavity Injection Molds ensures durability and longevity, contributing to cost-effectiveness and sustained high-volume manufacturing capabilities. Additionally, our molds are customizable to accommodate various part geometries and material specifications, providing versatility and adaptability to diverse production requirements. |
Application:
Universal wheel accessories
Plastic connector
Daily injection molded parts
Daily necessities
Features:
| Mold base P/N | FCI405070120100 | |
| Standard | LKM | |
| Type | Three-plates mold | |
| Mold size | Length | 450 |
| Width | 500 | |
| Height | 482 | |
| Gate | Pin point gate | |
| Injection/runner type | Hot runner | |
| Part material | PC | |
| Part weight | 0.01g | |
| Part size | 4.97 X 4.97 X 0.60mm | |
| Tool life | Up to 500K shots | |
| Mold net weight | 122kg | |
| IMM Tonnage | 220T | |
| Surface finish | Inner surface treated with SPI-B2 | |
| Steel of cavity & core | Harden (1*4/S136) | |
Advantage:
| Our company's Multi Cavity Injection Molds are designed to revolutionize the manufacturing process. By enabling the simultaneous production of multiple identical parts within a single molding cycle, these molds significantly enhance production efficiency and reduce lead times. The precision engineering of our molds ensures consistent part quality across all cavities, resulting in high-quality finished products. Moreover, the robust construction of our Multi Cavity Injection Molds guarantees longevity and reliability, leading to cost savings and sustained high-volume manufacturing capabilities. Additionally, the customizable nature of our molds allows for the accommodation of diverse part geometries and material specifications, providing adaptability to meet a wide range of production needs. |

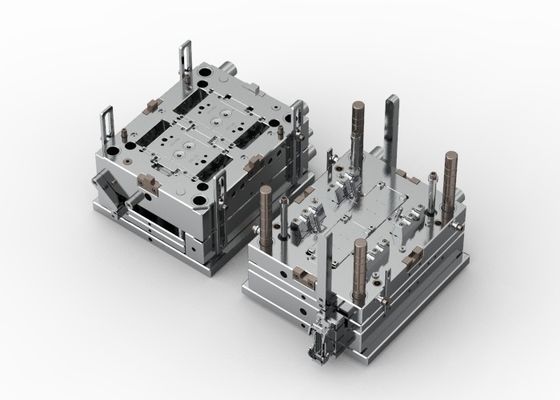

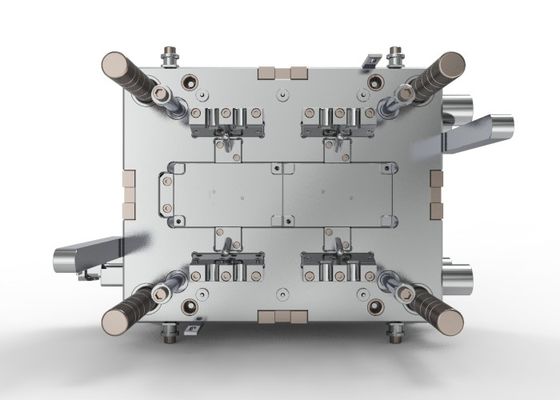

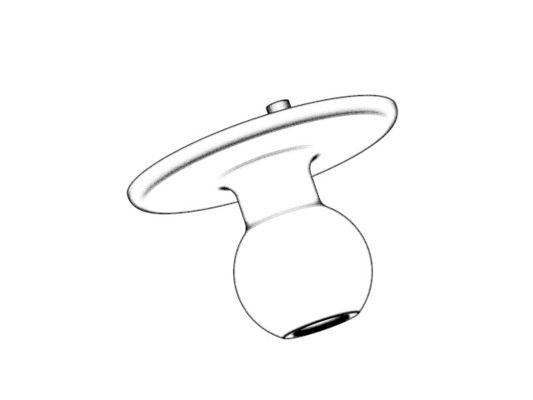

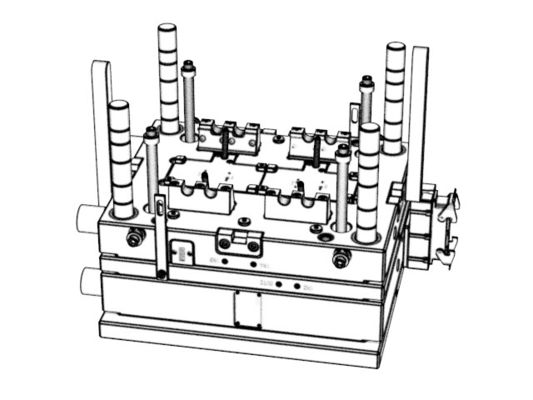

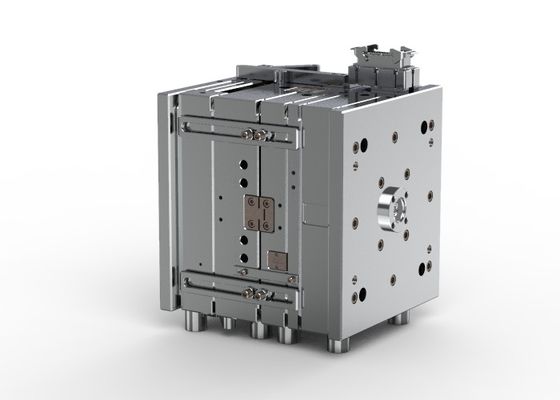

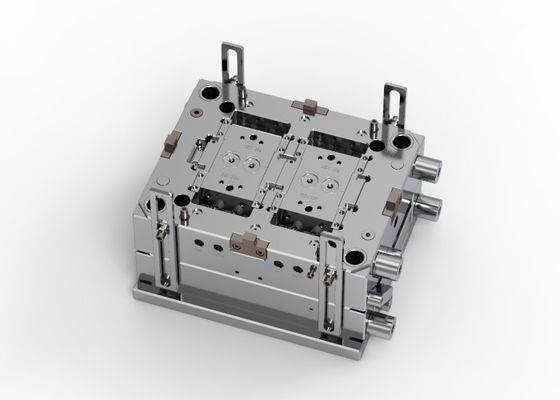

Display diagram
| Mold base P/N: FCI405070120100 | |||||
| Length | 450 | Standard | Type | ||
| Width | 500 | LKM | Three-plates mold | ||
| Height | 482 |
||||
