400mm Transparent Shell 1x1 Cold Runner Two Plate Mold No.19014-C
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 400.000 X 386.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 390KG | Slide | 1 |
| Lifter | 8 | Standard | LKM |
| Mold Base | Standard GCI3540.90120100 | ||
| High Light | Cold Runner Mold for Transparent Shell,1x1 Cold Runner Two Plate Mold |
||
Product Description
Transparent Shell (1*1)
No.19014-C
Description:
| The Cold Runner Two Plate Mold is a precision-engineered mold designed for the efficient production of plastic parts. It features a two-plate design, allowing for the separation of the mold to release the molded parts. The cold runner system is meticulously designed to minimize gate marks, ensuring a high-quality surface finish on the molded parts. This mold is built on a standard mold base and follows industry-standard specifications for reliability and consistency |
Application:
VR products
digital watch strap
digital shell
Smart wearable accessories
Features:

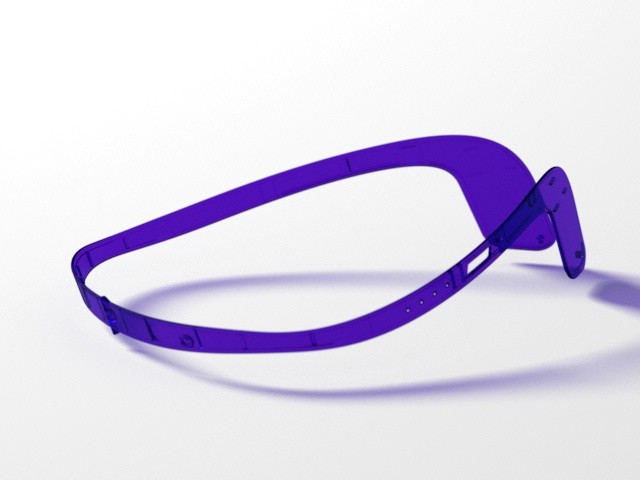

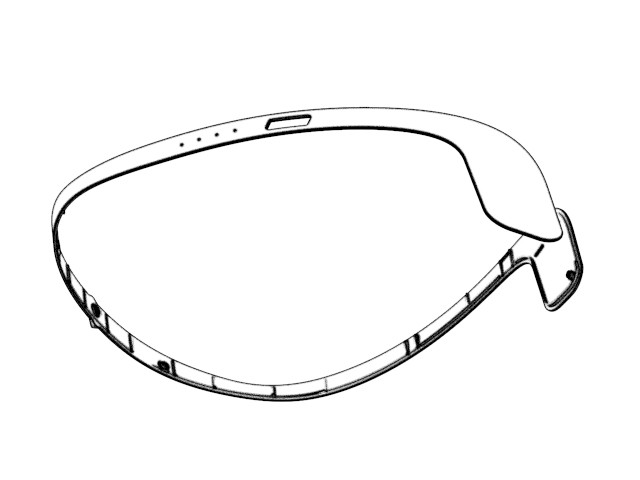

| It's built on a standard GCI3540.90120100 mold base and follows the LKM mold standard. The dimensions are 400mm in length, 400mm in width, and 386mm in height. This bad boy features slide and 8 lifters, and uses a side gate (the pin point gate turns to the side gate). It's a two-plate mold, meaning it has two main plates that separate to release the molded part. The cold runner system in its design minimizes gate marks, while the surface is mirror EDM with VDI 10# to achieve high glossiness and low roughness. As a result, the molded part is free of sticking. The steel used for injection/runner is Harden (1*1/S136). The core, sub-inserts, movable inserts, ejector rod, and sprue bush are made using steel with a hardness greater than 40HRC, which undergoes a surface hardening process. This results in a mold with high hardness and excellent anti-wear performance, with a tool life of up to 500K shots and stable cavity pressure. The molded part has uniform thickness, a smooth surface, and clear details, without any gas marks, bubbles, or flow marks. The part material is PC, with the size of 130.92 X 165.60 X 62.06mm, and the weight of 10g. |
Advantage:
| Our company specializes in the production of Cold Runner Two Plate Molds, which are designed to efficiently and precisely manufacture plastic parts. These molds are engineered with high-quality materials and advanced technology to ensure optimal performance and durability. The Cold Runner system allows for the injection of plastic material into the mold, resulting in consistent and high-quality parts. With our Cold Runner Two Plate Mold, customers can expect reliable and cost-effective solutions for their plastic molding needs. |

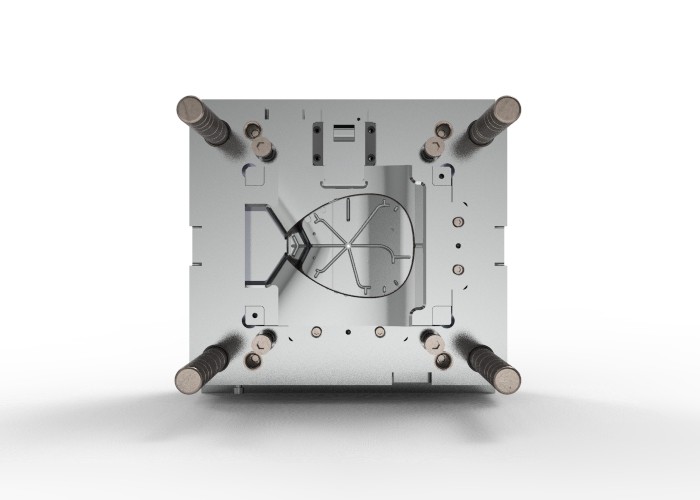

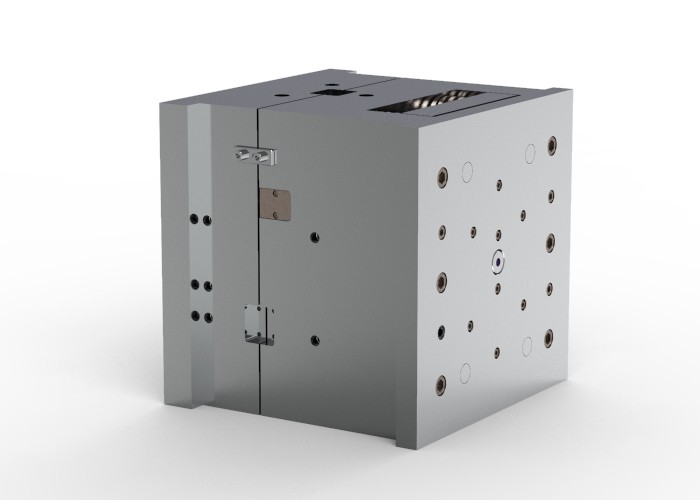

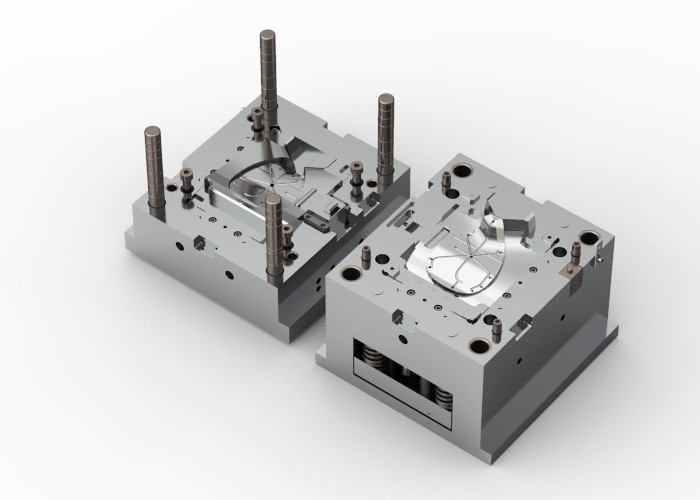

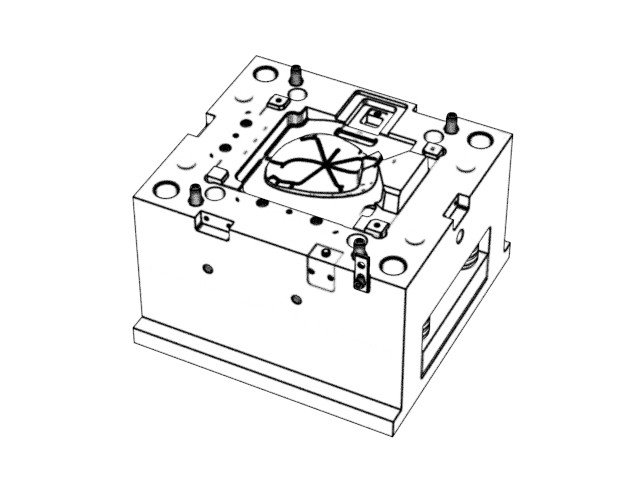

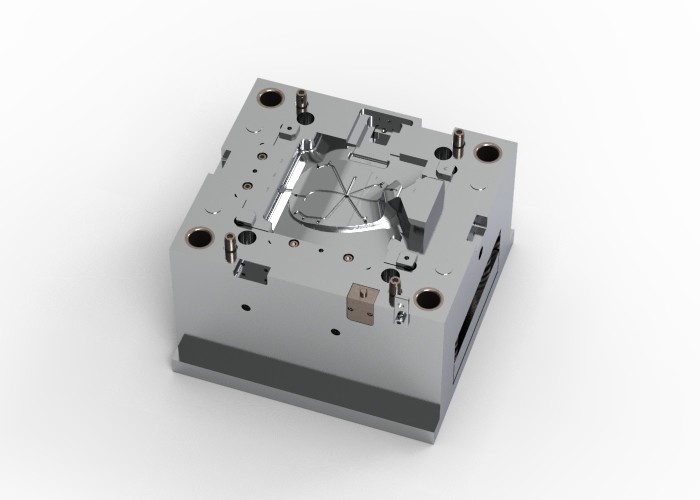

Display diagram
