OEM / ODM Transparent Shell Injection Mold 1x1 Cold Runner plastic molding No.19014-D
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 400.000 X 386.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 390KG | Slide | 1 |
| Lifter | 8 | Standard | LKM |
| Mold Base | Standard GCI3540.90120100 | ||
| High Light | Transparent Shell Injection Mold,Shell Injection Mold 1x1,Cold Runner Shell Injection Mold |
||
Product Description
OEM/ODM Transparent Shell 1x1
Cold Runner plastic molding No.19014-D
No.19014 - D
Description:
| The Dual-Plate Precision Mold A meticulously engineered dual-plate mold designed for efficient plastic part production. Featuring a two-plate design that separates to release molded pieces. The cold runner system is carefully planned to minimize gate marks, ensuring a flawless surface finish on molded components. Built on a standard base conforming to industry specifications for reliability and consistency. |
Application:
VR
watch strap
Smart wearable
Features:
|
The Advanced Dual-Plate Mold This precision-engineered dual-plate mold follows standard GCI3540.90120100 dimensions and LKM mold specifications. Measuring 400mm x 400mm x 386mm, it features 8 lifting slides and a side-gated nozzle. The two-plate design separates to release molded parts.
The meticulously designed cold runner minimizes gate marks, while mirror-finish EDM at VDI 10# achieves a high gloss and low roughness for molded components. As a result, parts release smoothly without sticking.

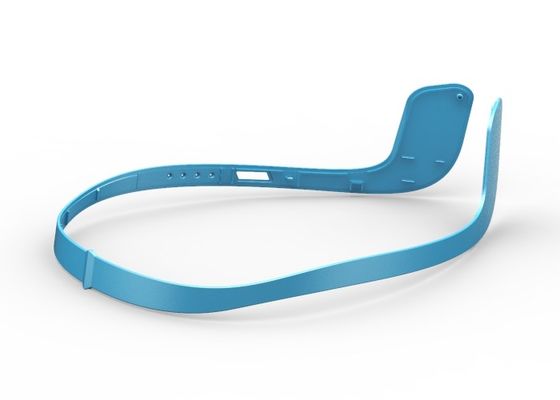

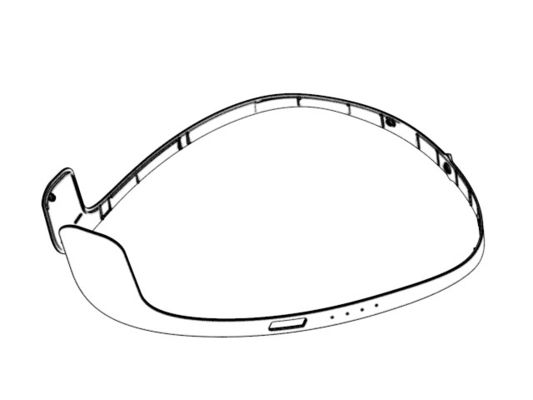

Injection steel is Harden grade (1*1/S136) for durability. Core, inserts, ejectors and sprue bush are over 40HRC steel for wear-resistance after surface hardening. This enables up to 500,000 shot lifespan with stable cavity pressure. Molded PC parts measure 130.92 X 165.60 X 62.06mm, weighing 10g each. Uniform thickness, smooth surfaces and clear details lack bubbles, flows or gas marks.
|
Advantage:
|
Precision Plastic Production with Cold Runner Two Plate Molds
Our company specializes in producing high-quality Cold Runner Two Plate Molds. Engineered with durable materials and advanced manufacturing techniques, these molds efficiently and precisely manufacture plastic parts.
The cold runner system allows for consistent injection of plastic material into the mold cavity. This results in parts with uniform quality and minimal gate marks or other defects.
Customers can rely on our Cold Runner Two Plate Molds for cost-effective and reliable plastic molding solutions. Whether producing low or high volumes, these precision molds ensure optimal performance run after run.
|

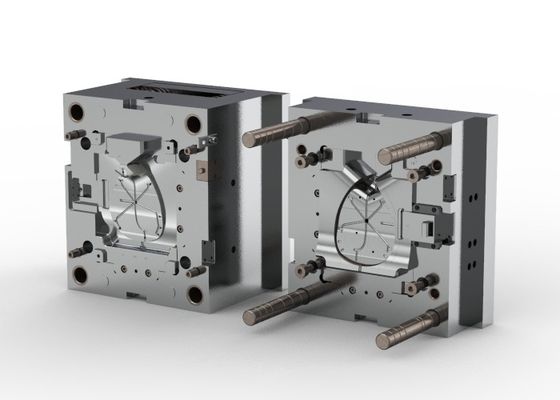

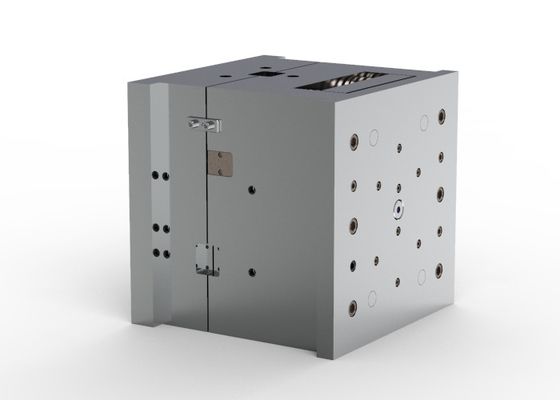

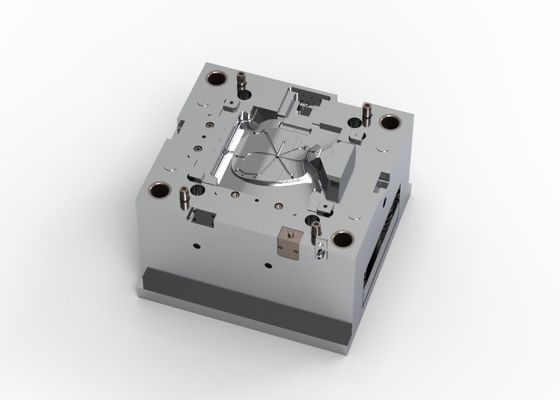

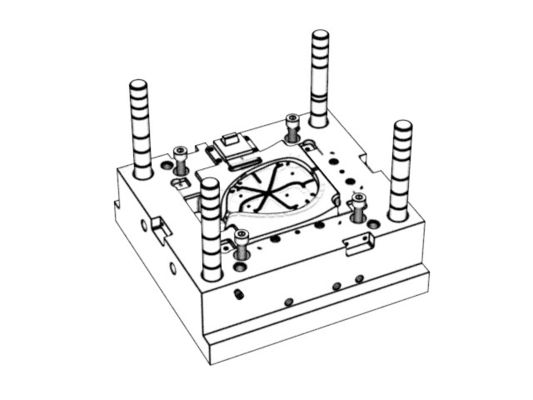

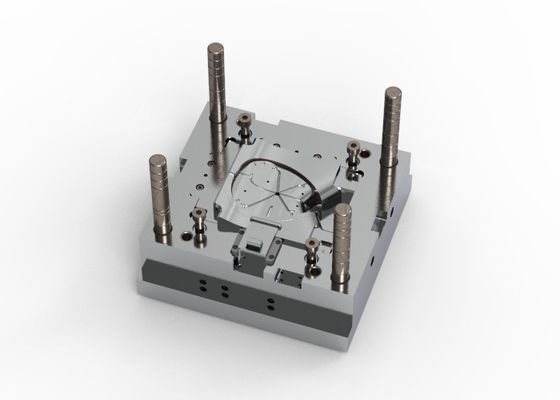

Display diagram
