OEM / ODM Shell Single Cavity Injection Mold (1*1) Cold Runner No.19014-D
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Cavity Injection Mold | Size | 400 X 400 X 386mm |
|---|---|---|---|
| IMM Tonnage | 180(T) | Mold Weight | 390(KG) |
| Standard | LKM | Slide | 1 |
| Lifter | 8 | Design Software | 3D-UG 4.0/ 2D-CAD |
| Mould Life | 500000 Shots | ||
| High Light | ODM Single Cavity Injection Mold,Cold Runner Injection Mold Shell,19014-D Injection Mold |
||
Product Description
OEM/ODM Shell (1*1)
Cold Runner No.19014-D
No.19014-D
Description:
|
Precision-Engineered Plastic Production
The Cold Runner Two Plate Mold is a sophisticated tool tailored for efficient plastic part manufacture. Its two-plate design seamlessly releases molded components. The intricately engineered cold runner system minimizes gate marks, ensuring a superior surface finish.
Constructed on a standard mold base, it adheres to industry specifications guaranteeing reliability and consistency run after run. Whether producing low or high volumes, this precision mold delivers optimal performance.
|
Application:
wearable shell
3C products
Daily products
Features:
|
Precision Craftsmanship Meets Engineering Excellence

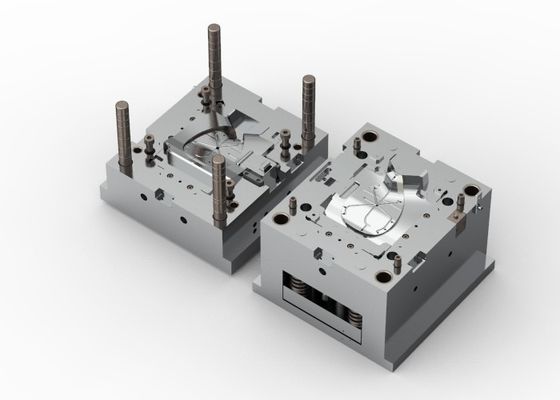

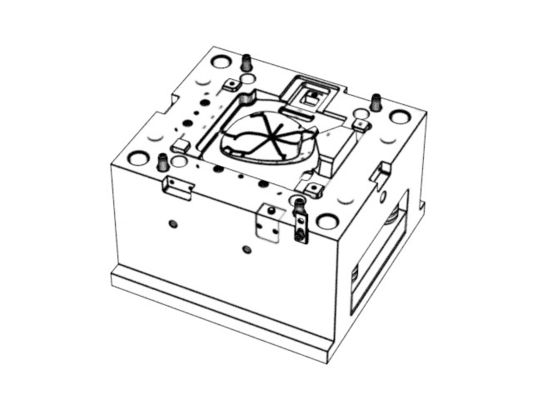

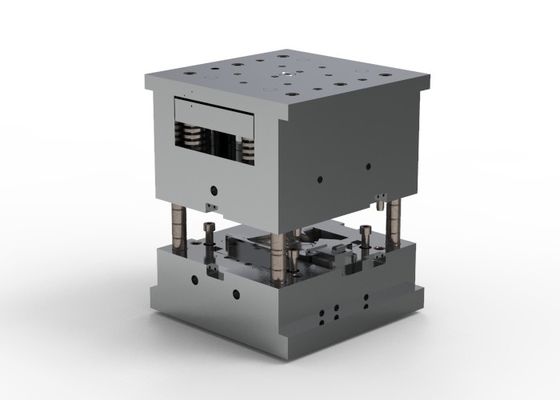

This meticulously crafted two-plate mold was constructed according to the renowned LKM molding standard. Situated on a GCI3540.90120100 base, its impressive dimensions of 400mm x 400mm x 386mm are complemented by 8 lifting slides and a seamlessly integrated side gate.

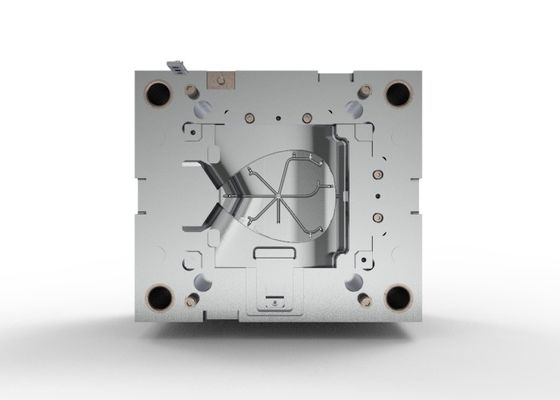

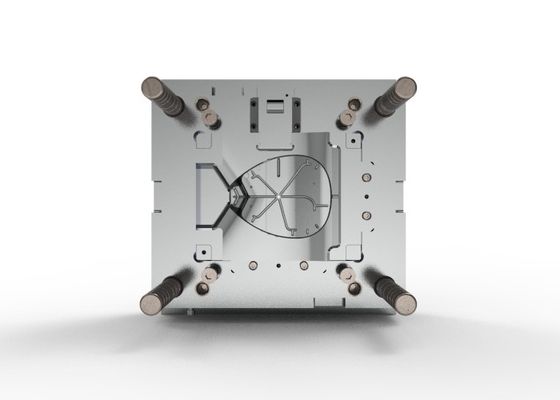

The intricately designed cold runner system minimizes gate marks through precise engineering. Mirror-finished to a lustrous VDI 10# standard via EDM, the molded parts release without adhesion, thanks to the minimized roughness.
Reinforced with Harden 1*1/S136 injection steel of paramount strength, key components including the core, inserts and bushings withstand rigorous molding cycles. All are forged from over 40HRC steel and undergo a surface hardening process, resulting in unmatched hardness and wear-resistance.

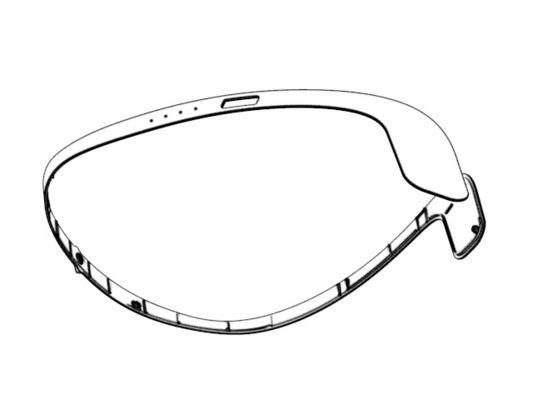

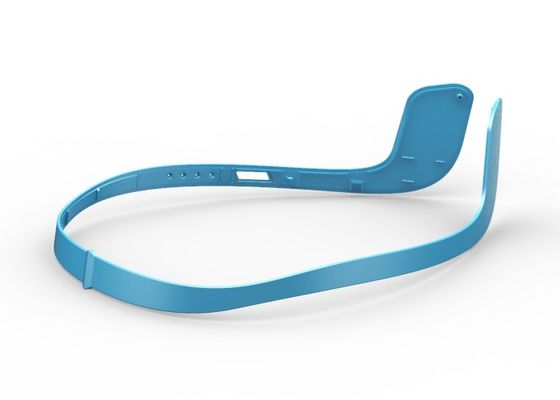

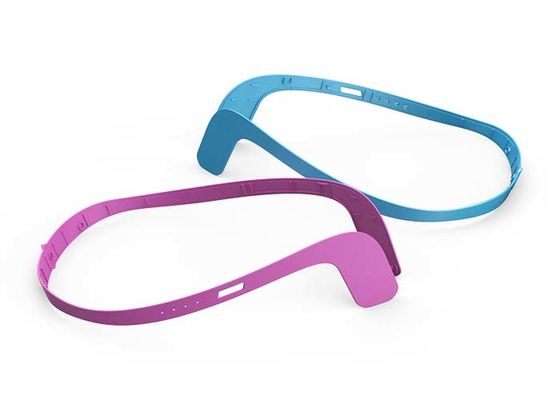

Under stable cavity pressures, the mold produces parts with uniform 10g weight, 130.92 X 165.60 X 62.06mm dimensions, and intricate details free of gas marks or flow lines. PC parts release from this mold with flawless surfaces even after 500,000 shots.
|
Advantage:
|
At our company, we pride ourselves on crafting meticulously engineered Cold Runner Two Plate Molds that represent the cutting edge of precision plastic manufacturing. These molds are constructed using only the finest materials and most advanced technologies to ensure unparalleled performance and longevity.
The seamlessly integrated cold runner system facilitates the consistent injection of plastic material into the mold cavity, yielding parts with uniform quality. With our Cold Runner Two Plate Mold, customers can rely on cost-effective and reliable solutions for their plastic molding needs.
|
Display diagram
