OEM/ODM PC / TPU Inner Housing 1x1 Cold Runner No.19015&19016 -D
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 640.000 X 541.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 1158KG | Injection/runner Type | Cold Runner |
| Type | Three-plates Mold | Standard | LKM |
| Part Material | PC/TPU | ||
| High Light | TPU Inner Housing,Inner Housing 1x1,Cold Runner PC Inner Housing |
||
Product Description
Inner Housing (1*1)
No.19015 & 19016-D
Description:
|
A Cold Runner Three Plate Mold is a type of injection mold used in the manufacturing of plastic parts. It consists of three main plates: the cavity plate which forms the actual shape of the part being produced, the core plate, and the runner plate which is used to create the channels through which the molten plastic flows into the mold cavity.
The term "cold runner" refers to the fact that the channels through which the plastic flows are not heated, which can lead to cooling and solidification of the plastic material within the channels. This solidified plastic in the runners must then be removed and discarded, resulting in waste material.
|
Application:
Smart wearable accessories
Housings for precision electronics
Plastic shells for toys
Features:
|
Presenting custom mold base P/N FCI4050.A140B150C130, meticulously tailored for your unique mold design needs. Originating from Guangdong, China, the precision Chitwing mold demonstrates excellence adhering to LKM standards. Weighing 1158kg, this mold seamlessly integrates a 180-ton injection molding machine, measuring 400mm long, 640mm wide, 541mm high.
Crafted for mass production efficiency through production cost, quality and cycle time optimization. It features three slides and lifters ensuring unparalleled precision during molding. Polished VDI 18# surfaces and hardened 1*1/S136 cavity/core material guarantee exceptional hardness and anti-wear. With a projected 500,000 shot tool life, leakage prevention and stable cavity pressure result in uniform wall thickness.
Products exhibit flawless smooth surfaces, sharp edges and absence of burrs. The mold also enables precise threads and consistent thickness.

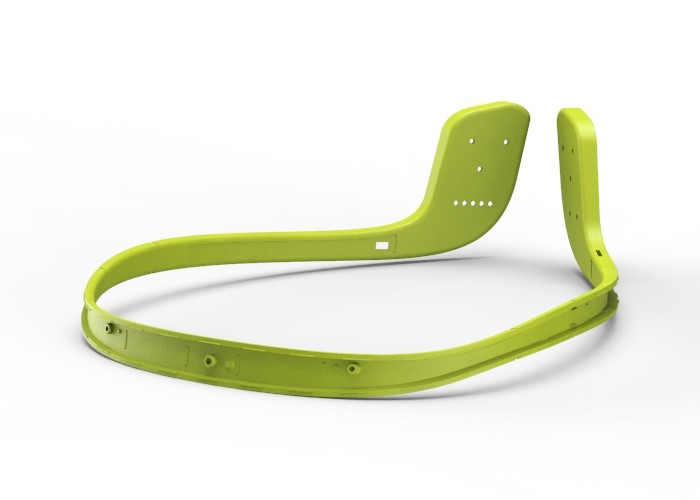

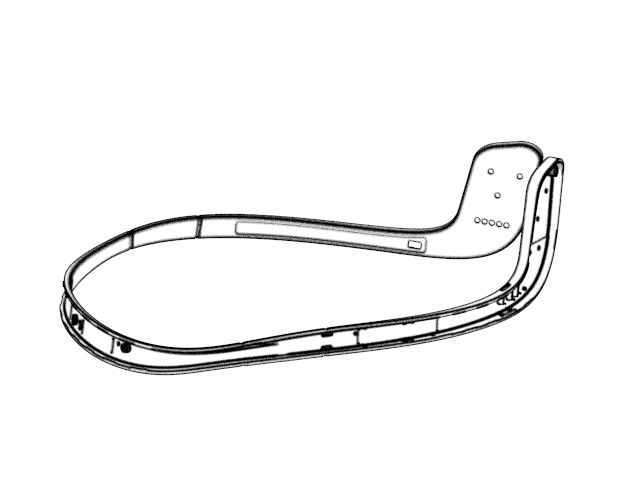

Operating using cold runner injection/runner type, it accommodates PC/TPU part material, with a 129.44 X 163.28 X 60.35mm part size and 9.84g part weight.
|
Advantage:
| At our company, we take great pride in manufacturing top-of-the-line Cold Runner Three Plate Molds that play a crucial role in the production of plastic components. These molds are meticulously engineered and constructed to ensure utmost precision and efficiency during the injection molding process. With a strong emphasis on longevity and performance, our Cold Runner Three Plate Molds are tailored to meet the diverse requirements of clients spanning various industries. We are dedicated to delivering dependable and cost-effective mold solutions that significantly contribute to the operational success of our customers. |

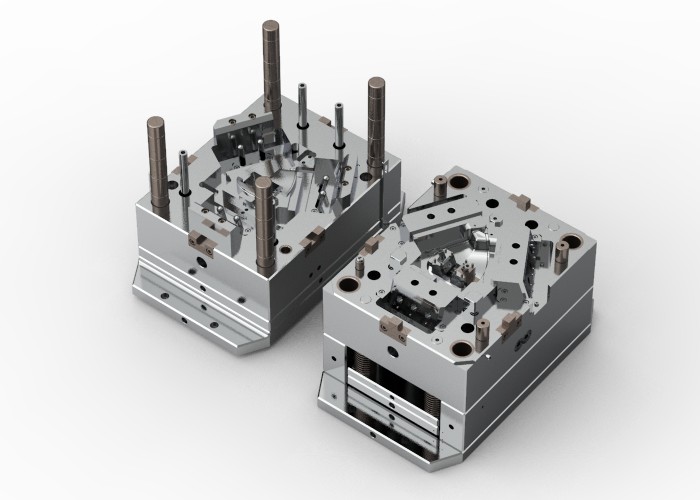

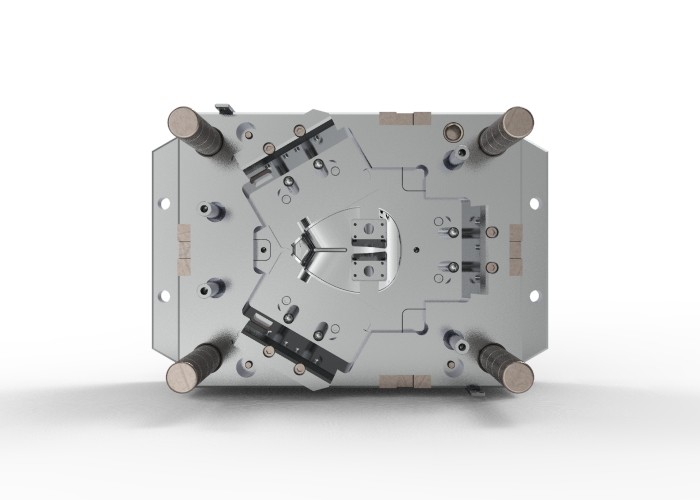

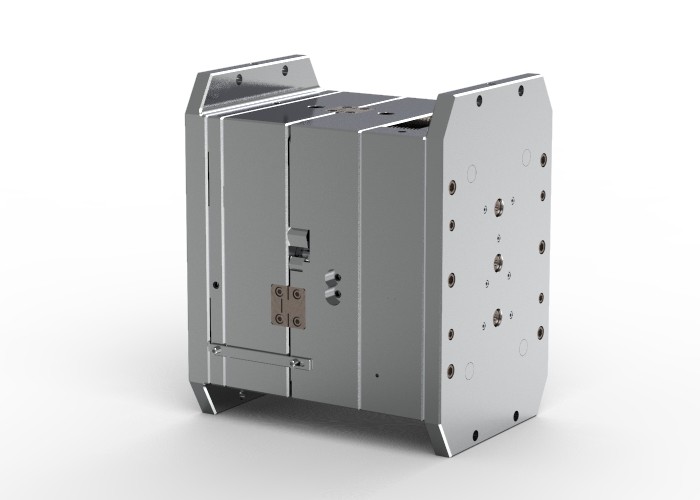

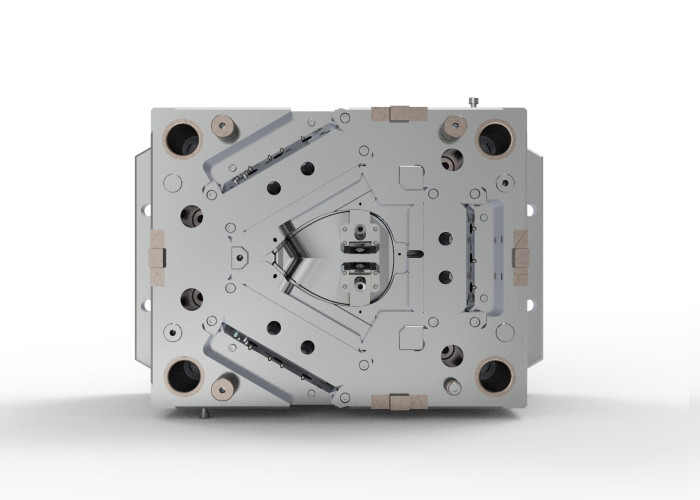

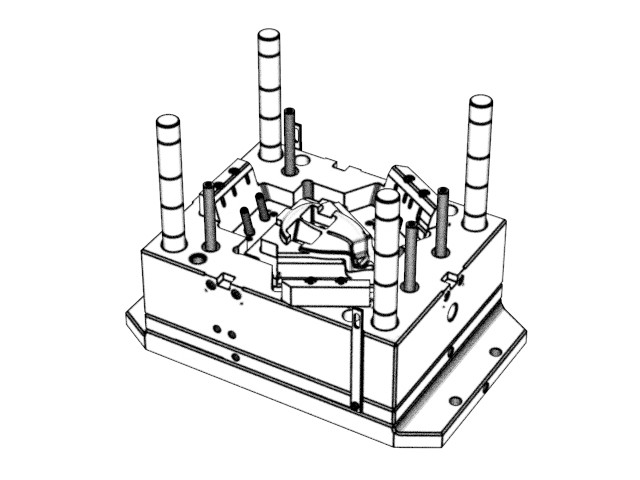

Display diagram
