OEM / ODM Precision Injection Molding VR Transparent Knob Control Shaft 1*4 No 22732-C

Place of Origin China
Brand Name Chitwing
Certification ISO 9001:2015
Model Number VR Products
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 200 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Material EcoPaXX-Q-KS IMM Tonnage 80T
Mold Weight 145kg Tool Life 500k Shots
Injection Type Cold Runner Runner Type Cold Runner
Steel Of Cavity Harden (1*4/S136) Steel Of Core Harden (1*4/S136)
Part Weight 4g
Highlight

VR Knob Shaft Precision Injection Molding

,

Knob Control Shaft Precision Injection Molding

Leave a Message
Product Description

VR Transparent Knob Control Shaft (1*4)

No.22732-C

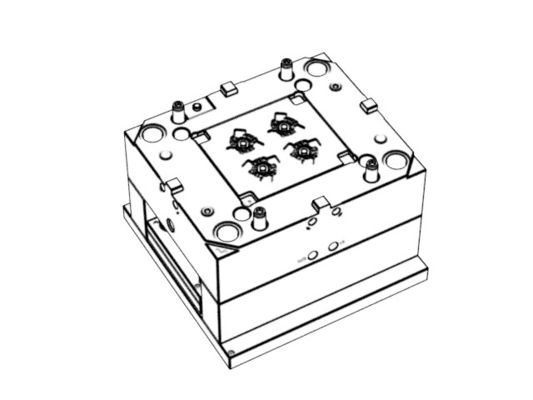

This particular mold has been crafted with a range of characteristics in order to guarantee top-notch production. It boasts a cold runner system, core insert, serrated wire cutting, and adheres to the LKM standard. Both the cavity and core have been hardened to enhance anti-wearing capabilities and hardness. This mold is structured as a three-plate mold with a polished surface and a pin point gate. With a tool life of 500,000 shots, it is built to last.



OEM / ODM Precision Injection Molding VR Transparent Knob Control Shaft 1*4 No 22732-C 0

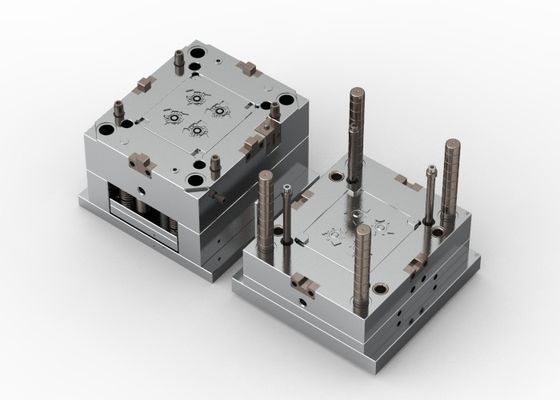

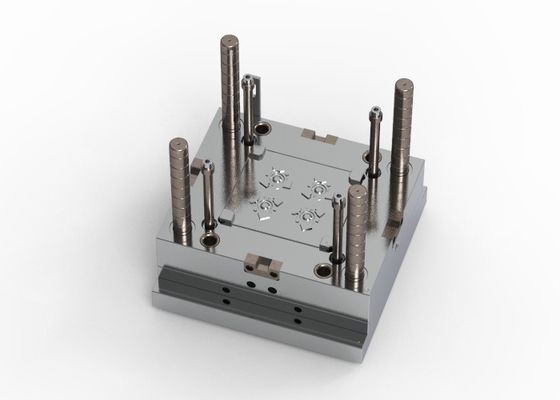

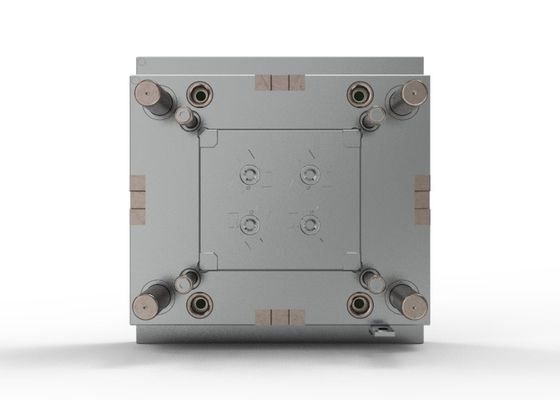

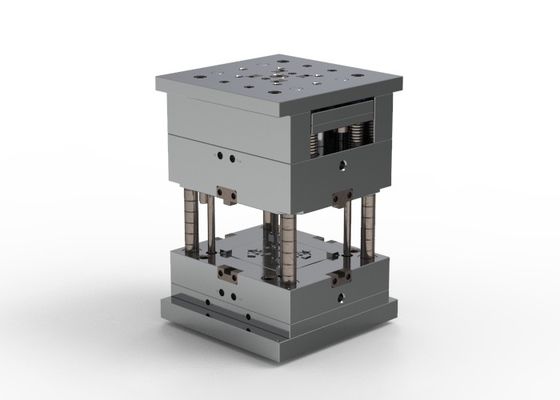

The mold weighs 145kg and measures 300.00 X 300.00 X 316.00mm. It necessitates the use of an injection molding machine (IMM) with a tonnage of 80T..



OEM / ODM Precision Injection Molding VR Transparent Knob Control Shaft 1*4 No 22732-C 1

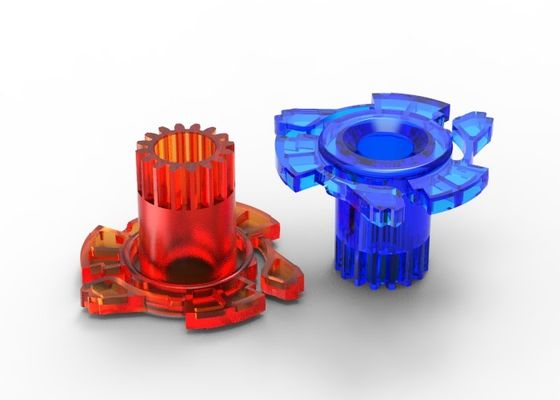

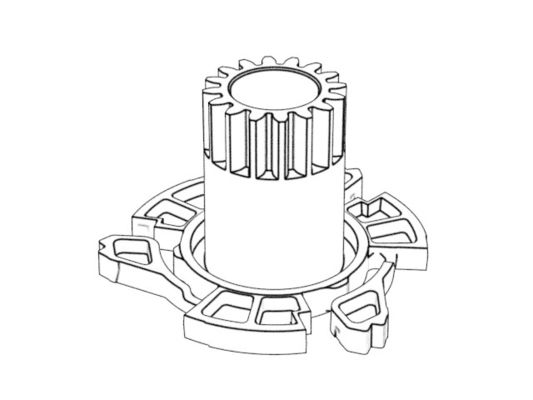

The EcoPaXX-Q-KS material is utilized to create the molded part, which has a weight of 4g and dimensions of 33.63X35.01X22.26mm. This molded component showcases exceptional precision and uniform texture, boasting clear details and a flawlessly smooth surface.





OEM / ODM Precision Injection Molding VR Transparent Knob Control Shaft 1*4 No 22732-C 2







Display diagram
