OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.00 X 500.00 X 527.00 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 708kg | Part Material | PC |
| Gate | Pin Point Gate | Injection/runner Type | Hot Runner |
| Steel Of Cavity & Core | Harden (1*4/S136) | ||
| High Light | Lock Nut Multi Cavity Injection Mold,220T Multi Cavity Injection Mold,Three Plate Injection Mold Hot Runner |
||
Product Description

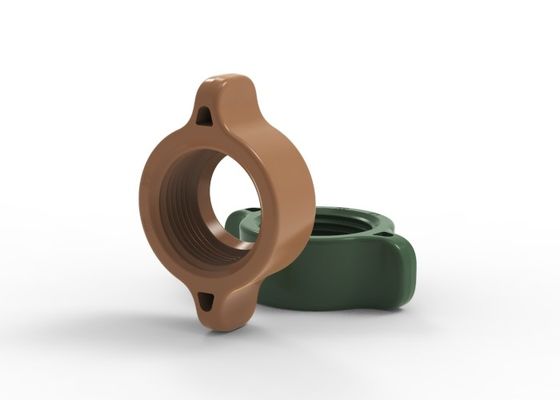

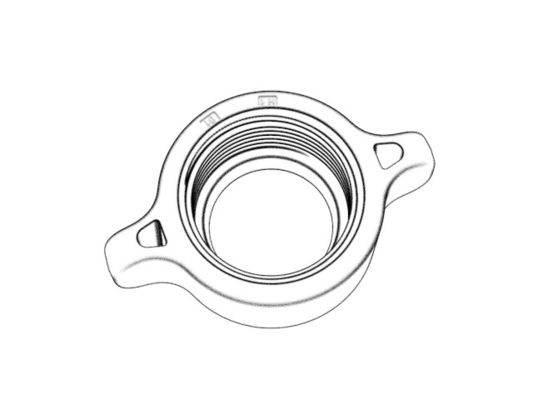

On-board Universal Joint Lock Nut (1*4)
No.23915
| Mold size/net weight: (L) 400x (W) 500x (H) 527mm /708 kg | |||||
| Mold base P/N: FCI3550 7010070 | |||||
| [Standard] - LKM | |||||
| Part material: PC | |||||
| Molding size 30.91 X 47.60 X 14.45mm, weight about 7.75g/pcs | |||||
| IMM Tonnage: 220T | |||||
| Injection/runner type: Hot runner | |||||
| Gate: Pin point gate | |||||
|
This is a 3-plates mold, filling easy and evenly, short cycle time,self-degating. With the hot runner and pin point gate, during the filling phase, the flow rate and temperature of melt rises, can get clearer,good glossiness parts. is required,which greatly saves the raw material cost and molding cost |
|||||
| Surface finish | Steel of cavity & core | ||||
| A surface EDM with VDI24# | Harden (1*4/S136) | ||||
|
touch-friendly surface, with certain glossiness and roughness. |
harded cavity and core, high hardness and anti-wearing, anti-corrosion. |
||||

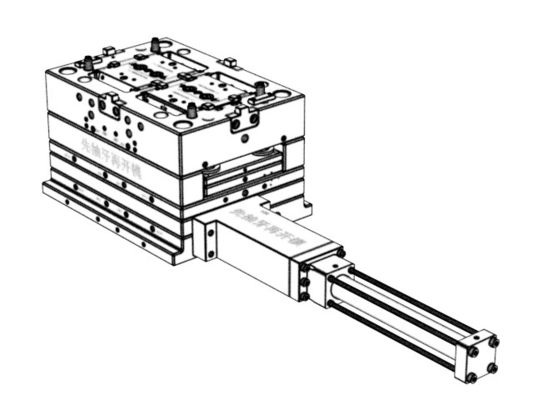

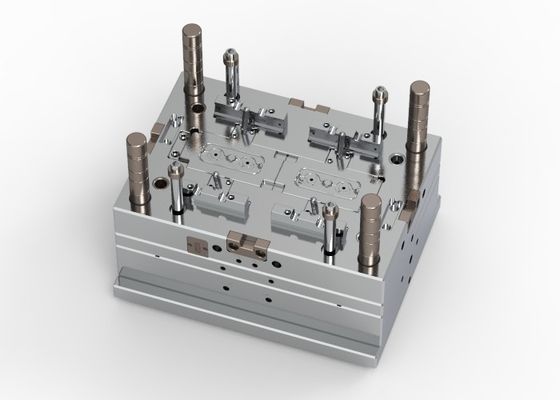

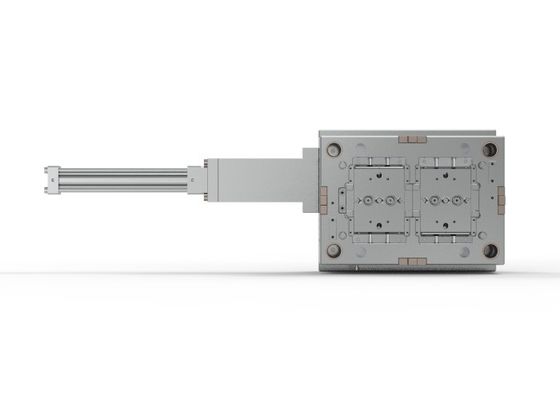

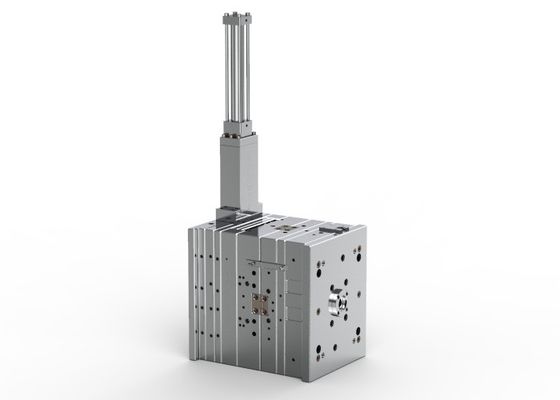

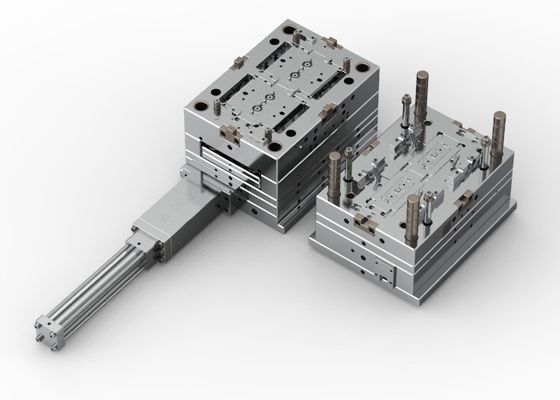

Display diagram
