OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 450.000 X 374.400（mm） | IMM Tonnage | 130（T） |
|---|---|---|---|
| Mold Weight | 371.71（KG） | Lifter | 6 |
| Surface Finish | VDI21# | Part Material | PC+ABS |
| Part Net Weight | 23.3g | Injection/runner Type | Hot Sprue Cold Runner |
| Mold Type | Custom Consumer Electronics Molds | Forming Method | Encapsulation Molding |
| High Light | 500k Shots ABS Injection Molding,LKM ABS Injection Molding,Cold runner ABS Injection Molding |
||
Product Description

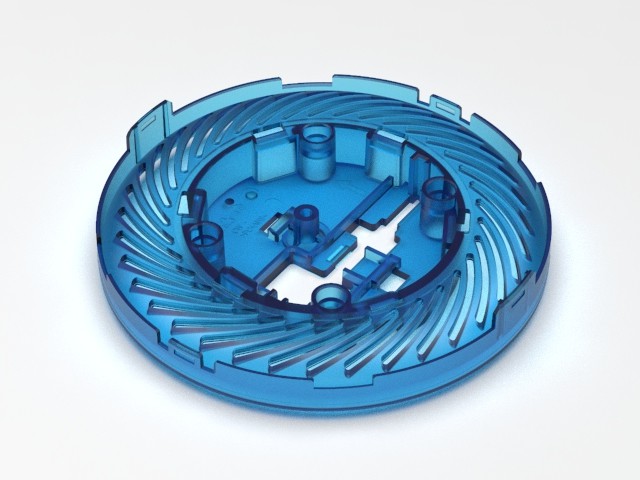

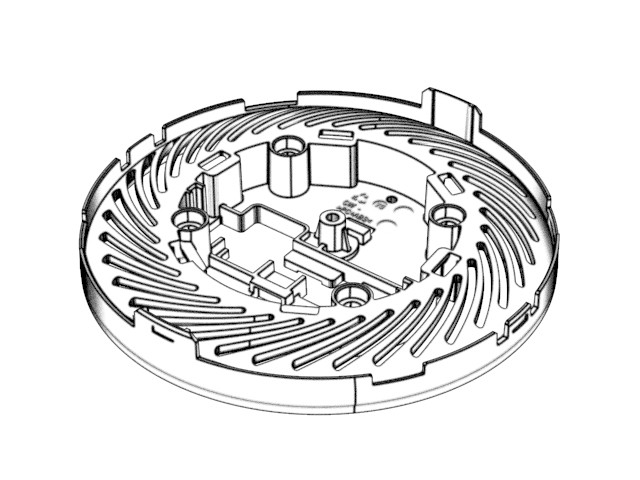

Transparent bottom cover bracket (1*2)
No.24677.
| Standard | LKM | Surface finish | |||||
| Type | Three-plates mold (self-degating) | VDI21# | |||||
| Mold size | 350X 450X 374.4mm | Lifter | |||||
| Gate | Pin point gate | 6 | |||||
|
Mold surface polished with VDI21# to have high glossiness for easy demolding; harden the cavity and core with S136 to improve the hardness and anti-wearing performance, greatly improve the tool life (up to 500k shots); fit 130T machine |
|||||||
| Mold size | L*W | 350*450mm | Part size | Diameter | ￠95mm | ||
| H | 374.4mm | H | 14.1mm | ||||
| Mold net weight | 371.71kg | Part net weight | 23.3g | ||||

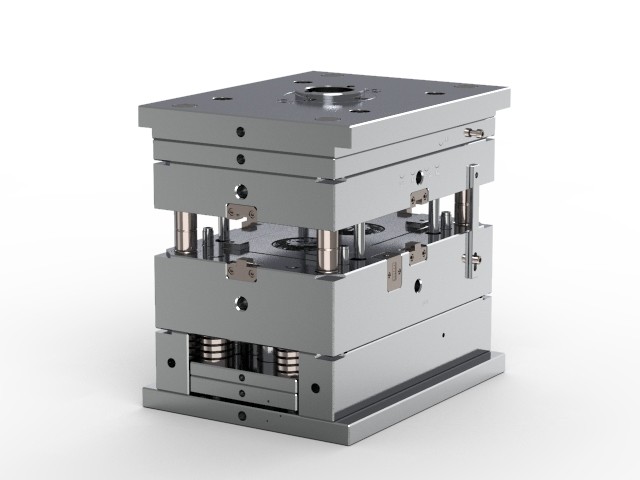

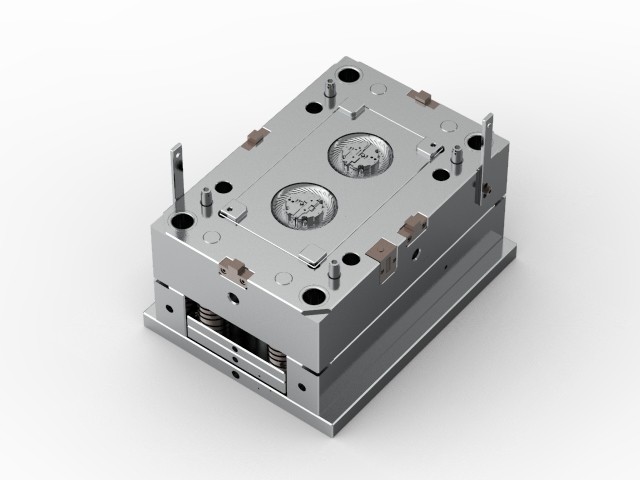

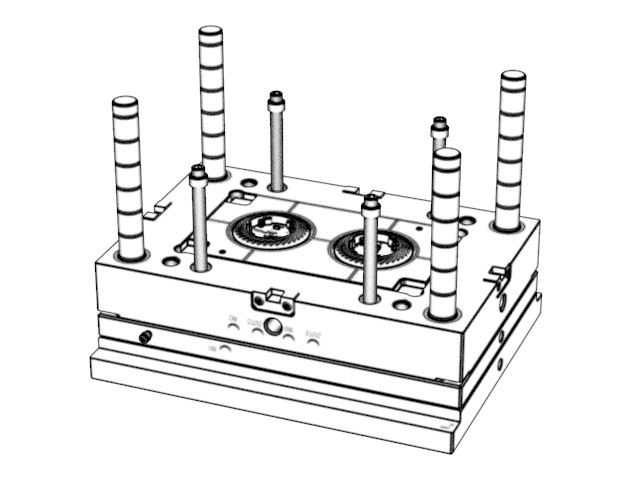

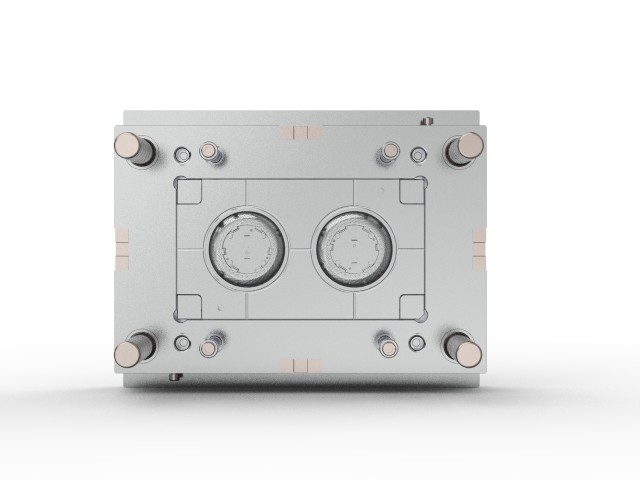

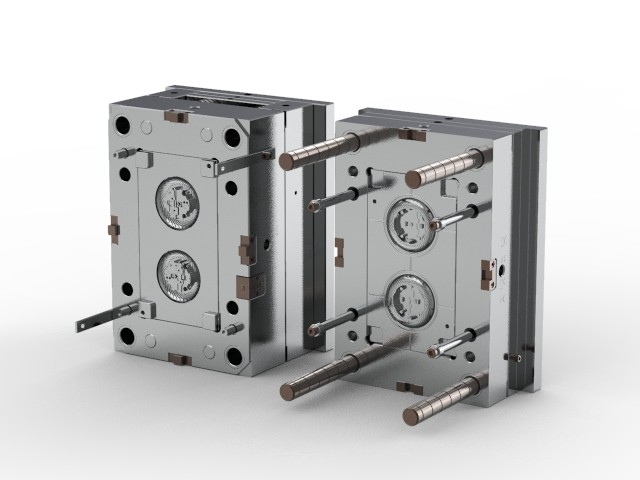

Display diagram
