OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Lower Bracket (1*4) No.23912
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 400.000 X 402.540 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 425kg | Standard | LKM |
| Gate | Side Gate | Type | Two-plates Mold |
| Injection/runner Type | Hot Runner | ||
| High Light | Two Plate Die Casting Mould,100T Die Casting Mould,Side Gate Mould Hot Runner |
||
Product Description

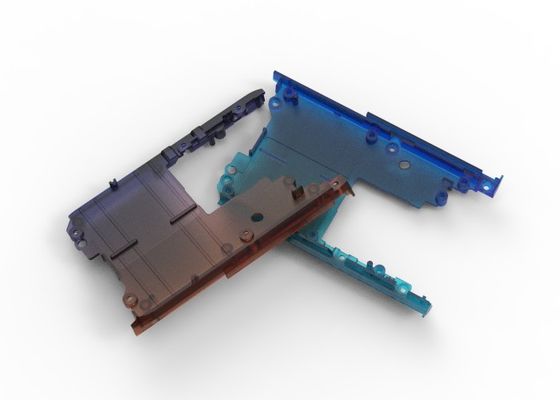

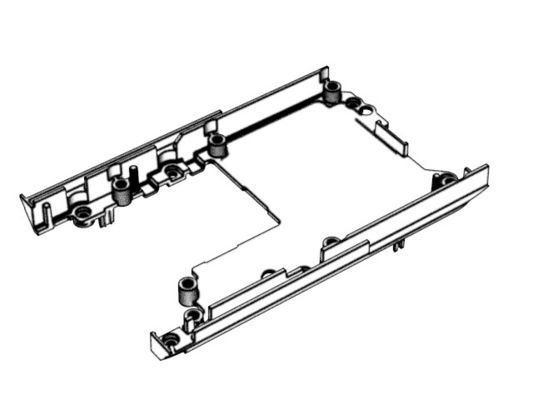

Transparent On - board Lower Bracket (1*4)
No.23912
【Mold base P/N】: CI3540 8010080
【Size】: L400 x W400 x H402.54 mm
【Standard】 :LKM
【Net weight】 :425kg
【IMM Tonnage】: 100T
【Gate】: The mold is designed with side gate(simple section and easy for tool build), and
good for filling too.
【Type】: With two-plates mold, simple structure, easy operation, robust and part free-fall.
【Part material】: PC
【Part weight】: 5.51g
【Part size】: 56.90 X 85.68 X 12.25mm
【Injection/runner type】:
This hot runner mold with low injection pressure loss. Melt fill in cavity with even
temperature,pressure and density. Molded part with low residual stress and minimize
warpage, high cosmetic quality and stable dimension.
Short cycle time with fast mold cooling, fast filling, and high production efficiency, which
meets customer's cost requirement.
【Steel of cavity & core】: Harden (1*4/S136)
【Surface finish】:
① A surface high polished to SPI-A3 ② Internal surfaces polished to SPI-B1
【Tool life】: 500k shots

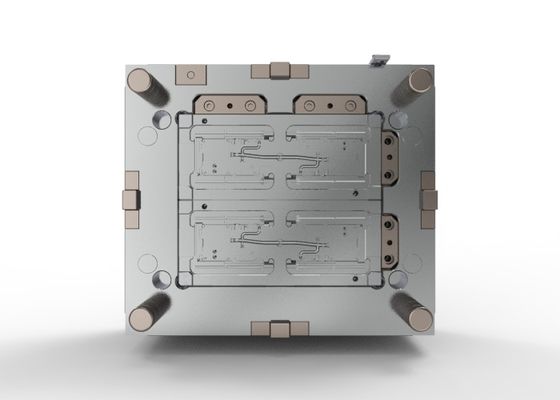

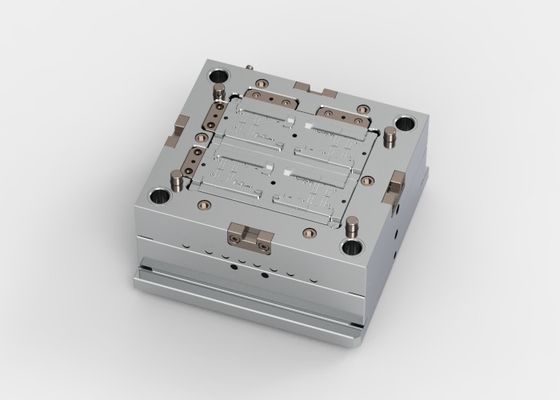

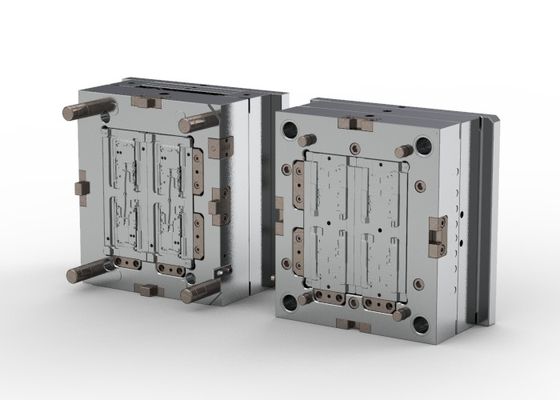

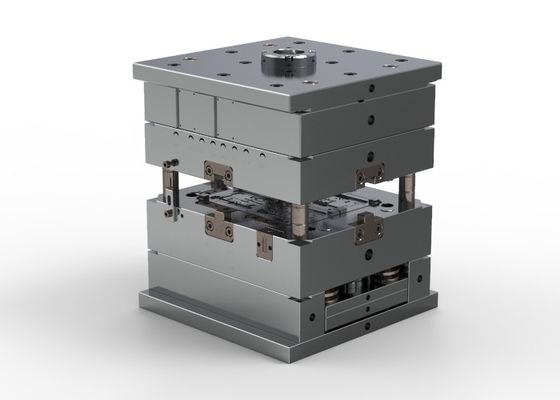

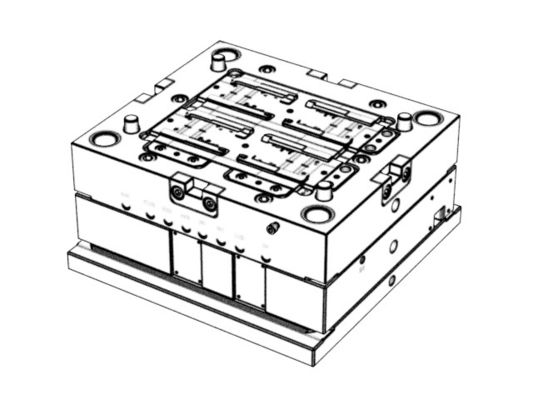

Display diagram
