Back cover (1*1)/Three-plates mold / Cold runner No.22447
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides | Size | 400.000 X 450.000 X 421.000 |
|---|---|---|---|
| IMM Tonnage | 140T | Mold Weight | 470kg |
| Mould Material | Harden（1*4/S136） | Mould Base | LKM |
| Mould Life | ≥500000 Shots | Design Software | 3D:UG 4.0, 2D:CAD |
| Type | Three-plates Mold | Injection/runner Type | Cold Runner |
Product Description

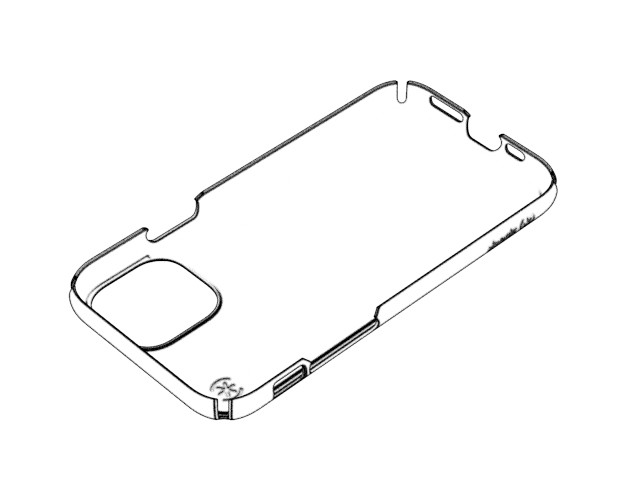

Back cover (1*1)
No.22447
★ The mold is designed with standard mold base (FCI3545.70120120)
| Origin | Guangdong, China | Standard | LKM |
| Size | 400.000 X 450.000 X 421.000mm | ||
| Length | 400 | Net weight | 470kg |
| Width | 450 | Height | 421 |

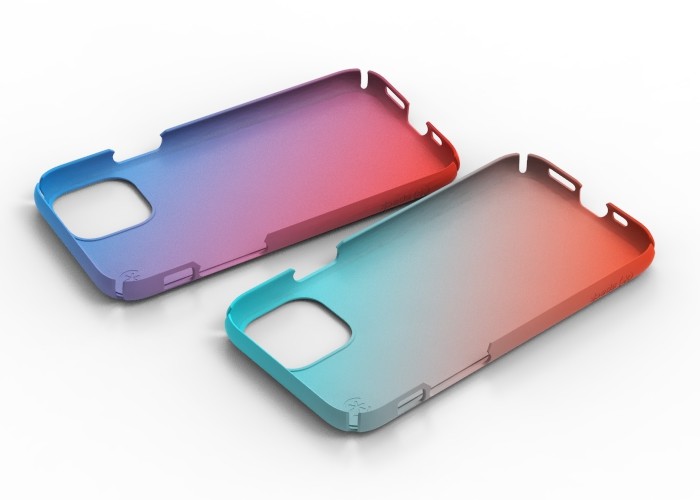

| Features | 4 slides and 1 lifter | ① Part material: PC ② Part net weight: 24g ③ Part size: 150.4 X 78.5 X 11.8mm ④ Fit 140T machine |
|
| Type | Three-plates mold | ||
| Injection/runner type | Cold runner | ||
| Gate |
Sub gate |
||
Standard mold base, the pin point gate turns to the side gate and sub gate;
the surface polished to SPI-A1, hardened steel of cavity and core
| Tool life | 500k shots |

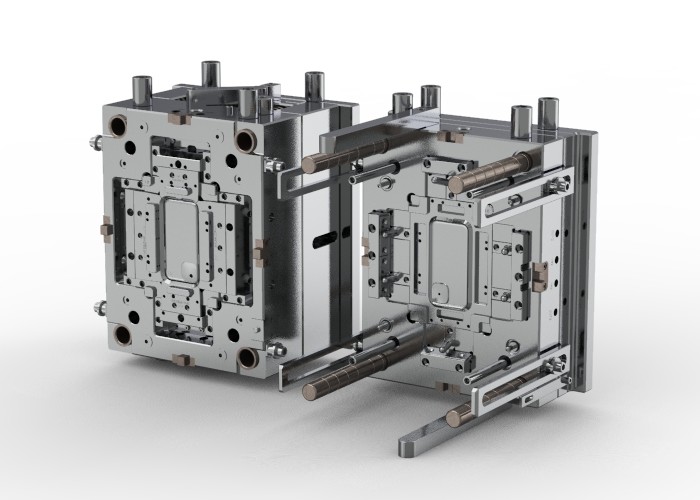

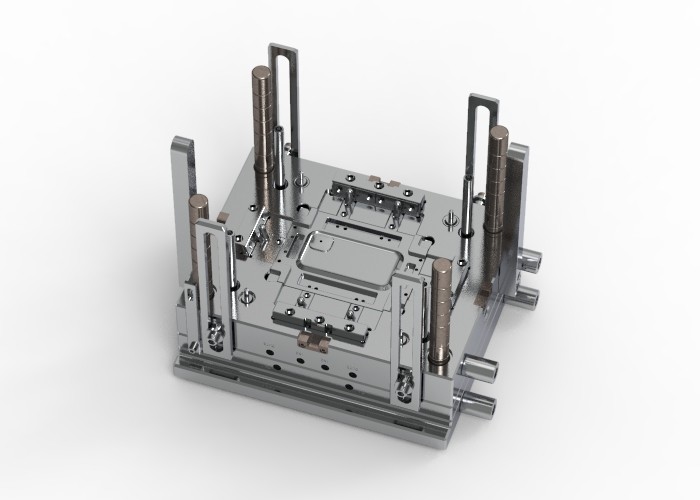

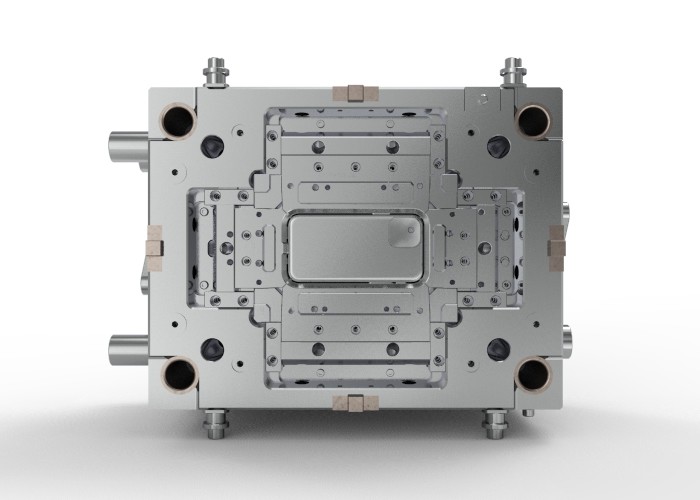

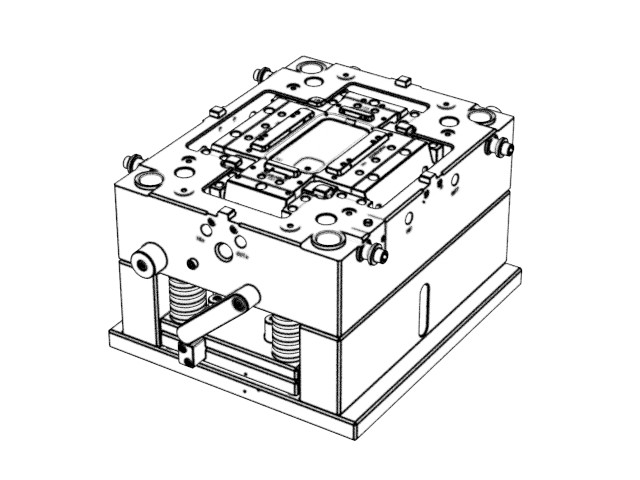

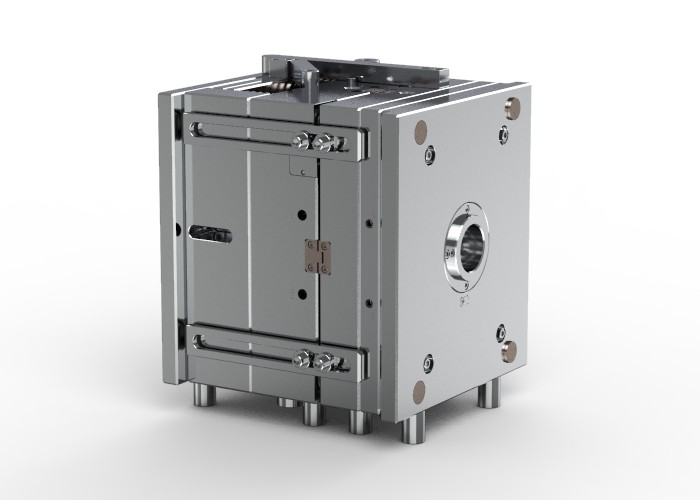

Display diagram
