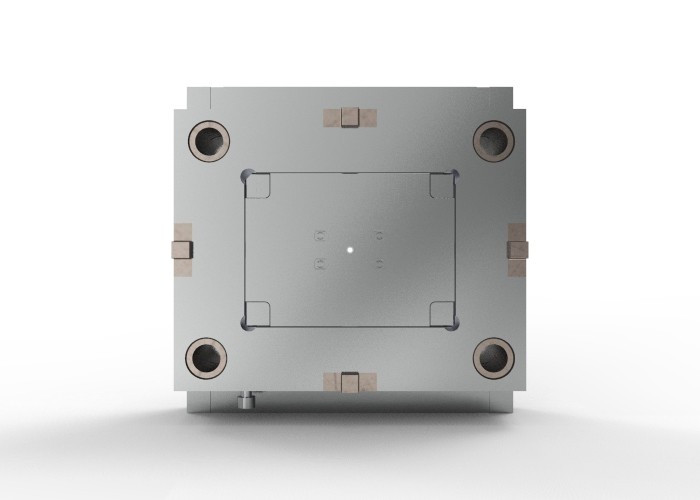

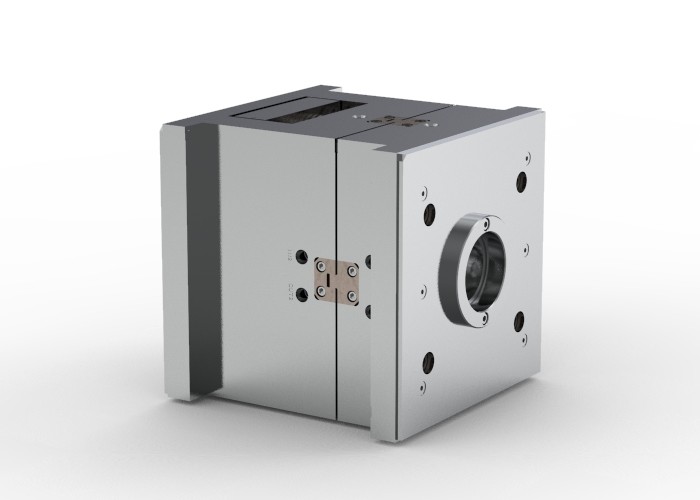

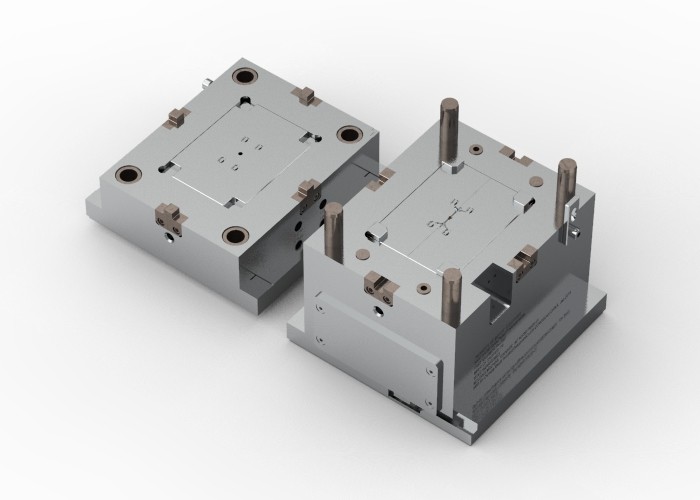

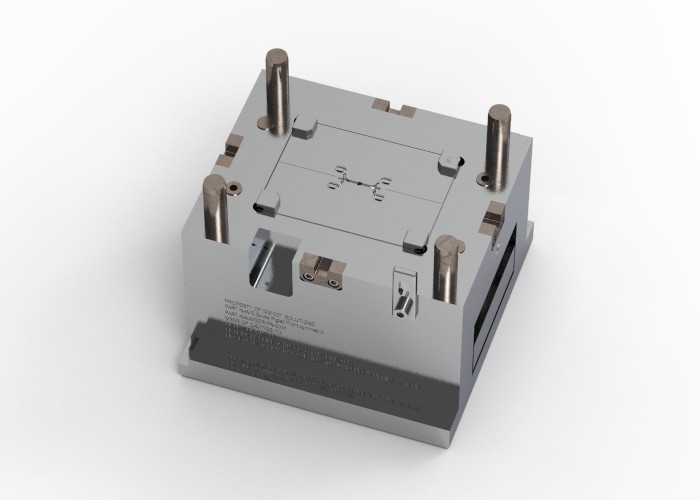

Medical Instrument PN-2051 (1*4) / Two-plates mold / Cold runner No.21059
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 93kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner | Cold Runner | Part Weight | 0.12g |
| Part Size | 7.79 X 9.75 X 5.76mm | Gate | Side Gate |
| Tool Life | 500K Shots |
Product Description

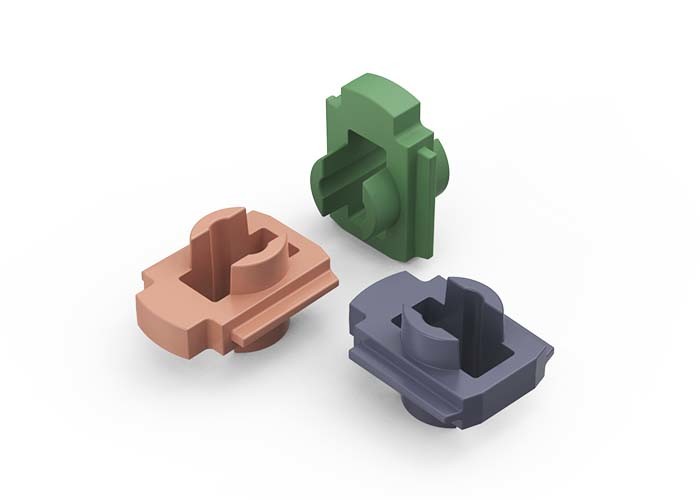

Medical Instrument
PN-2051 (1*4)
No.21059
| 1. Mold base:Standard CI2025.507070. 2. Standard:LKM 3. Type:Two-plates mold 4. Tool life:500K shots ⒌IMM tonnage:100T |
||
| 6. Mold size:(L)250 X (W)250 X (H)251mm 7. Mold net weight:93kg 8. Harden with 1*4/S136:① Cavity ② Core 9. Surface finish:SPI B-2 10. Gate:Side gate |
||
| 11. Injection/Runner Type:Cold runner 12. Part material:PC 13. Part weight:0.12g 14. Part size:7.79 X 9.75 X 5.76mm |
||

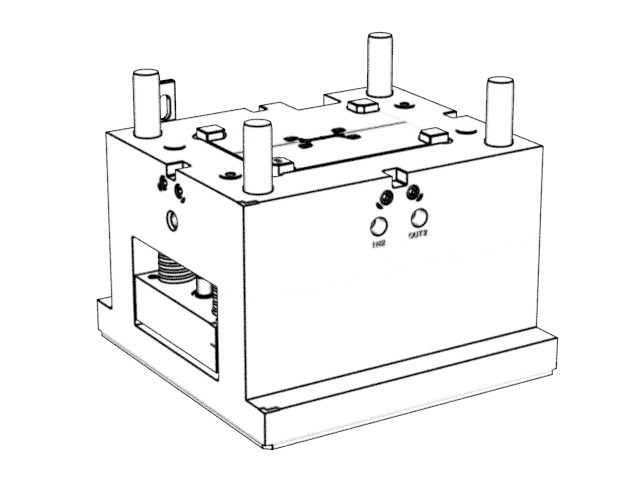

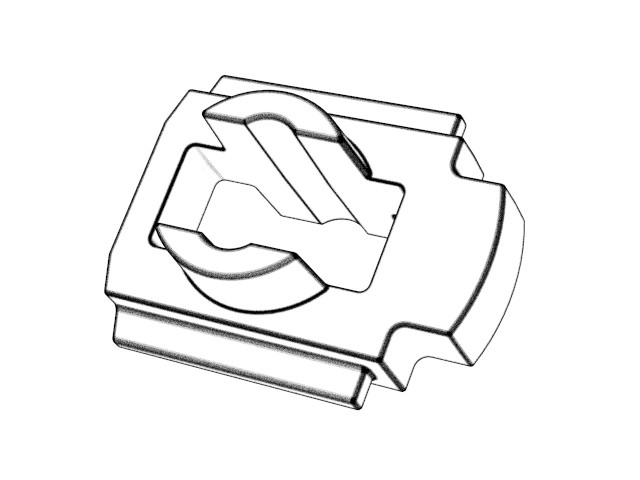

Display diagram
