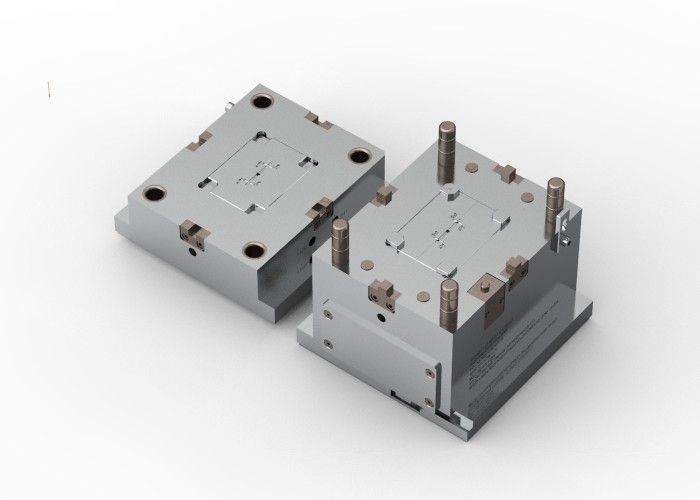

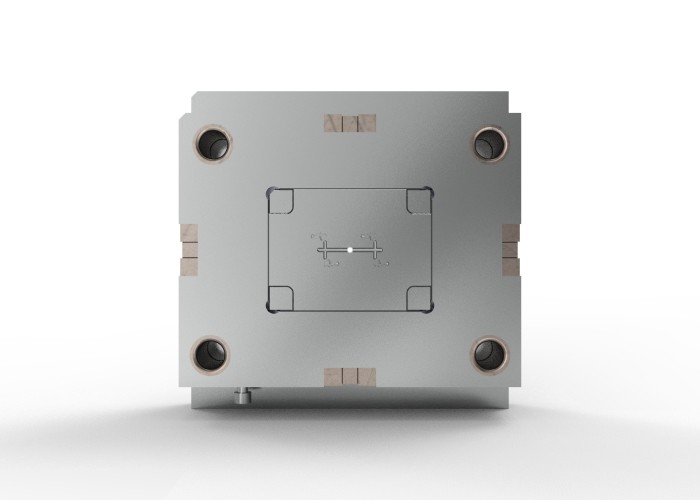

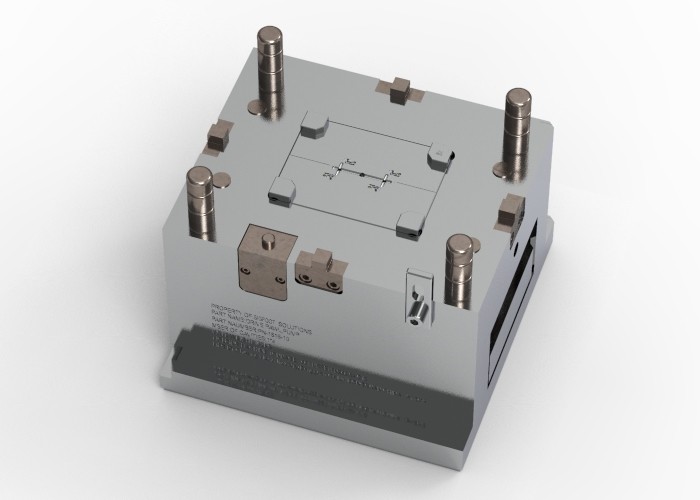

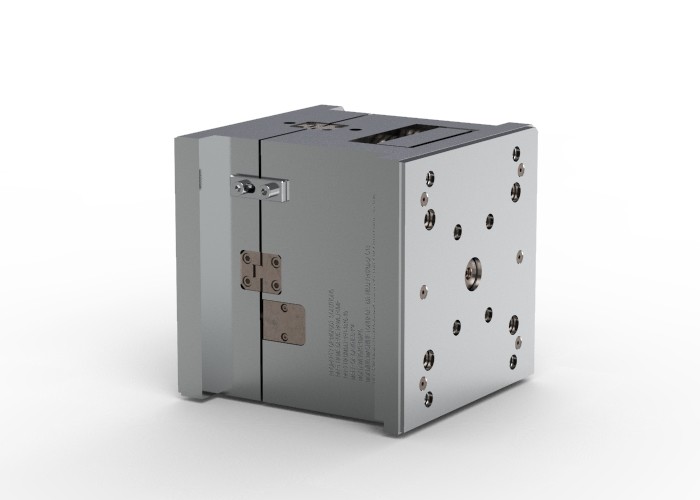

Medical Instrument PN-1816 (1*4) / Two-plates mold / Cold runner No.21060
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Standard Mold Base P/N | CI2025.507070. |
| Tool Life | 500k Shots | Surface Finish | SPI B-1 |
| Gate | Side Gate | Type | Two-plates Mold |
| Part Material | POM | Part Weight | 0.39g |
| Injection/Runner Type | Cold Runner |
Product Description

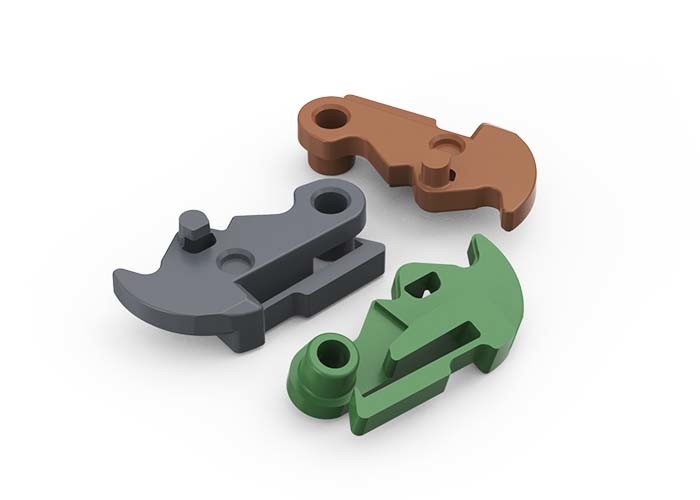

Medical Instrument
PN-1816 (1*4)
No.21060
Standard mold base P/N: CI2025.507070.
|
|
||||
|
|
☆ Surface finish: SPI B-1
☆ Steel of cavity and core: harden with 1*4/S136
| ☆ Gate: Side gate ☆ Type: Two-plates mold ☆ Part Material: POM |
☆ Part size: 5.40 X 10.77 X 3.45mm ☆ Part weight: 0.39g ☆ Injection/Runner Type: Cold runner |

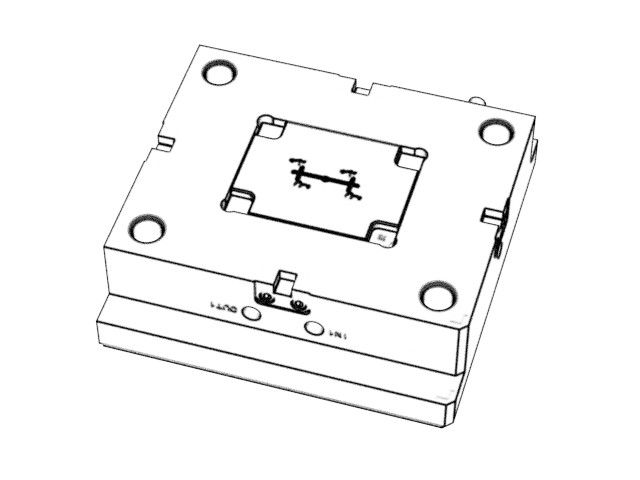

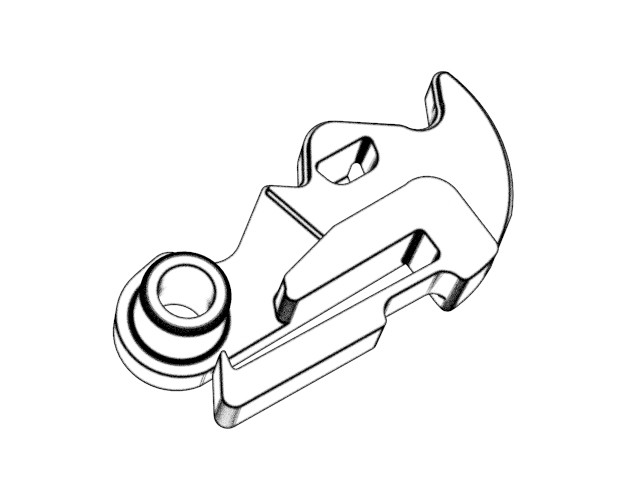

Display diagram
