Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | 500000 Shots | Runner | Cold Runner |
| Standard | LKM | Part Material | POM |
| Type | Two-plates Mold | Standard Mold Base P/N | CI2025.507070 |
Product Description
Medical Instrument PN-1500 (1*4)
No.21062

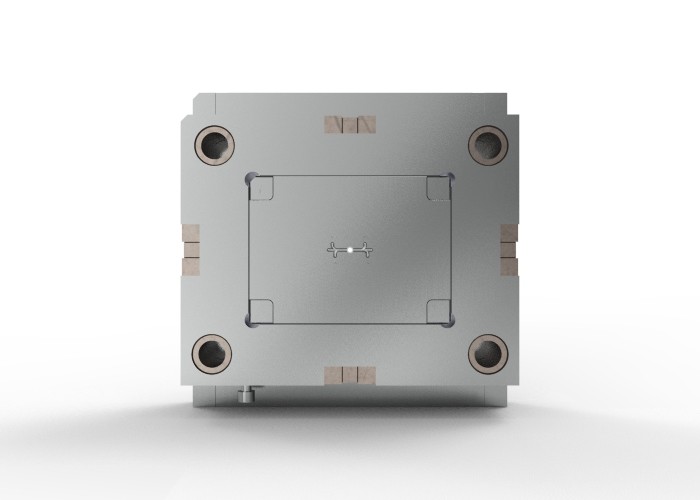

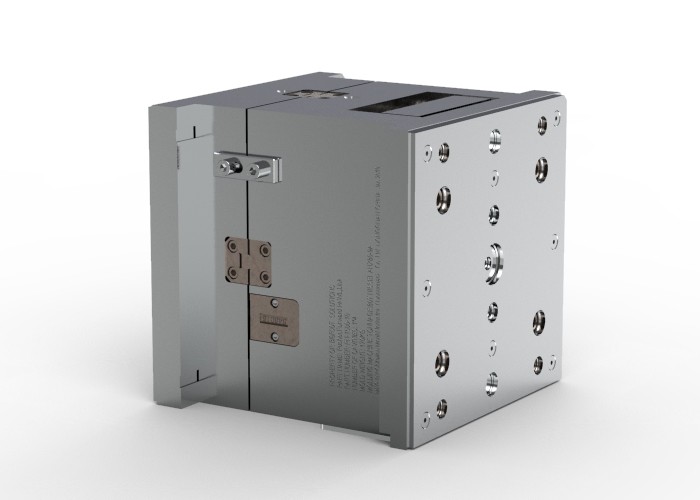

| Mold size |

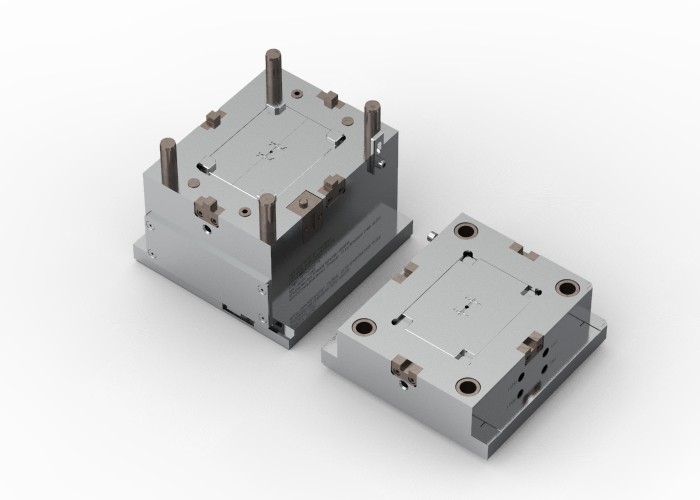

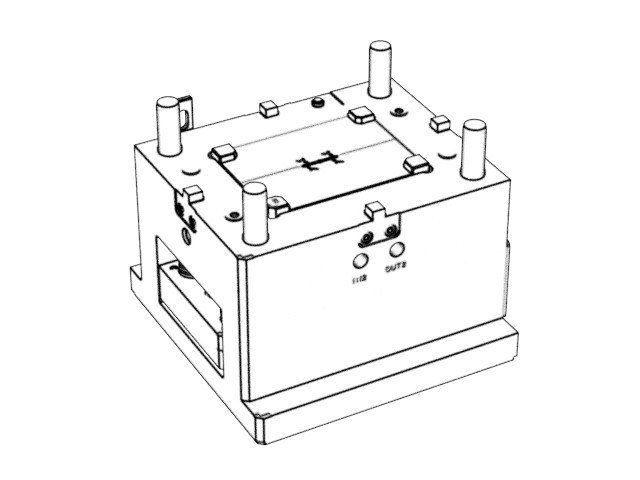

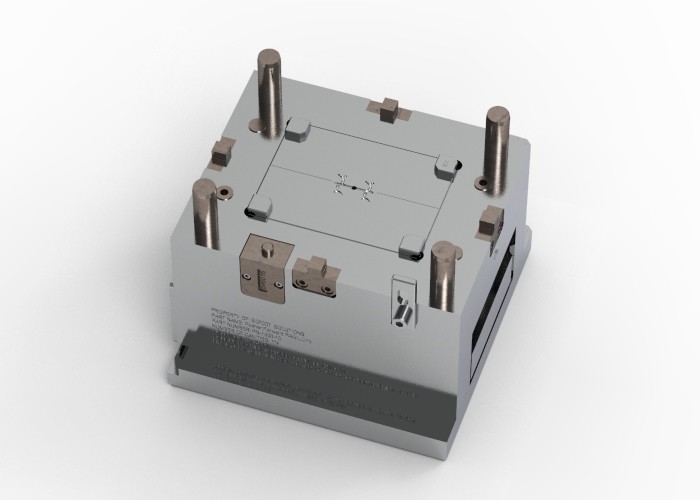

This is a two-plates mold designed with side gate and cold runner, with easy processing and degating, suitable for mass. Mold surface polished to SPI B-2 to improve the mold smoothness and hardness, anti-corrosion and anti-wearing performance, and the tool life is up to 500k shots |
Standard LKM |
||||||
| (L)250 X (W)250mm (H) 251mm |
||||||||
| Standard mold base: CI2025.507070 |
||||||||
|
Harden the cavity and core by 1*4/S136 to have high hardness, anti-corrosion and anti-wearing performance, continuously produce parts of stable quality, with short cycle time, complete and precise details, free of flow marks and gas marks |
||||||||
| Part material |

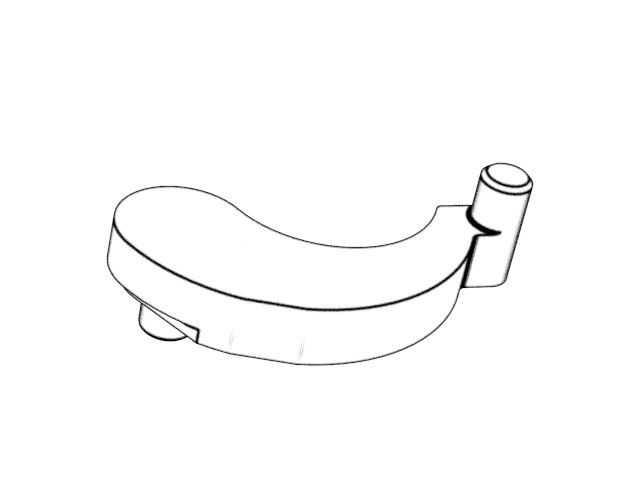

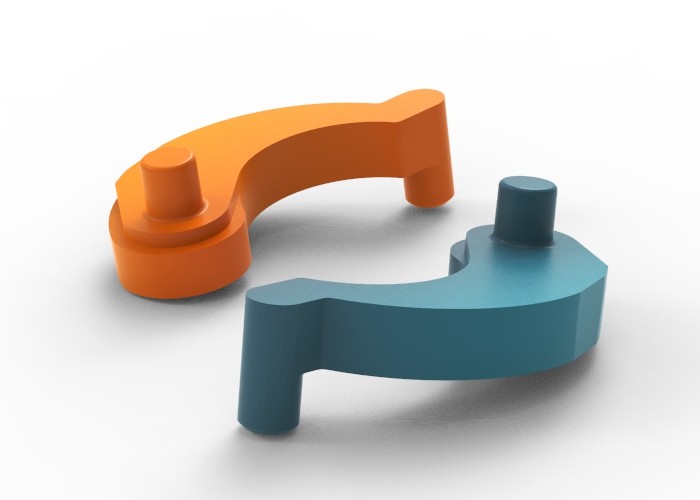

The part size is 3.86 X 7.78 X 3.25 mm and the part weight is only 0.03g |
||||
| POM | |||||
☆ Mold net weight: 94 kg
☆ IMM tonnage: 100T
Display diagram
