Medical Instrument PN-1691 (1*4) / Two-plates mold / Cold runner No.21063
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 261.000 | Part Weight | 0.11g |
|---|---|---|---|
| Design Software | (3D)UG 4.0/ (2D）CAD | Mould Life | ≥500000 Shots |
| Gate | Side Gate | Injection Type | Cold Runner |
| Runner Type | Cold Runner |
Product Description
Medical Instrument PN-1691 (1*4)
No.21063
| Mold size | Standard | Slide | Net weight | |||||
| Length | 250 | Width | 250 | Height | 261 | LKM | 2 | 93kg |
| Standard mold base P/N: CI2025.508070 | ||||||||
| IMM tonnage: 100T | ||||||||
| Gate | Side gate | Tool life | 500K shots | Injection type | Cold runner | ||
| Runner type | |||||||

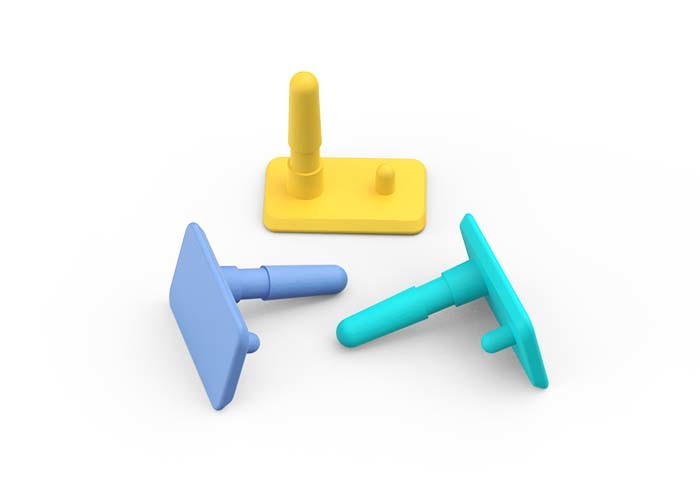

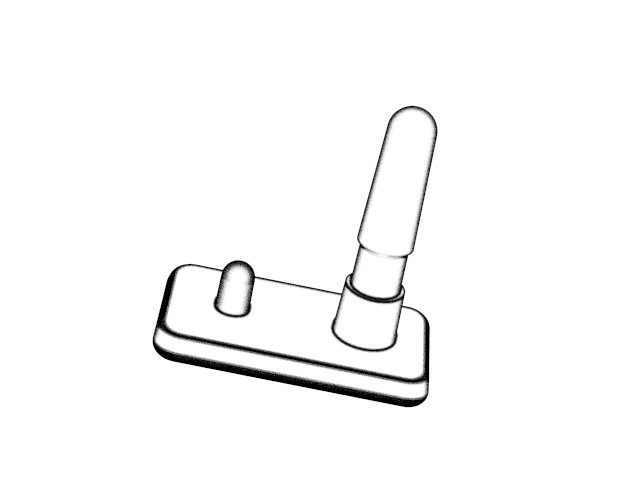

| Part material | PC+PET | Part weight | 0.11g | Part size | 10.22x6.70x10.20mm | ||

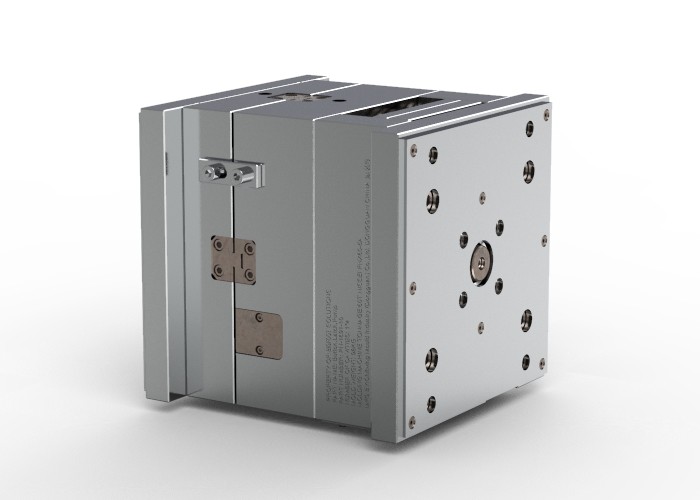

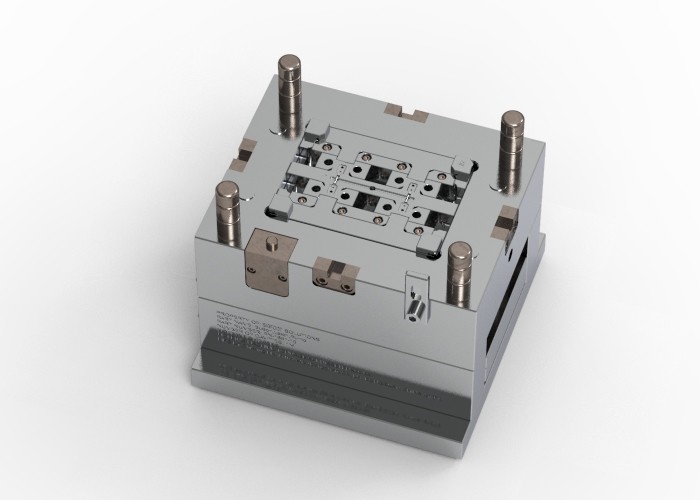

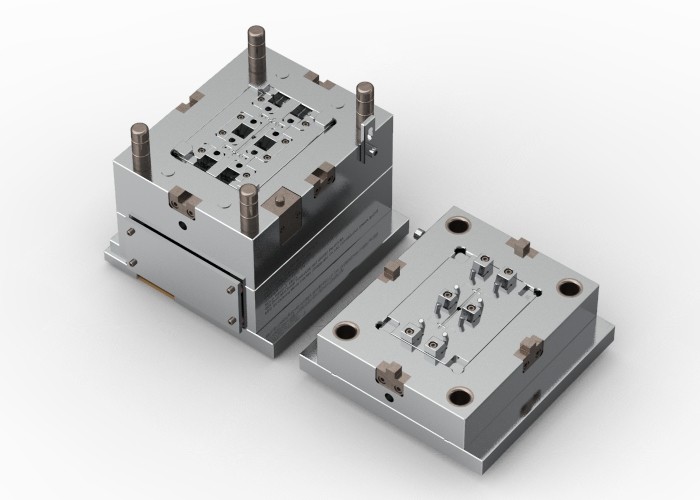

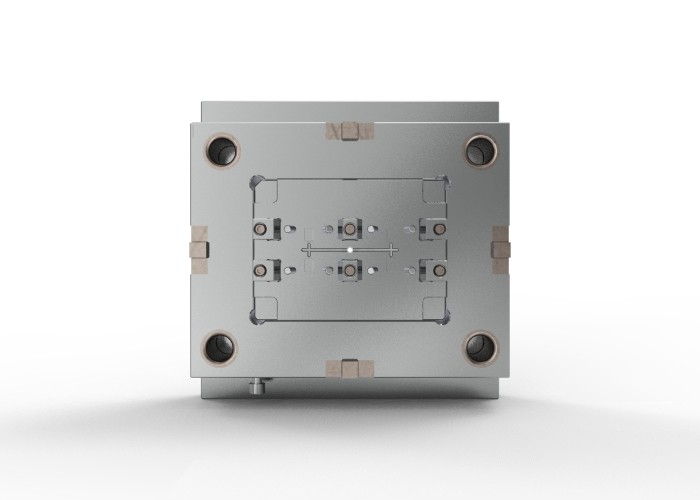

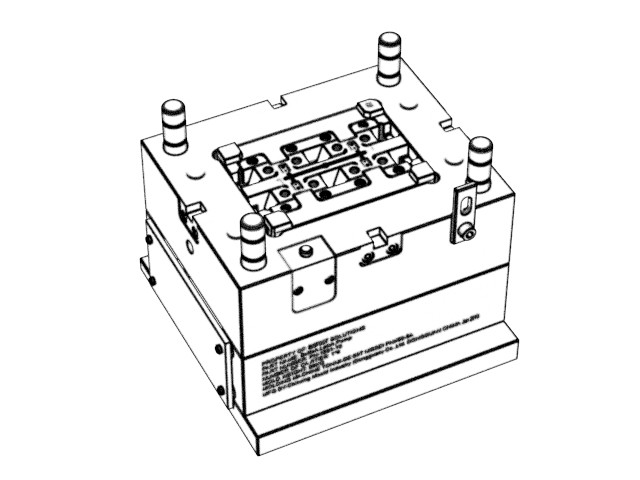

Display diagram
