Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | ≥500000 Shots | Surface Finish | SPI B-2 |
| Part Material | PC | Part Size | 8.24 X 8.21 X 2.72 Mm |
| Part Weight | 0.22g |
Product Description

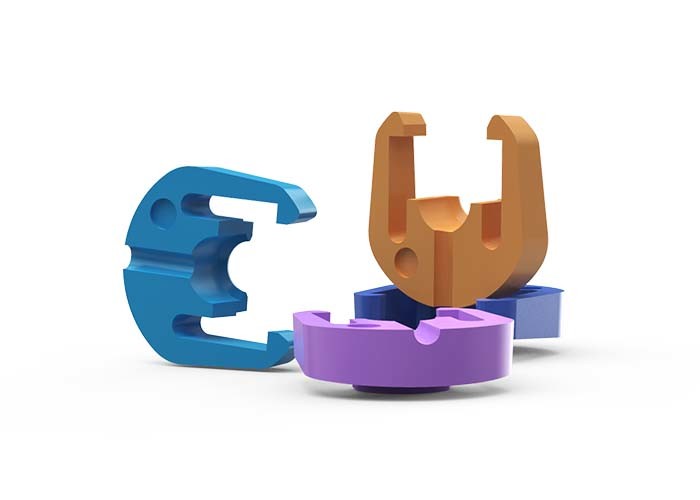

Medical Instrument PN-1797 (1*4)
No.21065
(1) LKM standard
(2) Standard mold base P/N: CI2025.507070
L250mm | W250mm | H251mm | ☆ Tool life: 500k shots
☆ Two-plates mold ☆ Cashew gate

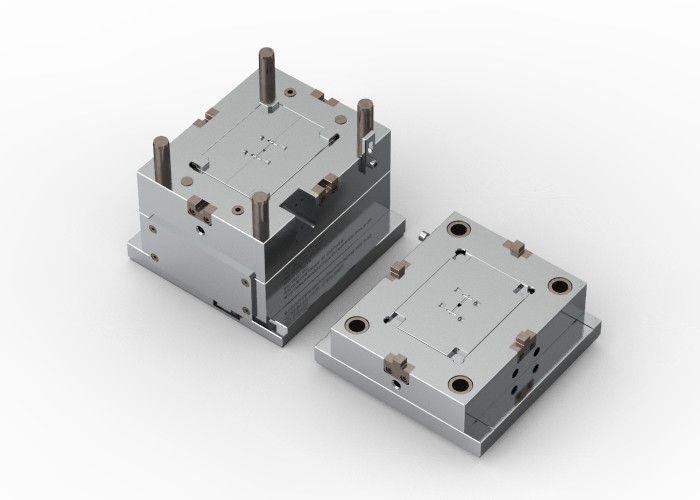

This is a two-plates mold with a side gate and cashew gate, part automatically cut off
when opening mold; with short cycle time, easy filling, smooth demolding, low cost,
meeting customers' cost-effective requirements
☆ Injection/runner type -- cold runner
☆ IMM tonnage: 100(T)
☆ Mold net weight: 94 (kg)

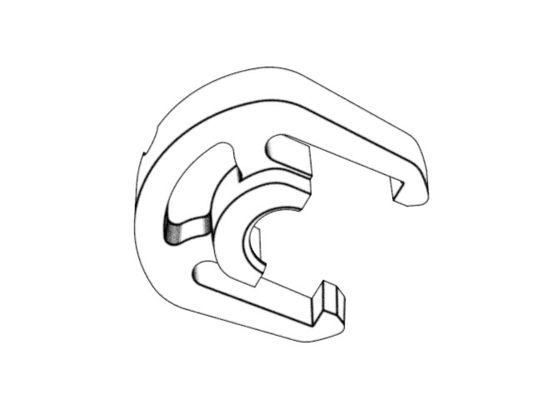

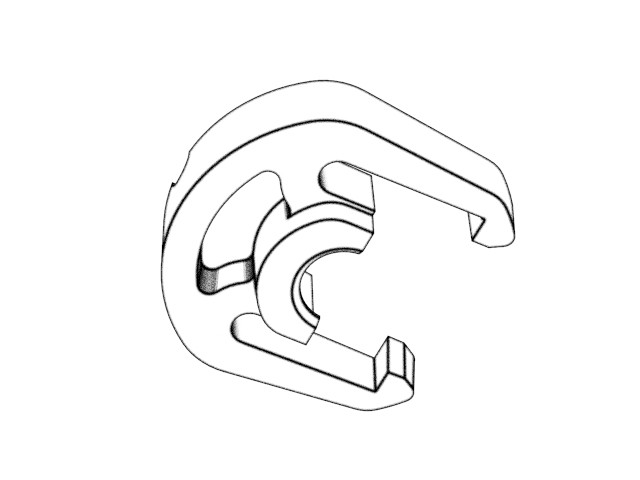

☆ Part material/weight/size: PC/0.22g/8.24 X 8.21 X 2.72mm
☆ Surface finish -- Polished to SPI B-2
☆ Steel of cavity and core: harden with 1*4/S136
Greatly improve the surface smoothness,
anti-wearing and anti-corrosion performance

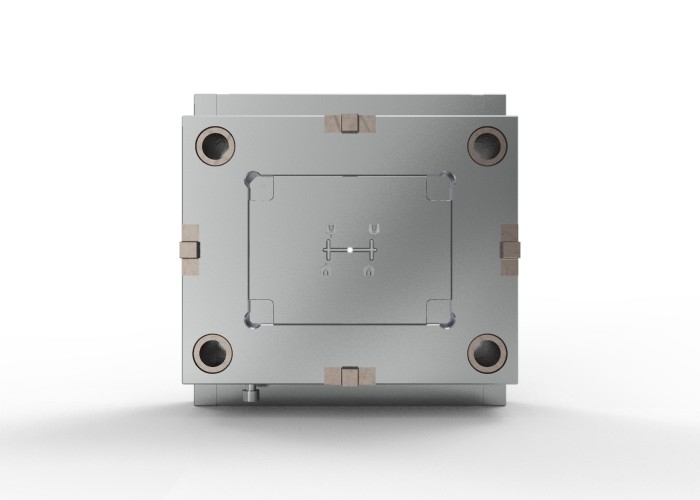

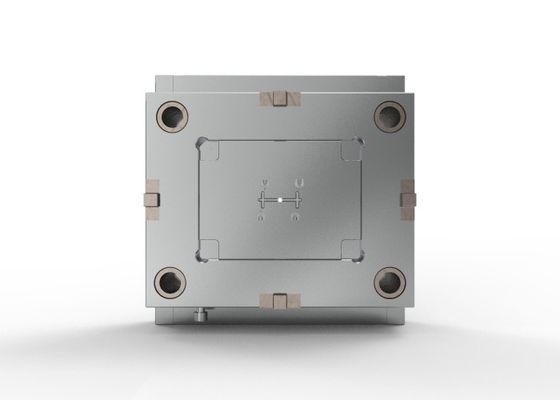

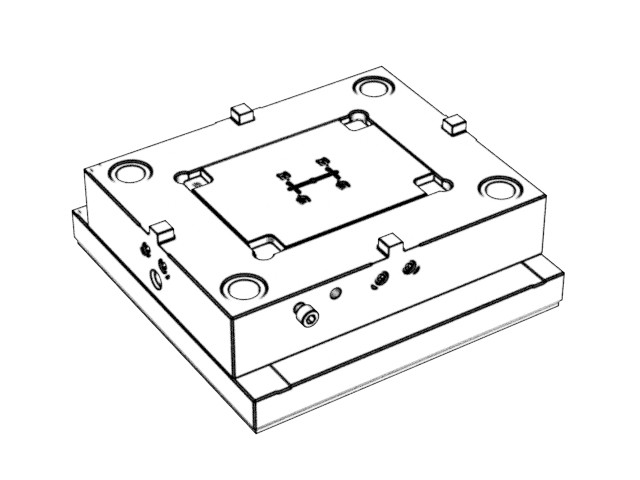

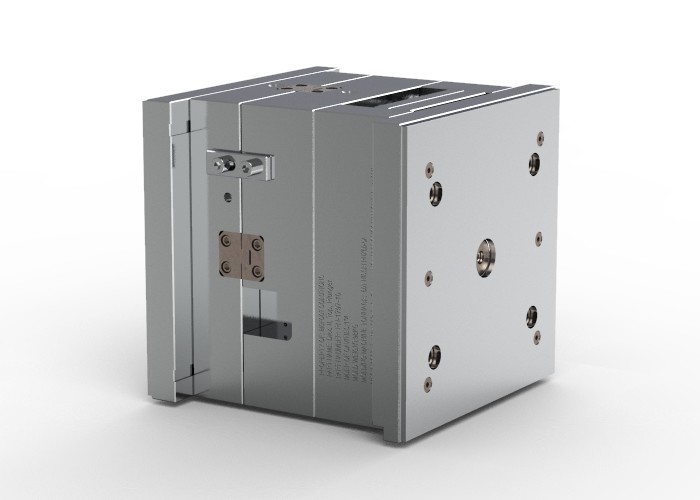

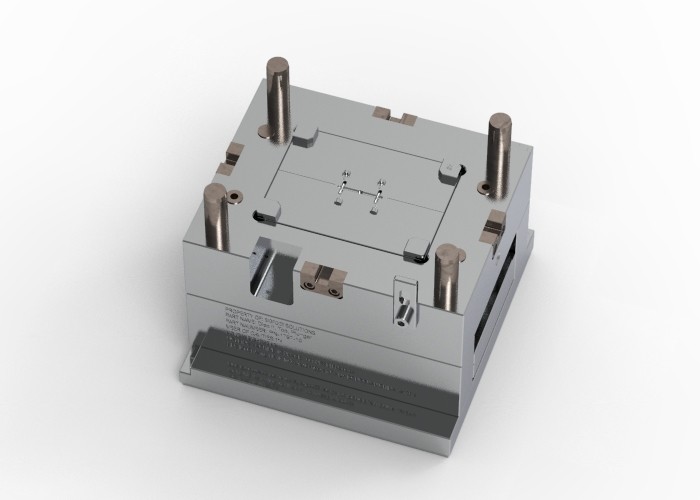

Display diagram
