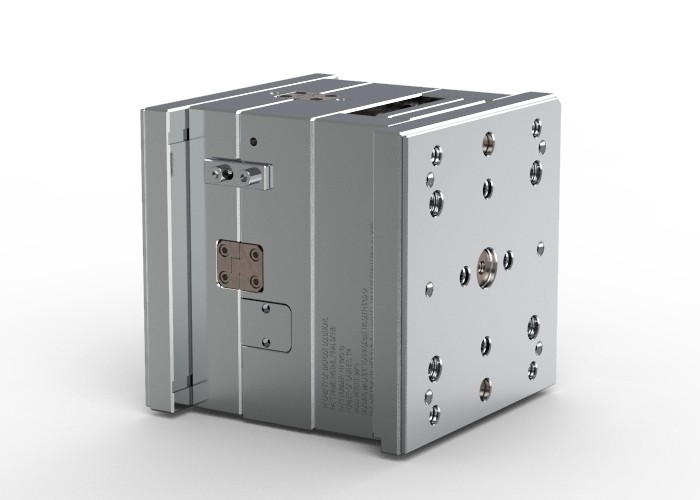

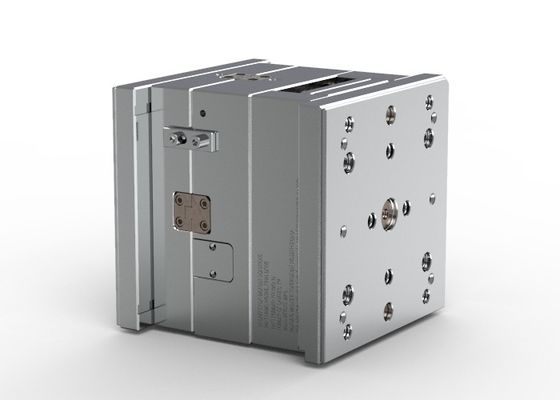

Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D-UG 4.0/ 2D-CAD |
| Mould Life | ≥500000 Shots | Runner | Cold Runner |
| Part Size | 26.39 X 30.51 X 4.00mm | Part Weight | 0.45g |
Product Description

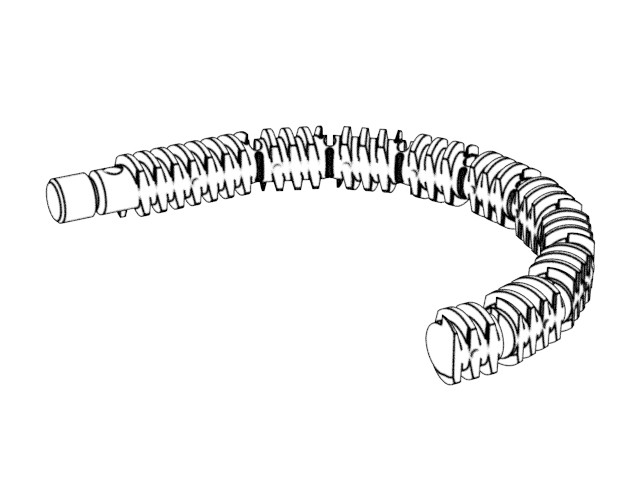

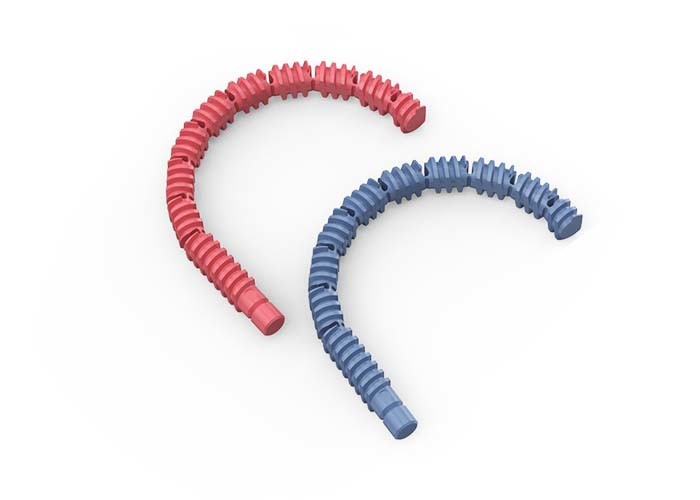

Medical Instruments PN-1913 (1*4)
No.21069
|
[Standard]: LKM CI2025.507070
|
Length | Width | Height | |||
| 250 | 250 | 251 | ||||
[Part material]: PA12+15%GF
[Part weight]: 0.45g
[Part size]: 26.39 X 30.51 X 4.00mm
| [Features]: Auxiliary ejection [Gate]: side gate [Type]: Two-plates mold [IMM tonnage]: 100T |

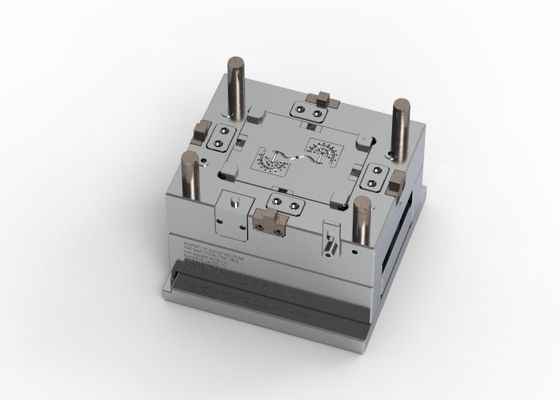

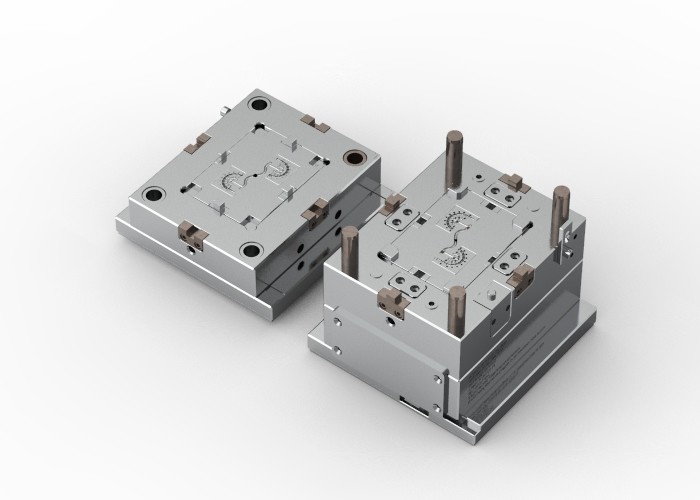

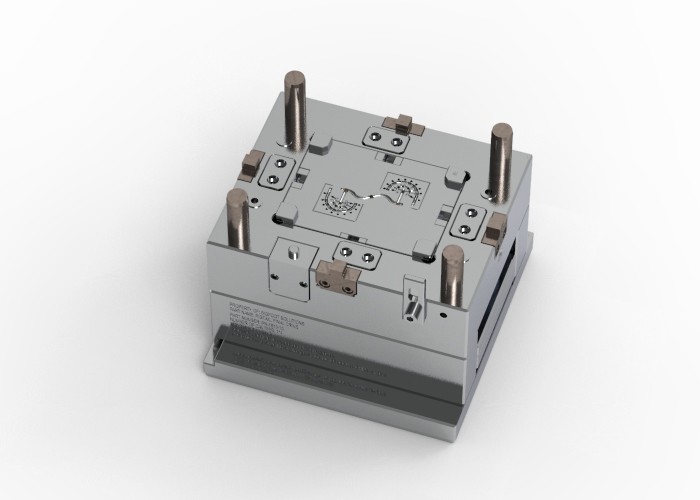

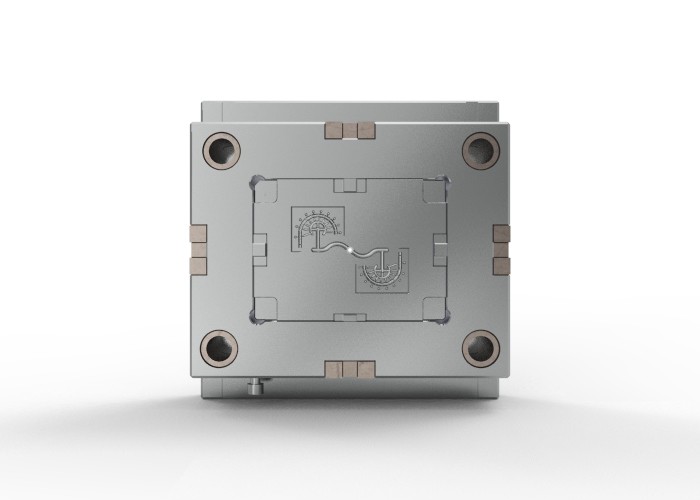

This is a two-plates mold with side gate for easy filling. Mold surface polished to SPI-B1 to improve the glossiness, w/o pits and burrs, so that the molded parts have stable quality and smooth surface, w/o sticking with the mold. Harden the cavity & core with 1*4/S136 to improve the hardness, anti-corrosion and anti-wearing performance |
|||||

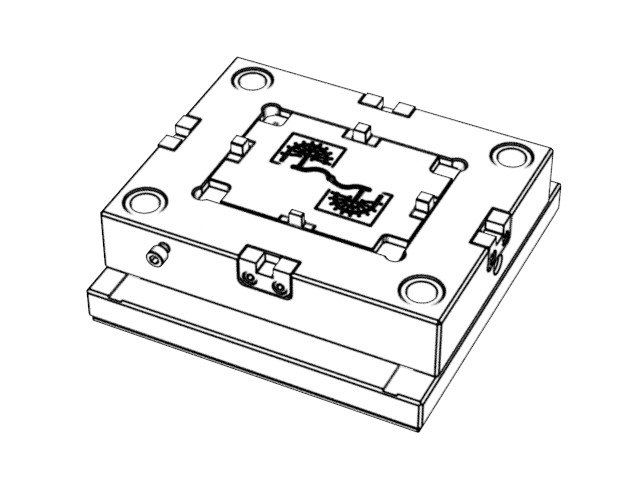

Display diagram
