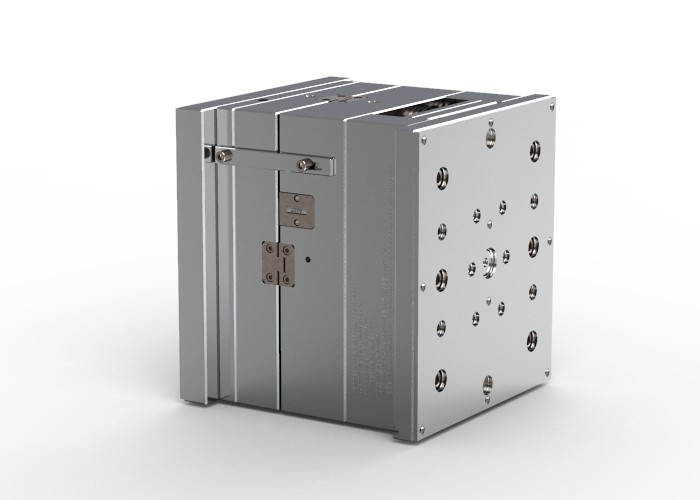

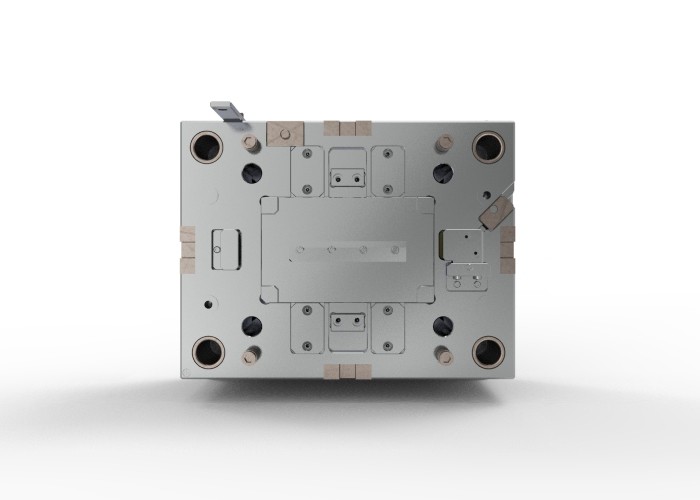

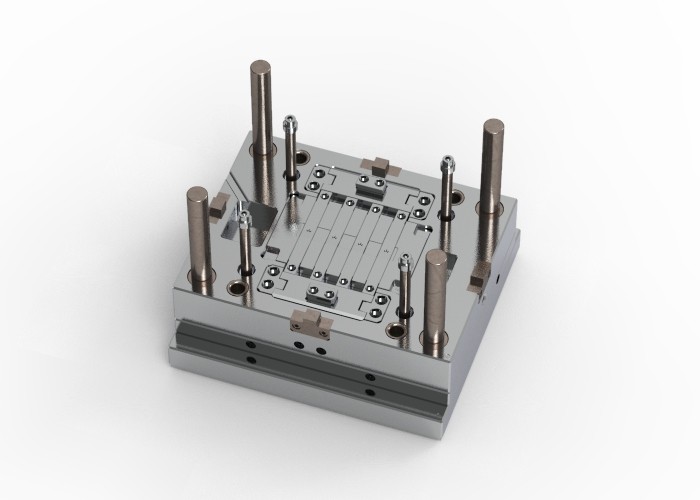

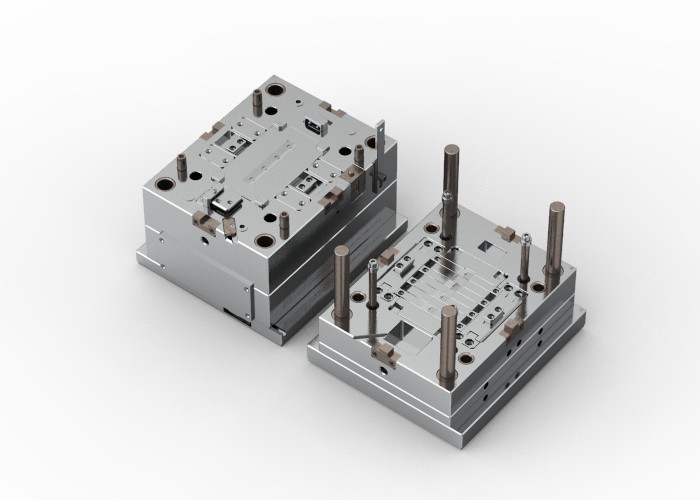

Medical Instrument PN-2105 (1*4) / Three-plates mold / Cold runner No.21071
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 350.000 X 326.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 225kg | Part Weight | 0.12g |
| Type | Three-plates Mold | Slide | 2 |
| Gate | Pin Point Gate | Steel Of Cavity And Core | Harden With 1*4/S136 |
| Harden With 1*4/S136 | PC |
Product Description
Medical Instrument PN-2105 (1*4)
No.21071
| Standard mold base P/N: FCI2735 609080 | |||||
| [Length]: 320mm [Width]: 350mm [H]: 326mm |
[Standard] | [Slide] | |||
| LKM | 2 | ||||
| This is a three-plates mold with hot runner, short cycle time, w/o loss of material. Hot runner ensures melt fill the cavity evenly to obtain parts with stable quality, with low demolding residual stress, and minimized part deformation, tool life up to 500k shots, good for automatic mass production. | |||||
| [Gate]: Pin point gate | [IMM tonnage]: 100T | ||||
| [Part material]: PC |
[Surface finish]: Polished to SPI B-2 |
||||
| [Steel of cavity and core]: harden with 1*4/S136 | |||||
| [Mold net weight]: 225 kg [Part weight]: 0.12g | |||||

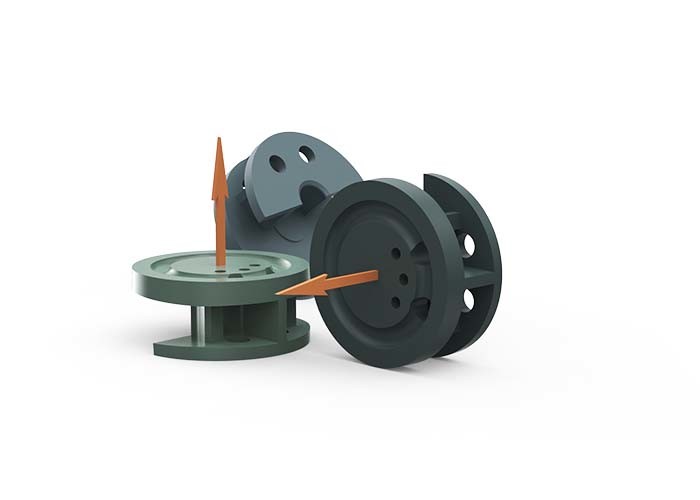

| [Part size]: 9.24 X 9.24 X 4.00mm | |||||

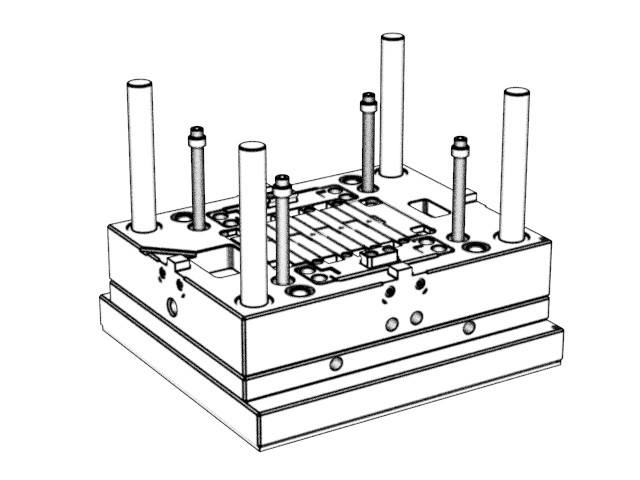

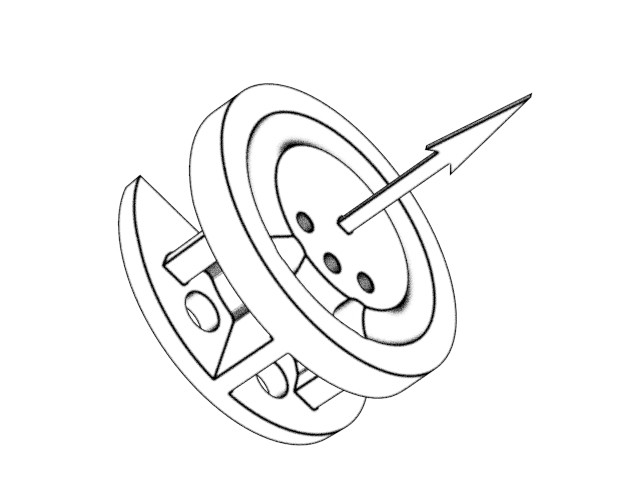

Display diagram
