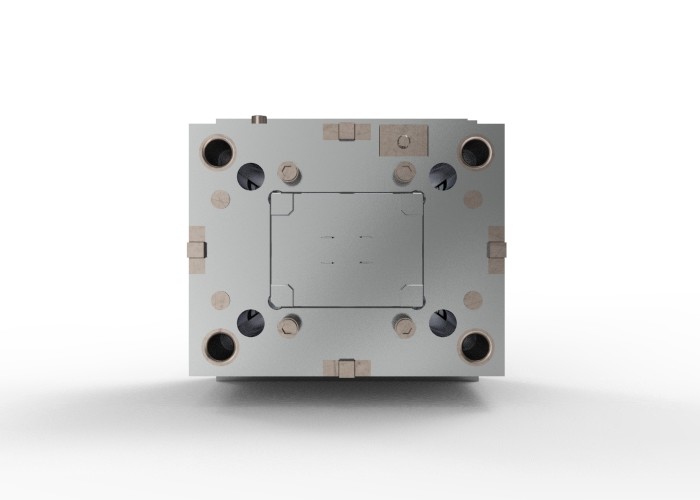

Instrument PN-2044 (1*4) / Two-plates mold / Cold runner No.21072

Place of Origin	China
Brand Name	Chitwing
Certification	ISO 9001:2015
Model Number	CWM21072 Instrument PN-2044
Minimum Order Quantity	1set
Price	Negotiable
Packaging Details	The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time	30 day(s)
Payment Terms	L/C, T/T
Supply Ability	200 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

Instrument PN-2044 (1*4)

No.21072

[Mold base] Standard mold base CI2025.507070				[Standard]: LKM

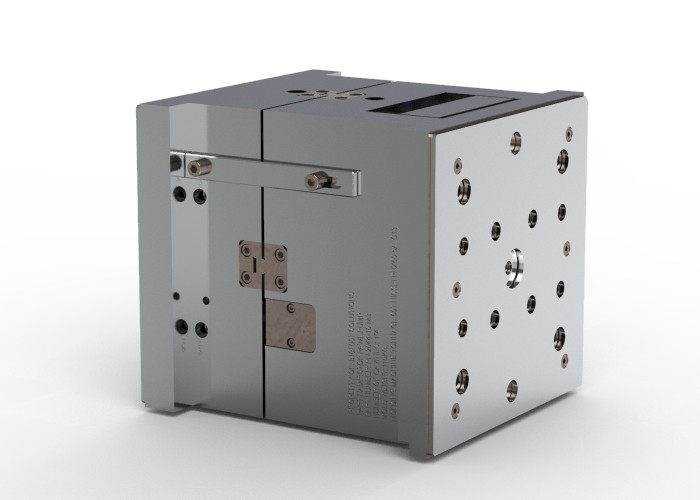

[Length]	250	[Width]	250	[Height]	251
[Gate]: Cashew gate, suitable for TPEE with good toughness; self-degating

Instrument PN-2044 (1*4) / Two-plates mold / Cold runner No.21072 0

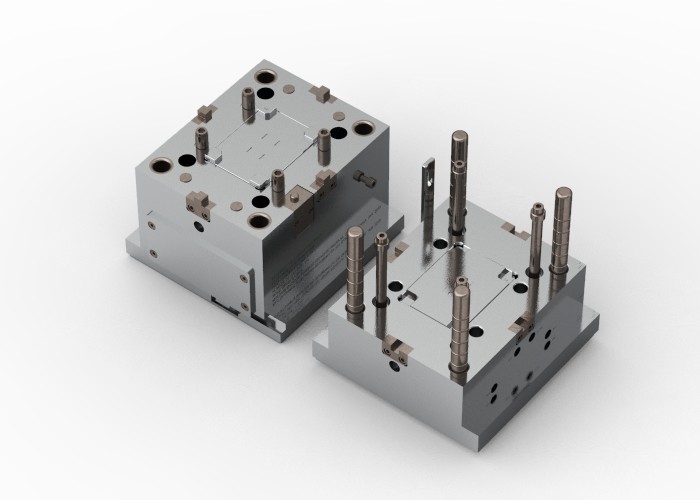

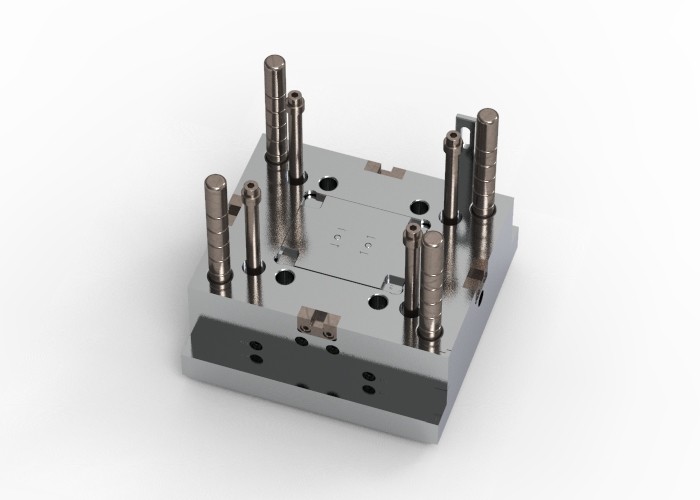

[Type]: Two-plates mold, with simple structure, easy operation, can meet the requirements of automatic demolding. Minimized failures, long tool life, short cycle time and low cost.


[Tool life]: 500k shots
[Steel of cavity] Harden (1*4/S136)	[Steel of core] Harden (1*4/S136)	[Surface finish] Polished to SPI-B1

Instrument PN-2044 (1*4) / Two-plates mold / Cold runner No.21072 1

[Injection/Runner Type]: Cold Runner
[Mold weight]: 102 kg			[IMM tonnage]: 100T

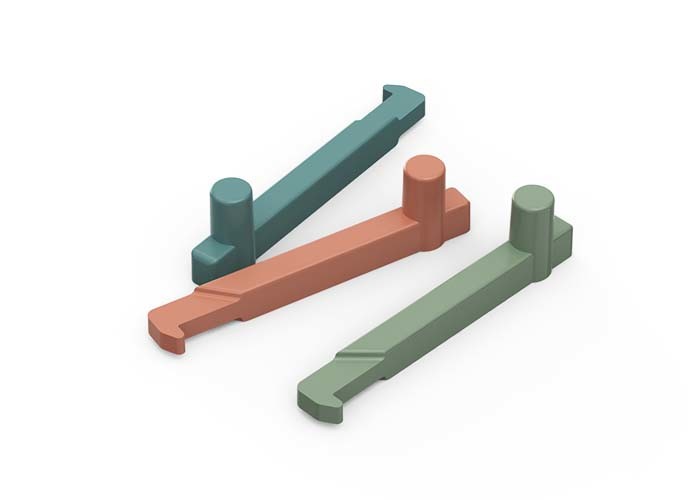

[Part weight]: 0.01g			[Part material]: TPEE

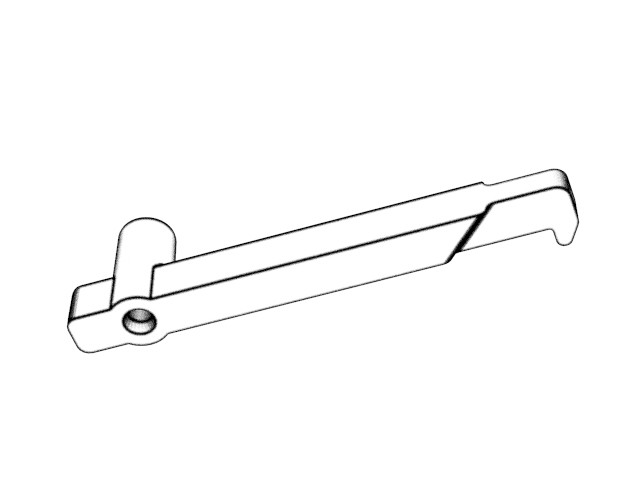

[Part size]: 1.64 X 10.37 X 2.65mm

Instrument PN-2044 (1*4) / Two-plates mold / Cold runner No.21072 2

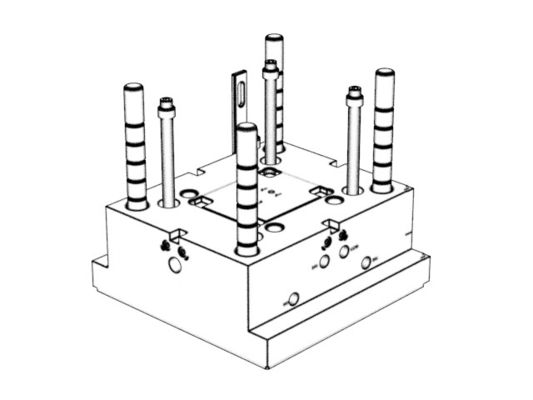

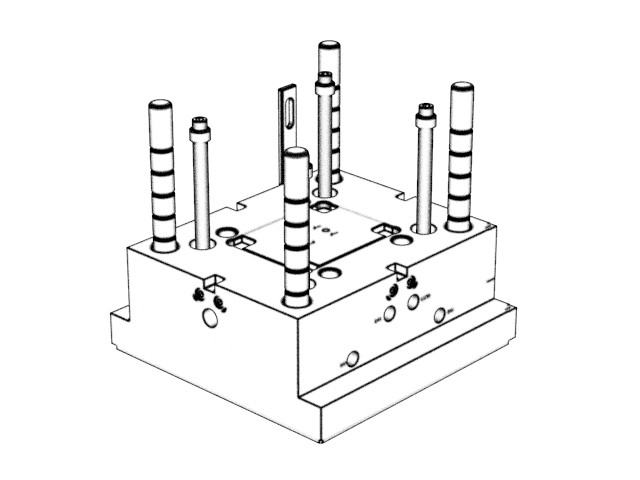

Display diagram
