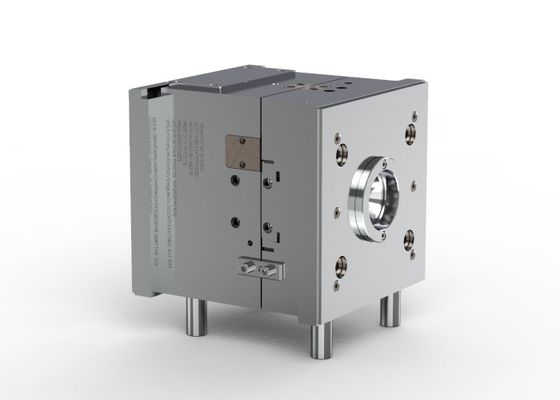

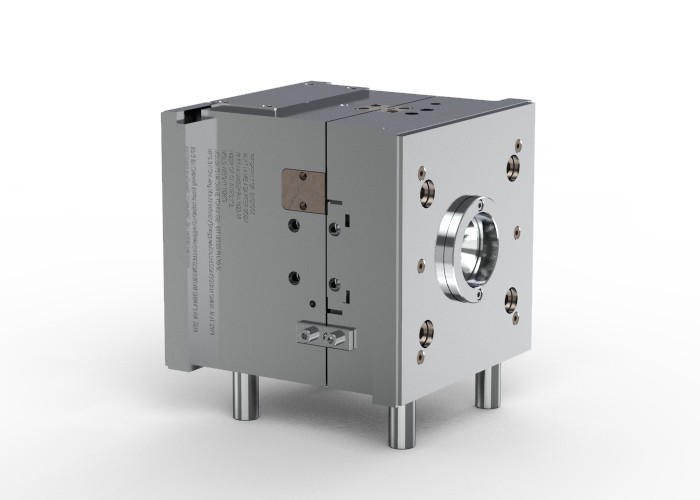

Instrument PN-1822 (1*2) / Two-plates mold / Cold runner No.21073
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | CWM21073 Instrument PN-1822 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 266.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 99kg | Runner Type | Cold Runner |
| Injection Type | Cold Runner | Gate | Cashew Gate |
| Type | Two-plates Mold | Steel Of Cavity And Core | Harden With 1*2/S136 |
Product Description

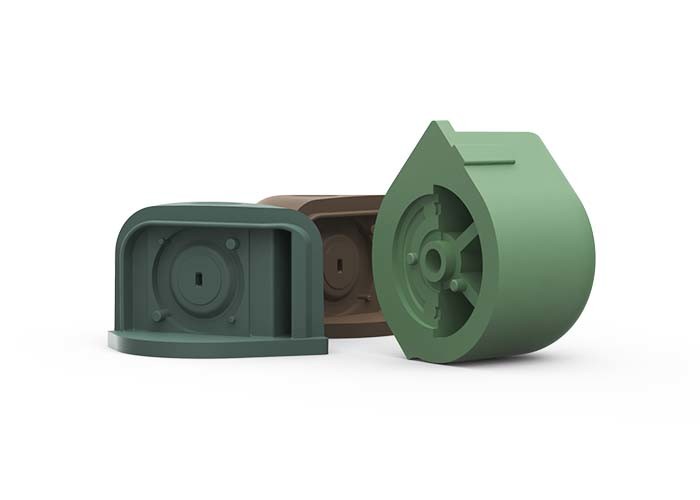

Instrument PN-1822 (1*2)
No.21073
| [Mold base] Standard mold base CI2025.507070 [L] 250mm [W] 250mm [H] 266mm [Standard]: LKM [Net weight]: 99 kg [IMM tonnage]: 100T |
Slide | |||
| 1 | ||||

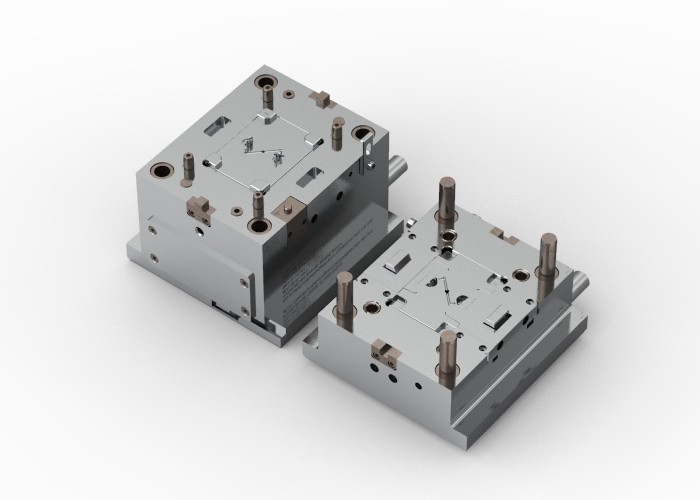

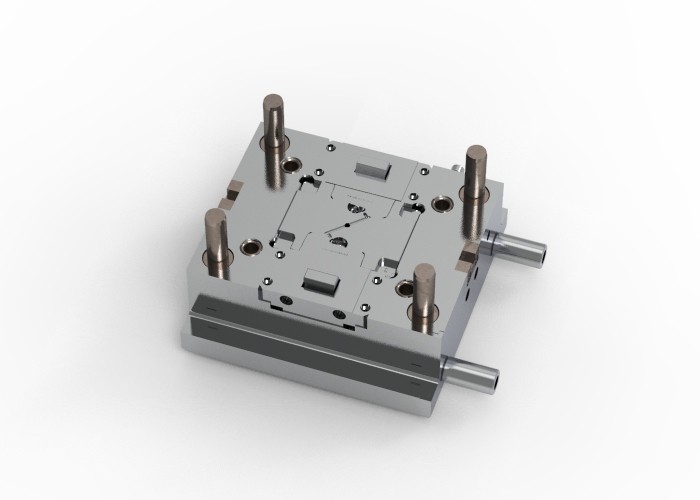

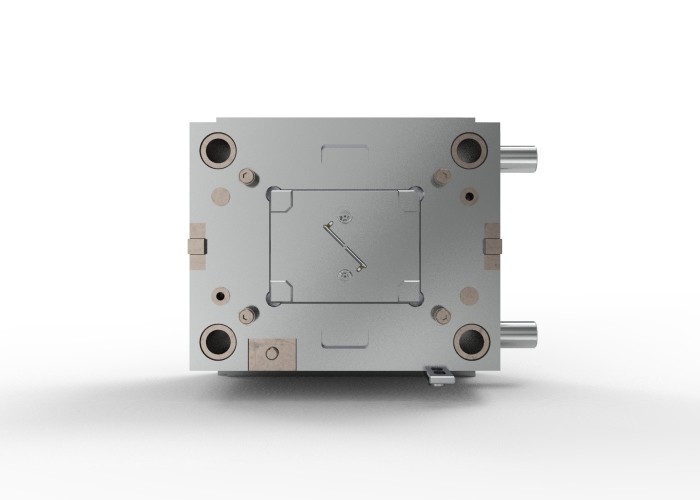

| [Type]: Two-plates mold [Gate]: cashew gate [Injection/Runner Type]: Cold Runner |
||
|
This is a two-plates mold with cashew gate, low cost and self-degating; with minimized cold slug, clear details, w/o flow marks and gas marks |
||
[Surface finish]:
① Partial surfaces polished to SPI B-2
② Partial surfaces polished with MT11003 (RMS 60)
③ Partial surfaces polished to SPI B-1
④ Partial surfaces polished to SPI A-2
|
The mold has higher glossiness, so that the molded parts are smoother, and the cavity has higher anti-wearing performance |
|||
|
|
||||||||

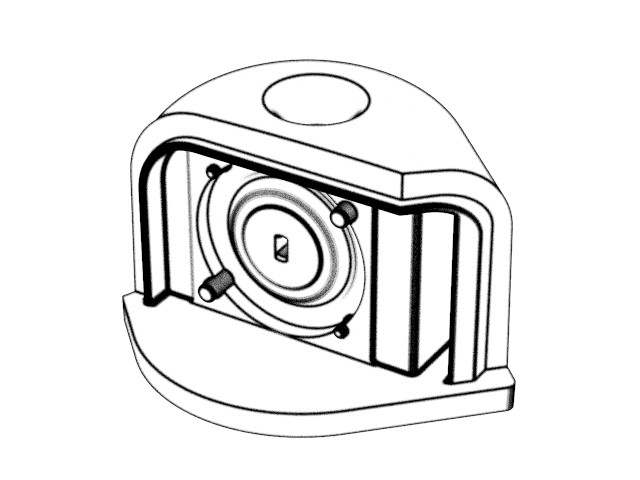

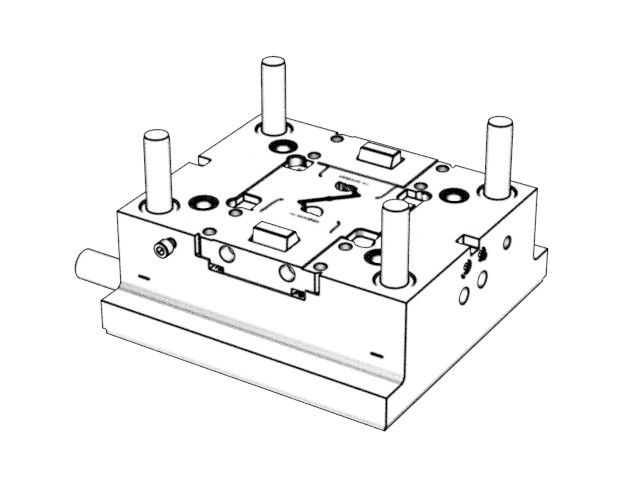

Display diagram
