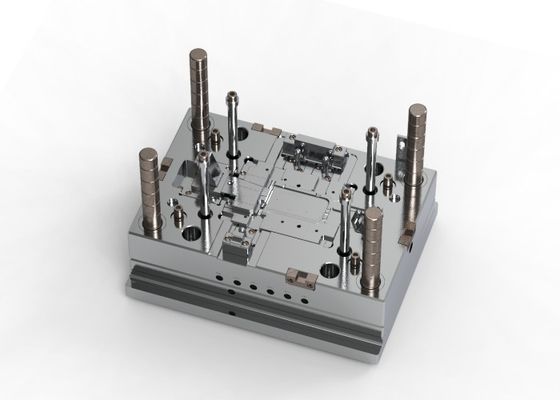

Clamshell Phone Front Shell (1*1) / Three-plates mold / Cold runner No.21871
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 450.000 X 401.000 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 390kg | Standard | LKM |
| Type | Three-plates Mold | Gate | Side Gate |
| Steel Of Cavity & Core | Harden (1*2/S136) | Injection/runner Type | Cold Runner |
| Slide | 6 | Lifter | 10 |
Product Description

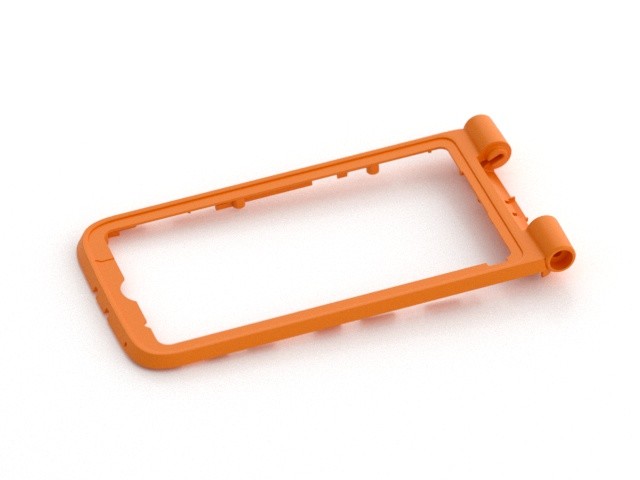

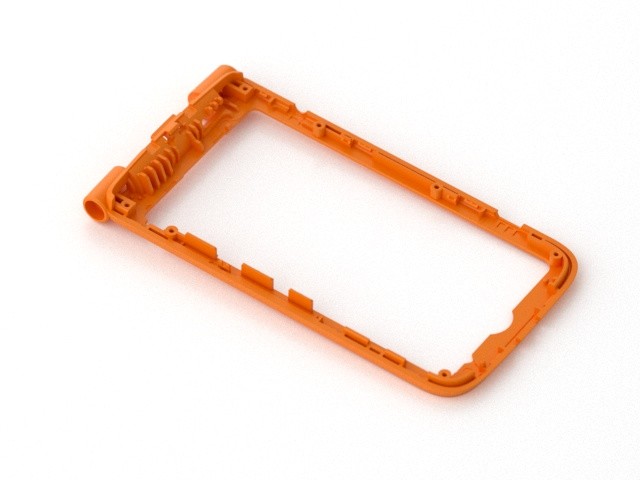

Clamshell Phone Front Shell (1*1)
No.21871
Mold base P/N: DDI3045 709090
| [Mold size] | [Gate] |
[Standard] |
||
| L × W | Height | Side gate | ||
| 350x450 | 401 |
The pin point gate turns to the side gate |
||
| [Tool life] | [Type] | LKM | ||
| ≥ 500K shots | Three-plates mold | |||
| [Part size] | [Part weight] | |||
| L × W | Height | 5g | ||
| 55.55X11.24mm | 108.75mm | |||
| [IMM Tonnage] | [Mold weight] | |||
| 110T | 390kg | |||
☆ Surface finish: A surface EDM with VDI24# so that the mold has a lower roughness, the mold
surface is more smooth, and the molded part is more smooth, without flow marks and gas marks
|
★ Steel of cavity & core: Harden (1*2/S136) ★ Injection/runner type: Cold runner |
|

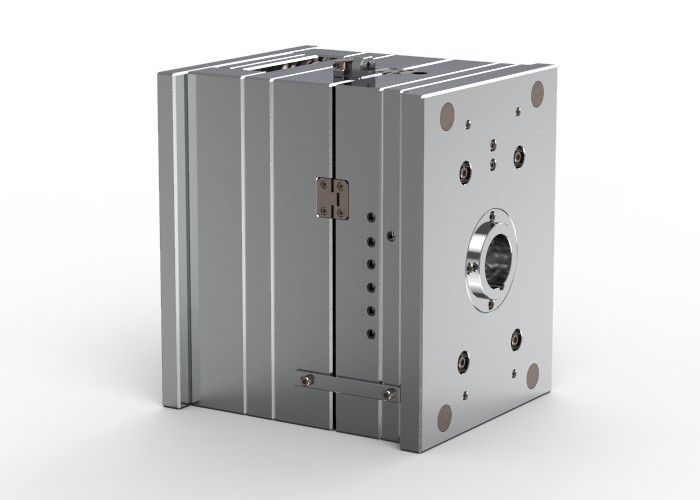

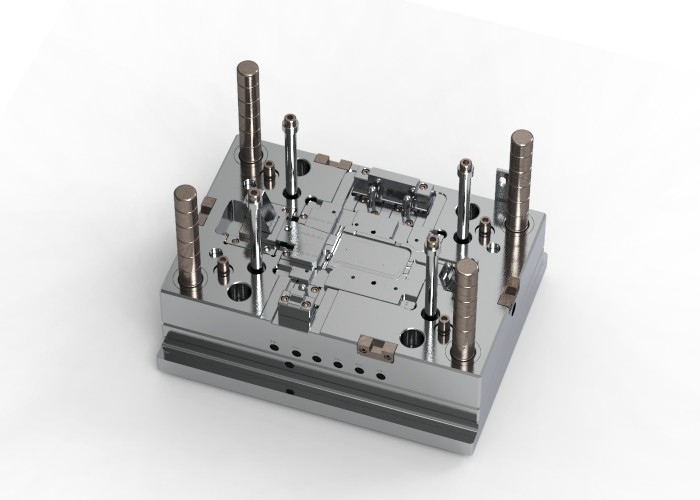

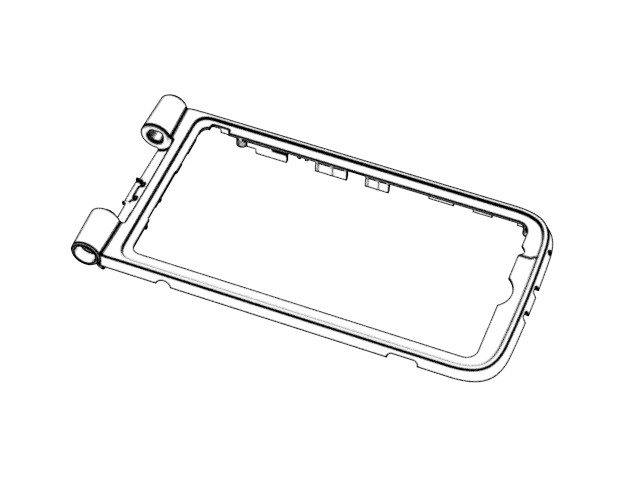

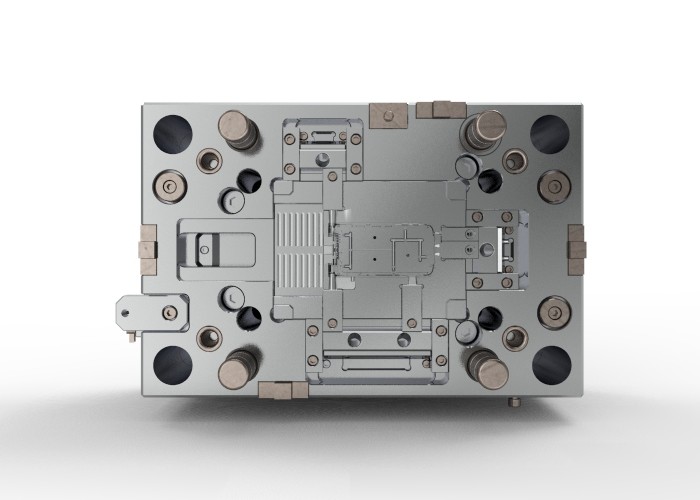

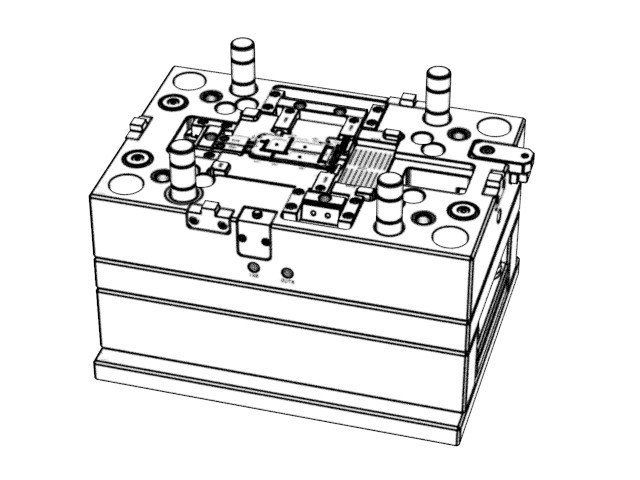

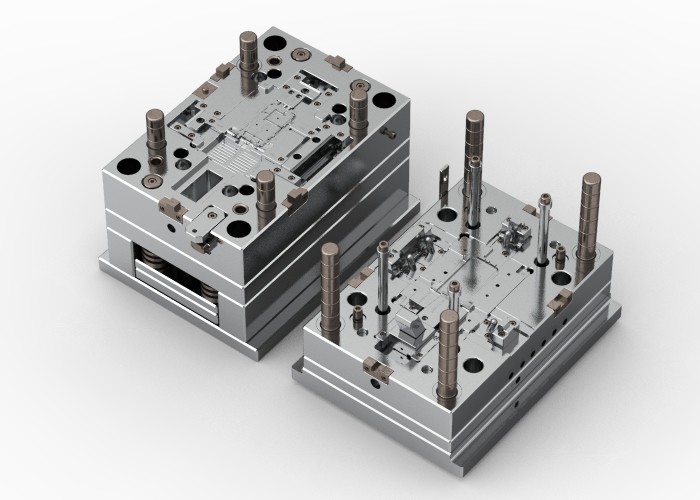

Display diagram
