OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213

  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
  • OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
Place of Origin China
Brand Name Chitwing
Certification ISO 9001:2015
Model Number Earphone Charging Case
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 200 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 250 X 250 X 251 IMM Tonnage 80T
Mold Weight 93KG Design Software 3D:UG 4.0, 2D:CAD
Mould Life ≥500000 Shots Runner Cold Runner
Part Material Translucent PC Cavity Harden With 1*16/S136
Core Harden With 1*16/S136
High Light

80T Precision Injection Molding

,

PC Precision Injection Molding

,

LKM Plastic Injection Molding
Leave a Message
Product Description

Transparent Earphone

Charging Box Light Guide (1*16)

No.24213



Injection/Runner Type: Cold runner

Tool life: 500k shots

Part material: translucent PC



This mold was developed by Chitwing (design and manufacturing), using standard mold base,

LKM standard; the molded part has smooth surface and aesthetic appearance w/o burrs;

with mature processing technology, the mold surface hardness > 600HV, with high

anti-wearing and anti-fatigue performance; the mold is designed with cavity ejection pin to

achieve higher demolding efficiency



OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 0

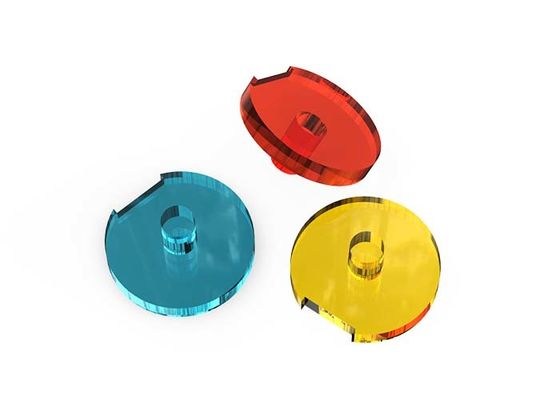

Mold size: 250 X 250 X 251mm, net weight 93kg, fit 80T machine; the part weight is only 0.2g,

and the part size is (L) 9.6 * (W) 8.6 * (H) 5.2mm



OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 1

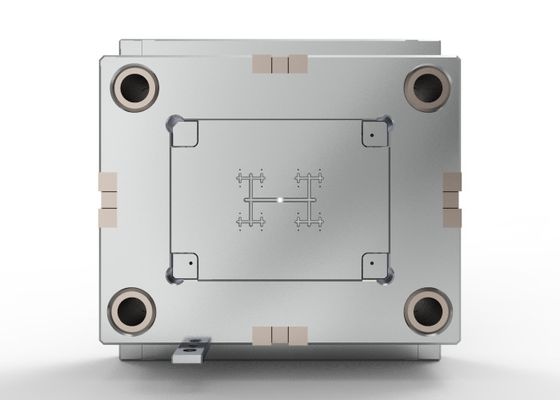

  Surface finish   A surface polished to SPI-A1
  Inner surface EDM with VDI21# (Makino)









OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 2

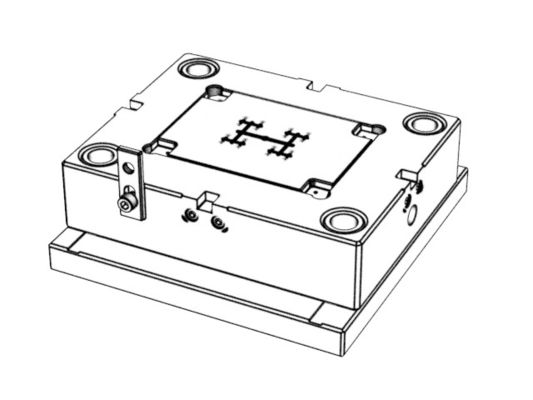

Cavity Harden with 1*16/S136
Core



IMM tonnage: 80T

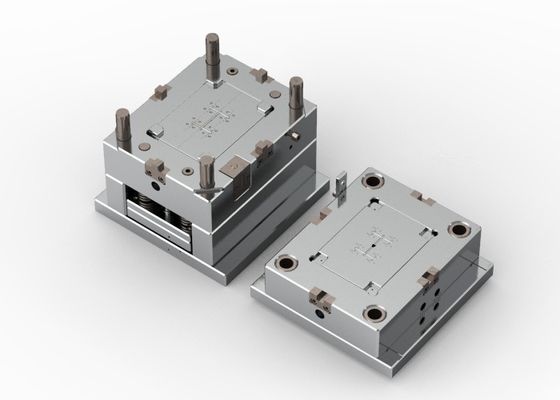

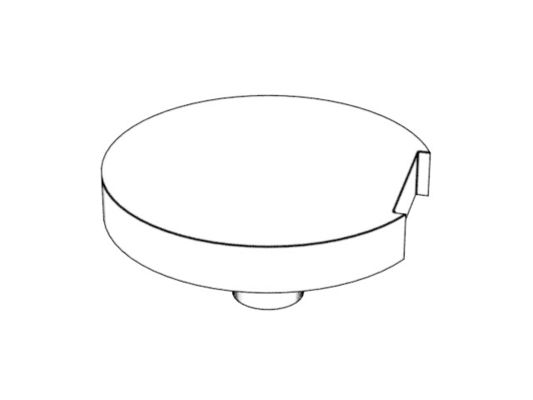

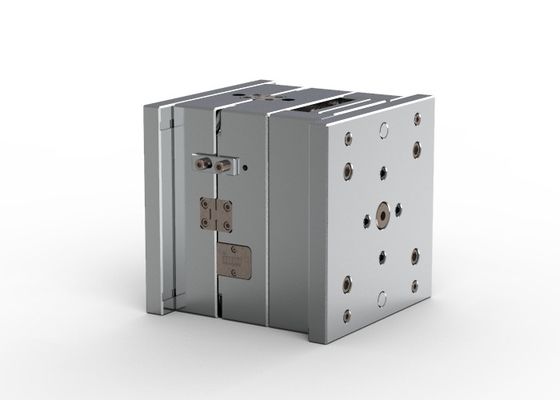

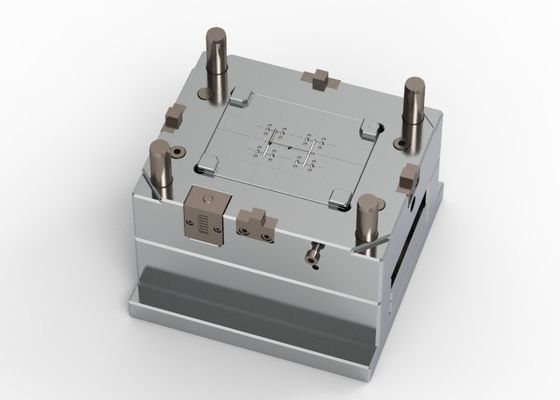

Display diagram



OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 3OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 4OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 5OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213 6
