Earphone left middle shell / Cold runner / Three-plates mold No.24207
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides | Size | 400*600*416mm |
|---|---|---|---|
| Mold Weight | 635（kg） | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | 500000 Shots | Runner | Cold Runner |
| Part Material | PC+ABS | ||
| High Light | 500k Shots 3 Plate Mold,LKM 3 Plate Mold,Cold Runner 3 Plate Mold |
||
Product Description

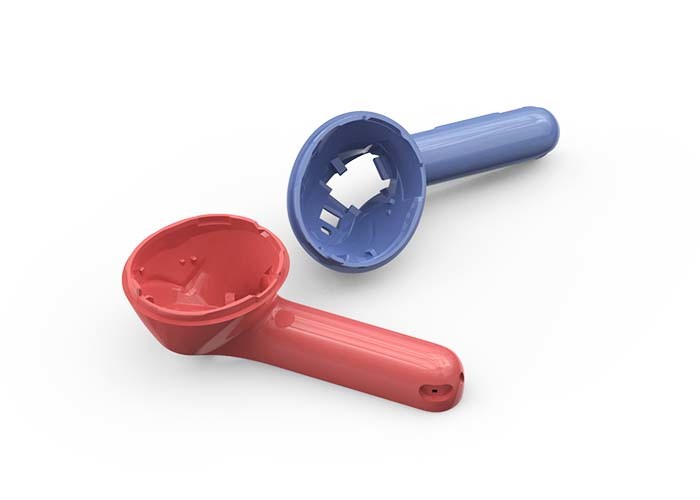

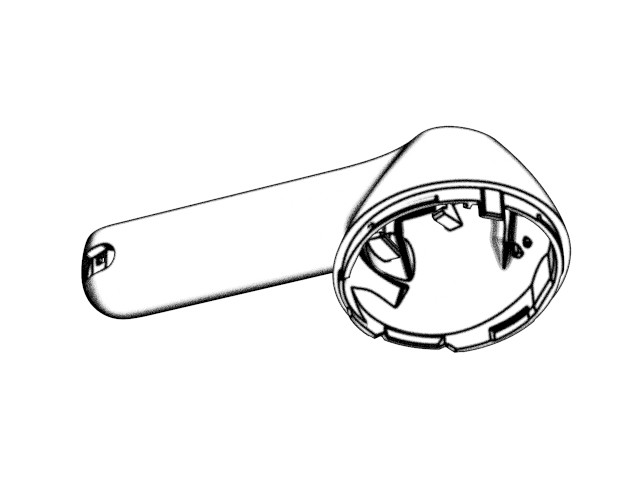

Earphone left middle shell
No.24207

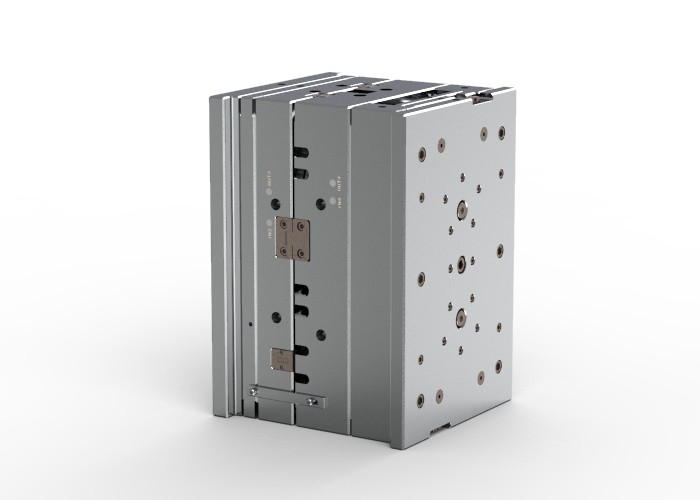

Standard mold base P/N FCI3560 A80-B120-C100
| Length | Width | Height | Net weight | IMM tonnage |
| 400 | 600 | 416 | 635kg | 100T |
| Part weight | Part size |
| 0.7g | 16.82 X 35.52 X 11.81mm |
☆ Gate:Pin point gate | ☆ Injection/runner type:Cold runner
| Surface finish | A surface polished to SPI-A1 |
| Steel of cavity and core | Harden (1*2/S136) |

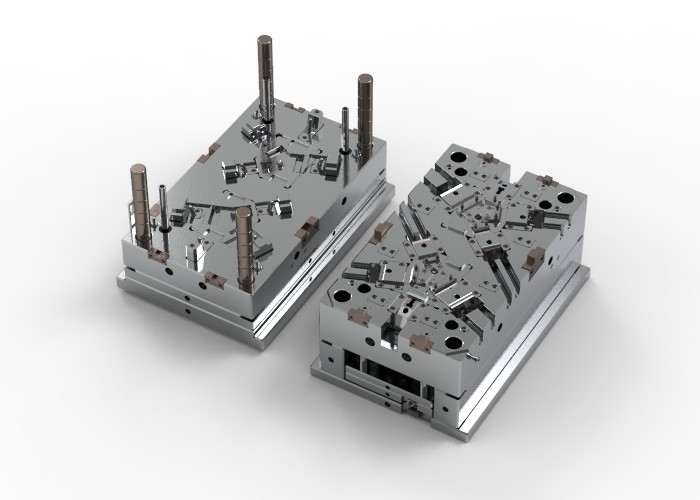

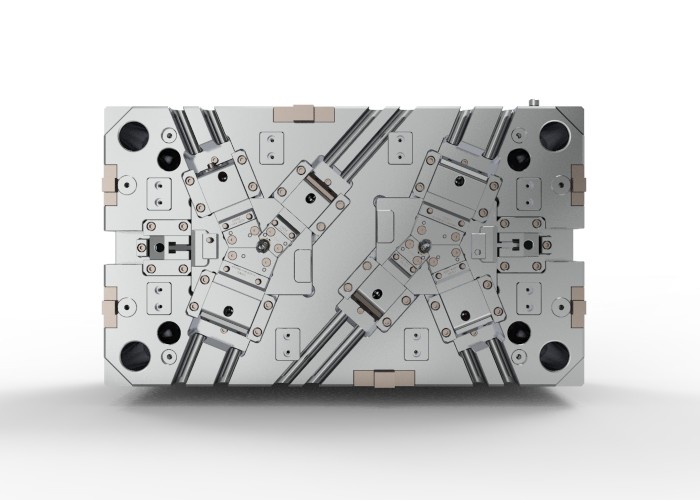

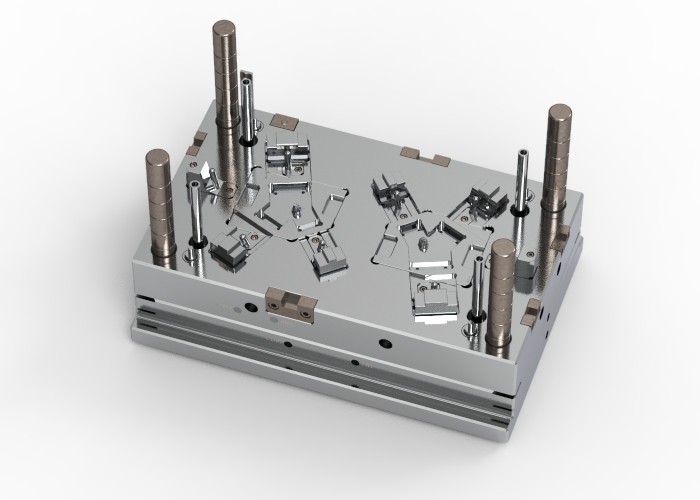

| Type | Three-plates mold |
| Standard | LKM |
☆ Part material:PC+ABS | ☆ Tool life:500K shots | ☆ Features:4 slides

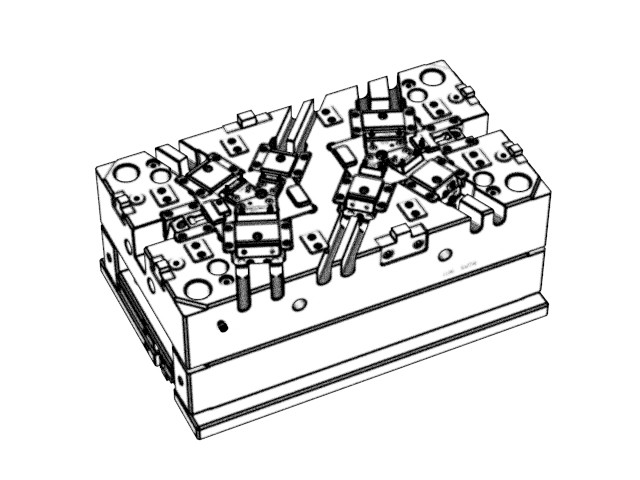

Display diagram
