OEM / ODM : Plastic Injection Molds / Earphone left battery bracket (1*8) / hot sprue / cold runner. No.24209
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 250 X 241 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 79KG | Part Weight | 0.1g |
| Part Material | PC+ABS | Type | Two-plates Mold |
| Surface Finish | Polishing | Steel Of Cavity And Core | Harden With 1*8/S136 |
| Gate | Side Gate | Design Software | 3D-UG 4.0/ 2D-CAD |
| Runner System | Hot Sprue / Cold Runner | Molding Conditions | Barrel Temperature + Injection Pressure |
| High Light | Battery Bracket Precision Injection Molding,high precision injection molding,LKM high precision injection molding |
||
Product Description
Earphone left
battery bracket (1*8)
No.24209
| Mold information | Size | 250 X 250 X 241mm | ||
| Gate | Side gate | |||
| Standard mold base P/N: CI2025.507070. | Tool life | 500k shots | ||
|
Mold details |
Type | Two-plates mold |
| Part material | PC+ABS | |
| Surface finish | Polishing | |
| Standard | LKM | |
| Steel of cavity and core | Harden with 1*8/S136 | |
| Injection/runner type |
Cold runner |
| Mold net weight | IMM tonnage: 100T |
| 79kg |
| Part weight | Part size: 11.68 X13.34 X4.07mm |
| 0.1g |

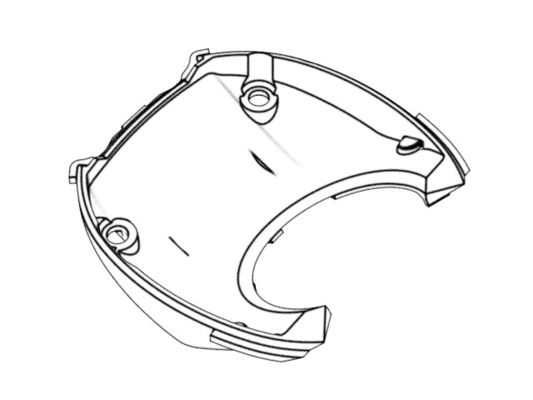

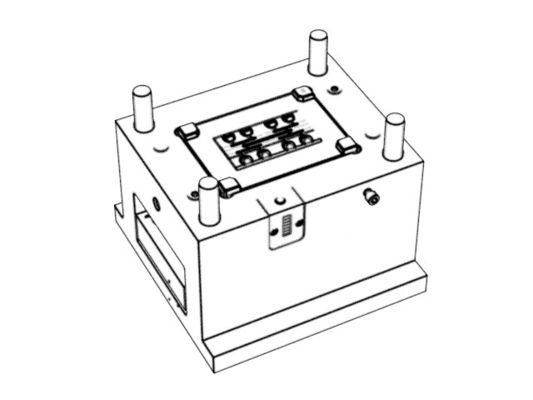

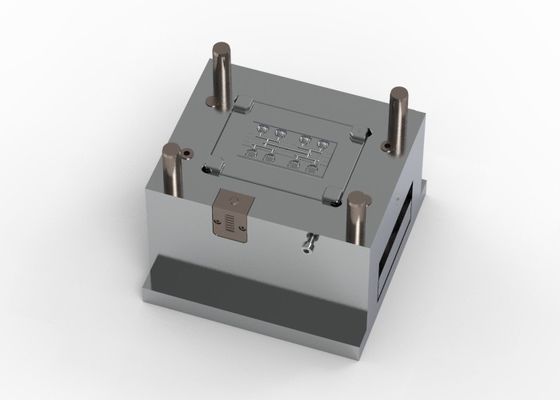

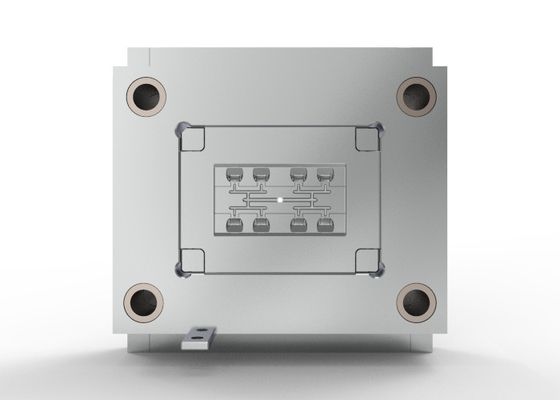

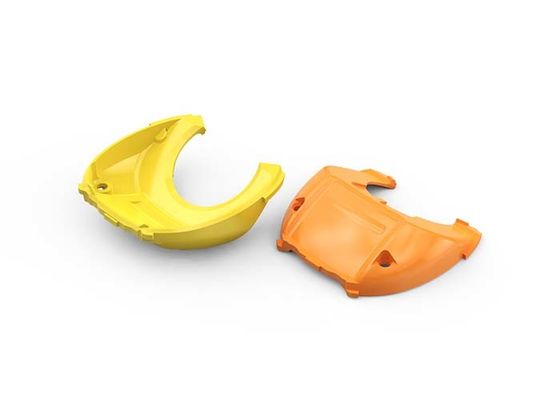

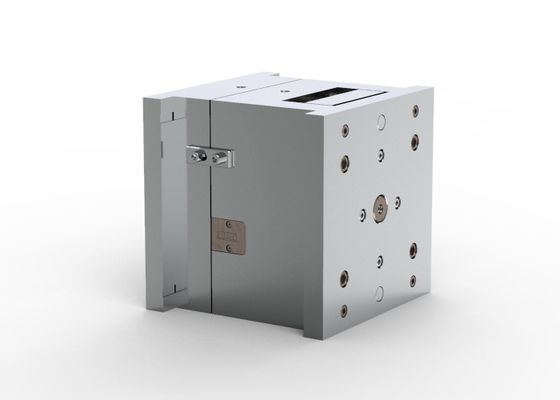

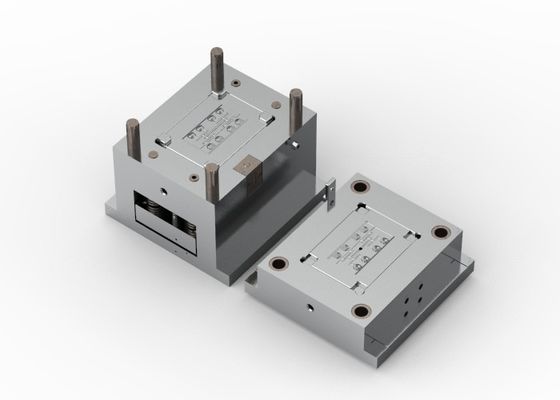

Display diagram
