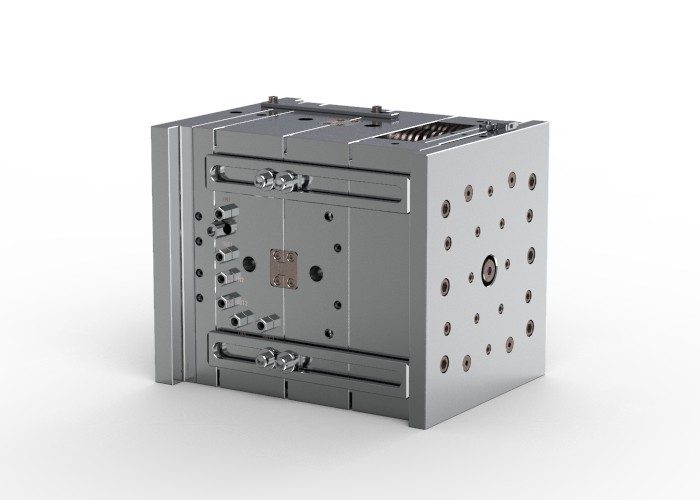

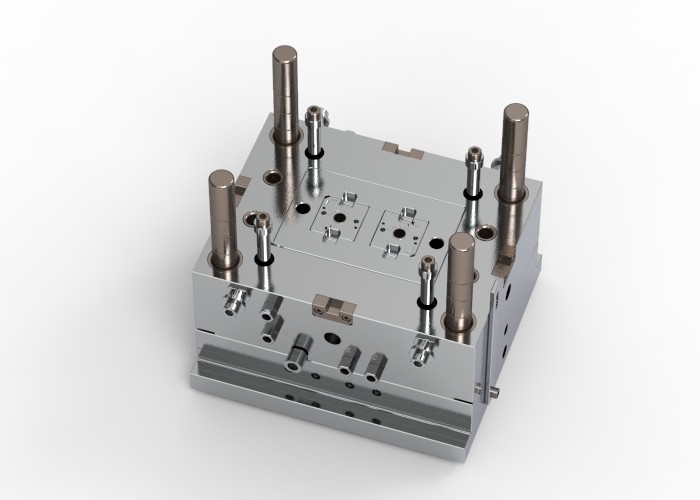

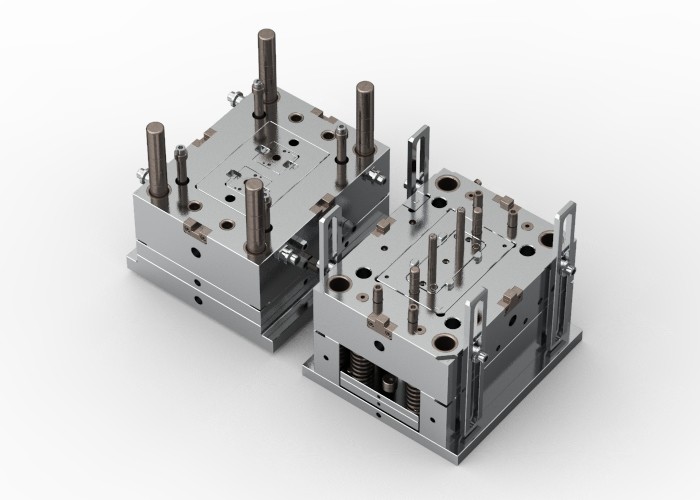

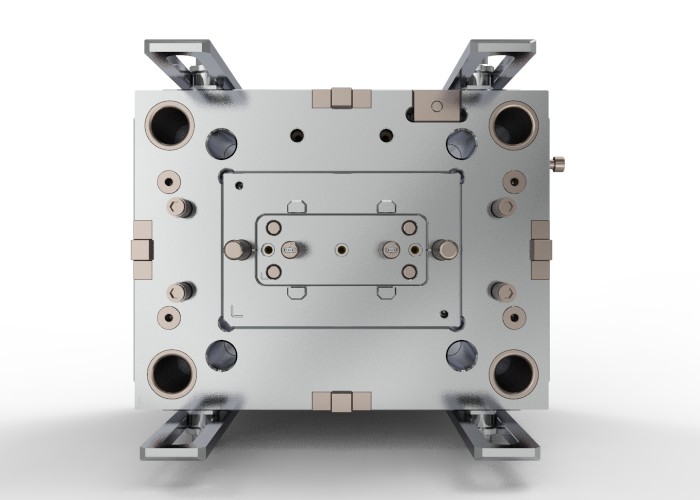

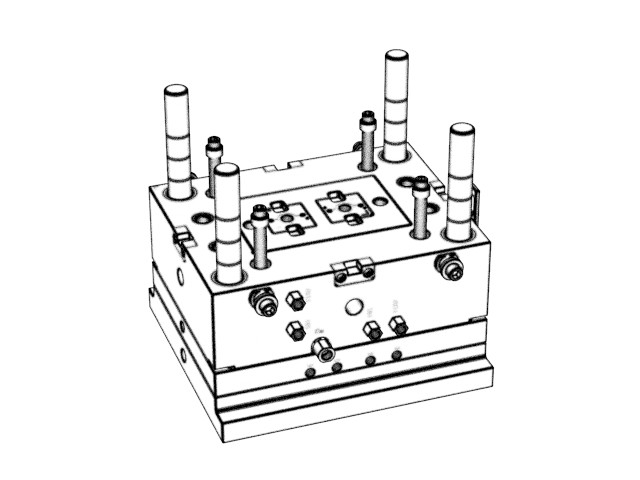

Battery Housing (1*2) / Three-plates mold / Cold runner No.24500
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | E -cigarettes |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320 X 350 X 426 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 294KG | Design Software | 3D-UG 4.0/ 2D-CAD |
| Mould Life | ≥500000 Shots | Runner | Cold Runner |
| Part Size/Weight | Φ16.0*90.0mm / 4.98g | Part Material | PC+ABS |
| Mold Type | Consumer Electronics Molds |
Product Description

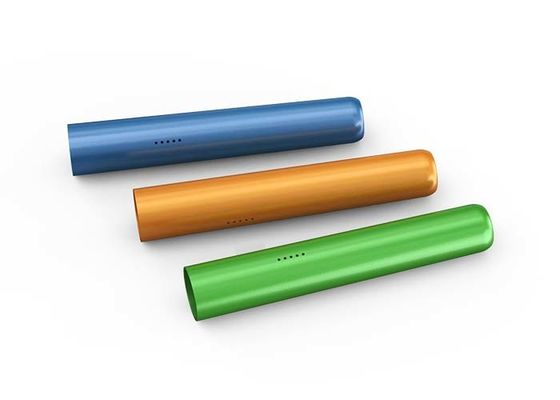

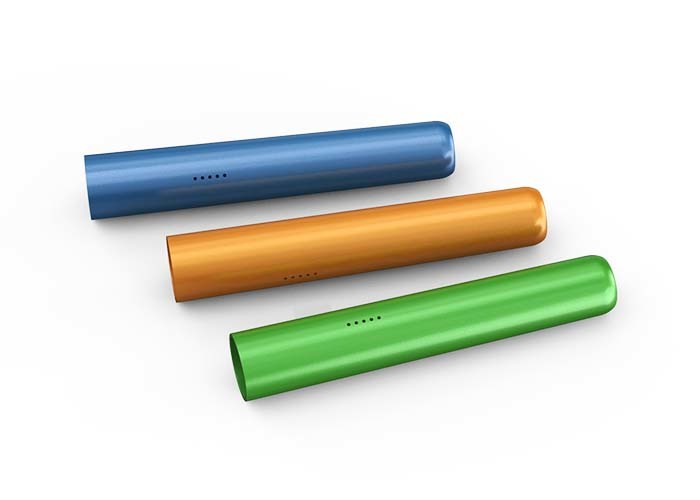

Battery Housing (1*2)
No.24500
Custom mold base P/N: FCI3527.110100105
Gate: tab gate (the pin point gate turns to the side gate)
| Mold size/net weight | IMM tonnage 110T | ||||
| 320 X 350 X 426mm/294kg |
| Part size/weight | |||||
| Φ16.0*90.0mm / 4.98g |
|
|
|
|
| The mold is designed with tab gate, the pin point gate turns to the side gate. The mold surface polished to 1000# sandpaper to have better physical properties. Harden the cavity and core with 1*2/S136 to enhance the hardness and anti-wearing performance and improve the tool life up to 500k shots; more suitable for mass production. | |||||||

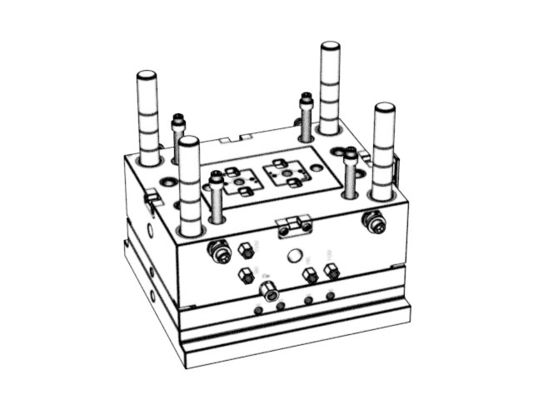

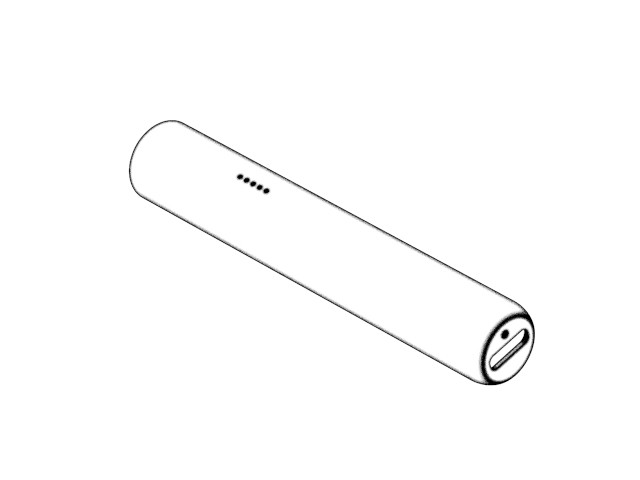

Display diagram
